VOLTCRAFT GOS-632 FG Oscilloscope with Frequency Generator User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your VOLTCRAFT GOS-632 FG Oscilloscope with Frequency Generator. Please read this manual thoroughly before using the device and keep it for future reference. The GOS-632 FG is a 30 MHz dual-channel analog oscilloscope integrated with a frequency generator, designed for various electronic measurement and testing applications.

2. Safety Instructions

Always observe the following safety precautions to prevent electric shock, injury, or damage to the instrument:

• Power Source: Connect the instrument only to a power source with the specified voltage and frequency.
• Grounding: Ensure the instrument is properly grounded to prevent electric shock.
• Ventilation: Do not block ventilation openings. Ensure adequate airflow to prevent overheating.
• Environment: Operate the oscilloscope in a dry, clean environment, away from direct sunlight, high temperatures, and excessive dust or humidity.
• Probes: Use only probes rated for the voltage and frequency being measured. Ensure probes are in good condition.
• Servicing: Refer all servicing to qualified service personnel. Do not attempt to open or repair the instrument yourself.
• Liquid Contact: Avoid contact with liquids. If liquid enters the device, disconnect power immediately and have it inspected by a qualified technician.

3. Package Contents

Please check the package contents upon receipt. If any items are missing or damaged, contact your dealer immediately.

• VOLTCRAFT GOS-632 FG Oscilloscope with Frequency Generator
• Power Cord
• Two (2) Oscilloscope Probes (1x/10x switchable)
• User Manual (this document)

4. Product Overview

The VOLTCRAFT GOS-632 FG is a robust analog oscilloscope designed for reliable waveform analysis. Below is a general view of the device.

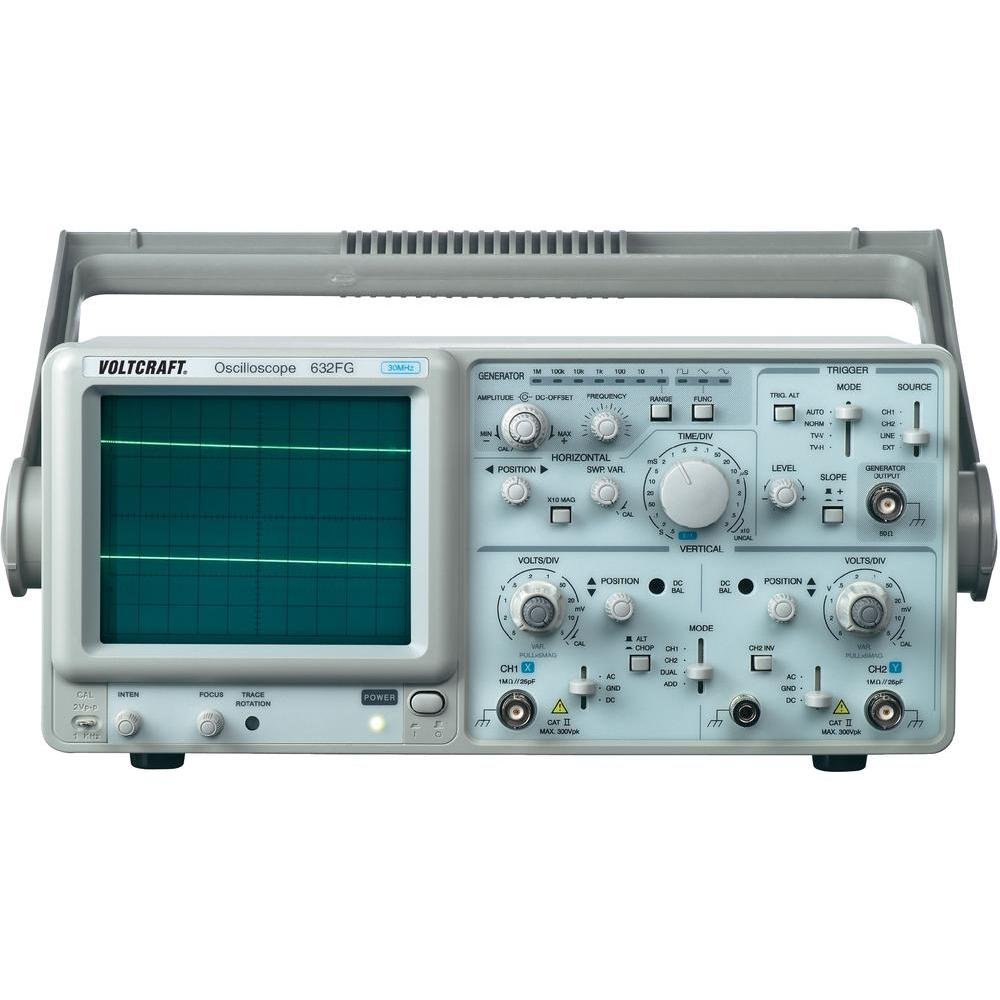

Figure 4.1: Front view of the VOLTCRAFT GOS-632 FG Oscilloscope. This image shows the main display, control knobs, and input connectors for the two channels and the frequency generator output.

4.1. Front Panel Controls

• CRT Display: Shows the waveform.
• CH1/CH2 Input: BNC connectors for connecting oscilloscope probes.
• VOLTS/DIV: Adjusts the vertical sensitivity for each channel.
• POSITION: Adjusts the vertical position of the waveform.
• TIME/DIV: Adjusts the horizontal sweep speed.
• TRIGGER LEVEL: Sets the voltage level at which the sweep starts.
• MODE: Selects trigger source (CH1, CH2, EXT, LINE).
• FREQUENCY GENERATOR OUTPUT: BNC connector for the integrated signal generator.
• FREQUENCY/AMPLITUDE: Controls for the frequency generator output.
• POWER Switch: Turns the device on or off.

4.2. Rear Panel Connections

• AC Power Input: Connector for the power cord.
• Ground Terminal: For additional grounding if required.

5. Setup

1. Unpacking: Carefully remove the oscilloscope from its packaging. Retain the packaging for future transport.
2. Placement: Place the oscilloscope on a stable, level surface with adequate ventilation around the unit.
3. Power Connection: Connect the supplied power cord to the AC power input on the rear panel and then to a grounded electrical outlet.
4. Probe Connection: Connect the oscilloscope probes to the CH1 and/or CH2 BNC input connectors on the front panel. Ensure a secure connection.
5. Probe Compensation: Before taking measurements, compensate your probes. Connect the probe tip to the probe compensation output (usually a square wave signal on the front panel) and adjust the probe's compensation trimmer until a flat-top square wave is displayed.

6. Operating the Oscilloscope

6.1. Basic Measurement

1. Power On: Press the POWER switch to turn on the oscilloscope. Allow a few minutes for the display to stabilize.
2. Input Signal: Connect the probe to the circuit point you wish to measure.
3. Vertical Adjustment (VOLTS/DIV & POSITION):
   • Select the appropriate VOLTS/DIV setting to display the waveform within the screen.
   • Use the POSITION knob to center the waveform vertically.
4. Horizontal Adjustment (TIME/DIV & POSITION):
   • Select the appropriate TIME/DIV setting to display several cycles of the waveform horizontally.
   • Use the horizontal POSITION knob to move the waveform left or right.
5. Trigger Setup:
   • Set the TRIGGER MODE (e.g., AUTO, NORM).
   • Adjust the TRIGGER LEVEL knob until a stable waveform is displayed.
   • Select the TRIGGER SOURCE (e.g., CH1, CH2).

6.2. Using the Frequency Generator

1. Connect Output: Connect a BNC cable from the FREQUENCY GENERATOR OUTPUT to the circuit or device under test.
2. Set Frequency: Use the FREQUENCY control to select the desired output frequency.
3. Set Amplitude: Use the AMPLITUDE control to adjust the output signal strength.
4. Waveform Selection: If available, select the desired waveform type (e.g., sine, square, triangle).

7. Maintenance

• Cleaning: Disconnect the power cord before cleaning. Use a soft, damp cloth with a mild detergent to clean the exterior. Do not use abrasive cleaners or solvents.
• Storage: When not in use for extended periods, store the oscilloscope in a dry, dust-free environment.
• Calibration: For accurate measurements, periodic calibration by qualified personnel is recommended.

8. Troubleshooting

9. Specifications

10. Warranty and Support

VOLTCRAFT products are designed for quality and reliability. For information regarding warranty terms, technical support, or service, please refer to the warranty card included with your product or visit the official VOLTCRAFT website. Do not attempt to repair the device yourself, as this may void your warranty.

For further assistance, please contact your local VOLTCRAFT distributor or customer service center.
