Hotpoint Door Trim C00200387 Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, maintenance, and troubleshooting of your Hotpoint Door Trim, model C00200387. This genuine replacement part is designed to fit various Hotpoint appliances, including TL Series tumble dryers, WD Series washer dryers, and WM Series washing machines. Please read this manual carefully before proceeding with installation to ensure safe and correct usage.

2. Setup and Installation

Before beginning any installation, ensure the appliance is completely disconnected from the mains power supply to prevent electric shock. It is recommended to wear appropriate safety gloves during the installation process.

2.1 Tools Required

• Screwdriver (Phillips or flathead, depending on existing fasteners)
• Pry tool (optional, for careful removal of old trim)

2.2 Installation Steps

1. Preparation: Unplug the appliance from the wall socket. Open the appliance door fully.
2. Remove Old Trim: Carefully locate the screws or clips holding the existing door trim in place. Unscrew any visible screws. If clips are present, gently pry the old trim away from the door panel, taking care not to damage the door or surrounding components. Note the orientation of the old trim before removal.
3. Clean Area: Once the old trim is removed, clean the area on the appliance door where the new trim will be installed. Remove any dust, debris, or adhesive residue.

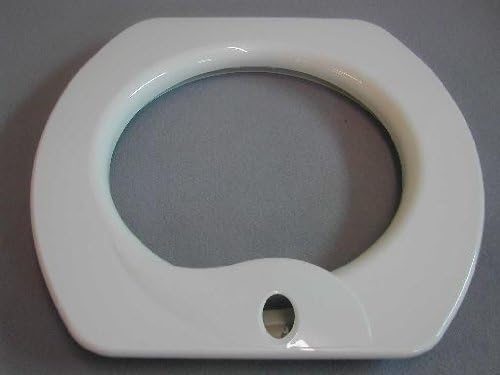

4. Position New Trim: Align the new Hotpoint C00200387 door trim with the corresponding mounting points on the appliance door. Ensure it is correctly oriented, matching the position of the trim shown in the image below.
5. Secure New Trim: If screws were used, reinsert and tighten them to secure the new trim. If clips are used, press the trim firmly into place until it clicks securely. Ensure the trim is flush with the door panel and does not wobble.
6. Final Check: Close and open the appliance door a few times to ensure the new trim does not obstruct its movement and that the door latches correctly.

3. Operating the Appliance with the New Trim

The Hotpoint C00200387 door trim is a static component that forms part of the appliance door assembly. Its function is integrated into the overall operation of your washing machine, tumble dryer, or washer dryer. Once correctly installed, no specific operational steps are required for the trim itself. The appliance should function as normal, with the door opening and closing smoothly and securely.

4. Maintenance

To ensure the longevity and appearance of your Hotpoint door trim, follow these simple maintenance guidelines:

• Cleaning: Wipe the trim regularly with a soft, damp cloth. For stubborn marks, a mild, non-abrasive household cleaner can be used.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or strong chemical agents, as these can damage the finish and material of the trim.
• Inspection: Periodically inspect the trim for any signs of damage, cracks, or loose fittings. Address any issues promptly to prevent further damage to the appliance door.

5. Troubleshooting

If you encounter issues after installing the door trim, consider the following common problems and solutions:

5.1 Trim Does Not Fit Correctly

• Check Model Compatibility: Verify that your appliance model number is listed as compatible with the Hotpoint C00200387 door trim. Refer to your appliance's original manual or Hotpoint's official website for compatibility information.
• Re-align: Remove the trim and carefully re-align it, ensuring all mounting points are correctly seated before securing.

5.2 Door Does Not Close or Latch Properly

• Check for Obstructions: Ensure no foreign objects or parts of the trim are obstructing the door's closing mechanism or latch.
• Verify Installation: Confirm that the trim is fully seated and secured, with no gaps or loose areas that could interfere with the door's movement or latching.
• Inspect Latch Mechanism: If the trim is correctly installed, the issue might be with the appliance's latch mechanism itself, which may require professional inspection.

6. Specifications

7. Warranty and Support

For information regarding the warranty of your Hotpoint C00200387 door trim, please refer to the terms and conditions provided by your retailer or the official Hotpoint website. Warranty coverage typically applies to manufacturing defects.

If you require further assistance or technical support, please contact Hotpoint customer service or an authorized service technician. Ensure you have your appliance model number and the door trim part number (C00200387) available when contacting support.

Hotpoint Official Website: www.hotpoint.co.uk
