Quick Cable Rescue Jump Pack 950 Model with Air Compressor User Manual

Product Overview

The Quick Cable Rescue Jump Pack 950 is a versatile portable power unit designed for automotive emergencies. It integrates a powerful jump starter for 12-volt vehicles, an air compressor for tire inflation, and a work light for visibility. This unit is equipped with an 18 amp-hour battery, a battery status gauge, and LED clamp lights for enhanced safety and usability.

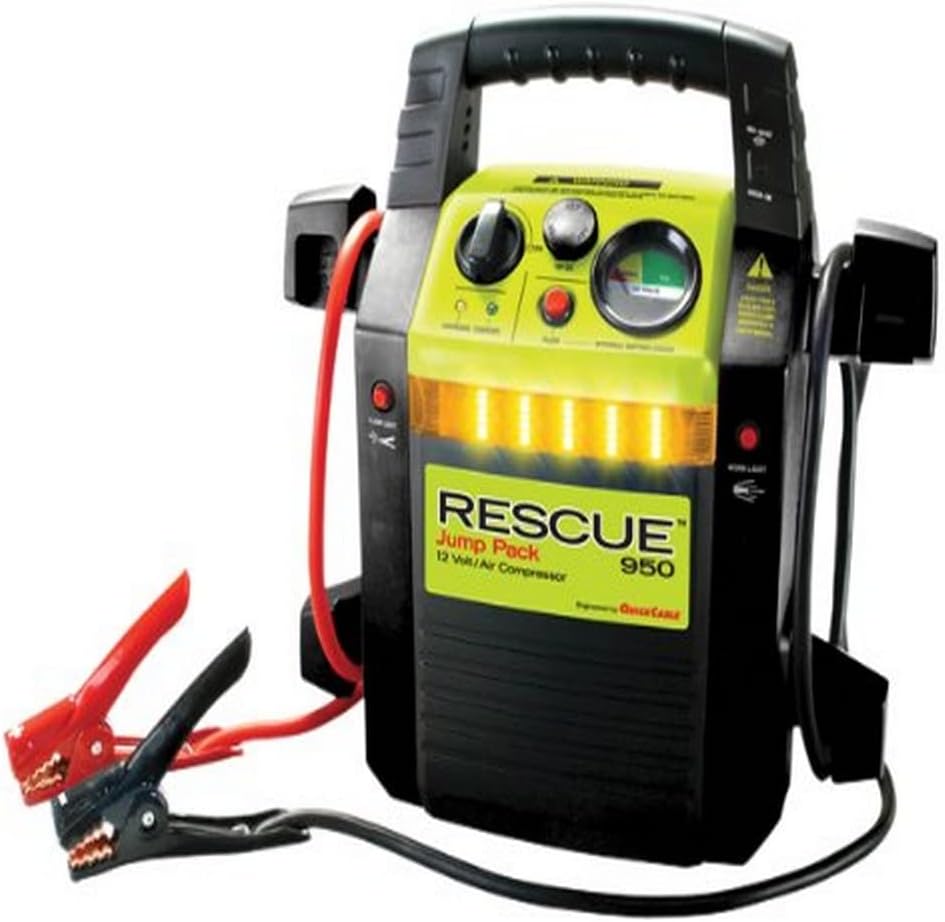

Figure 1: Quick Cable Rescue Jump Pack 950, showing the main unit with integrated air compressor, control panel, work light, and attached jumper cables.

Safety Information

Always read and understand all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Wear eye protection when operating.
• Do not expose the unit to rain or wet conditions.
• Keep children away from the unit during operation.
• Ensure proper ventilation when charging or operating.
• Do not short-circuit the battery clamps.
• The unit features a safeguard audible signal and light for user protection.

Setup

Initial Charging

Before first use, fully charge the Rescue Jump Pack for at least 12 hours. Connect the unit to a standard AC outlet using the provided charging cable. The battery status gauge will indicate charging progress.

Checking Battery Status

Regularly check the battery status gauge to ensure the unit is adequately charged for emergency use. Recharge the unit after each use or every 3 months if not used.

Operating Instructions

Jump Starting a Vehicle

1. Ensure the vehicle's ignition is off and all accessories are turned off.
2. Connect the red positive (+) clamp to the positive (+) terminal of the vehicle's battery.
3. Connect the black negative (-) clamp to a clean, unpainted metal part of the vehicle's engine block or chassis, away from the battery. Do not connect directly to the negative battery terminal.
4. Ensure connections are secure.
5. Start the vehicle. If the vehicle does not start after 5 seconds, wait at least 1 minute before attempting again.
6. Once the vehicle starts, disconnect the black negative (-) clamp first, then the red positive (+) clamp.
7. Recharge the Jump Pack as soon as possible after use.

Using the Air Compressor

The integrated air compressor can inflate tires, sports equipment, and other inflatables. Multiple air tips are included for various applications.

1. Attach the appropriate air tip to the compressor hose.
2. Connect the air tip to the item to be inflated.
3. Turn on the air compressor. Monitor the air gauge to reach the desired pressure. The unit features an automatic shut-off.
4. Once inflated, turn off the compressor and disconnect the hose.

Using the Work Light and Flasher

The unit includes a built-in work light and flasher for illumination in low-light conditions or for signaling during roadside emergencies. Activate these features using the dedicated switches on the control panel.

Maintenance

• Recharging: Recharge the unit after every use and at least every three months to maintain battery health and extend its lifespan.
• Cleaning: Clean the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasives.
• Storage: Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the cables are neatly wrapped and secured.
• Cable Inspection: Periodically inspect the jumper cables and clamps for any signs of damage, fraying, or corrosion. Replace if necessary.

Troubleshooting

Specifications

• Model Number: 604051-001
• Brand: Quick Cable
• Battery Type: Premium 18 Amp Hour
• Jump Start Capacity: 12 Volt Vehicles
• Cable Length: 55 inches (extra long)
• Features: Air compressor, Air gauge, Built-in work light, Flasher, Safeguard audible signal and light, Battery status gauge, DC power source, LED clamp lights, Automatic Shut Off (for compressor).
• Item Weight: 24 pounds
• Package Dimensions: 17.7 x 16.9 x 10.9 inches
• Country of Origin: USA

Warranty and Support

For warranty information, technical support, or service inquiries regarding your Quick Cable Rescue Jump Pack 950, please contact Quick Cable customer service. Refer to the original product packaging or the Quick Cable official website for the most current contact details and warranty terms.

Manufacturer: Quick Cable

Website: www.quickcable.com
