Zenport ZL615 Telescopic Long Reach Pruner Instruction Manual

1. Introduction

The Zenport ZL615 Telescopic Long Reach Pruner is designed for efficient and safe pruning of green wood in hard-to-reach areas. This tool features a telescopic pole that extends from 40 to 60 inches, allowing for single-handed operation and precise cutting. It is suitable for cutting branches up to 3/8-inch thick.

Key Features:

• Telescopic pole extends from 40 to 60 inches.
• Cuts green wood up to 3/8-inch thick.
• Designed for light and easy single-handed operation.
• Ideal for cutting suckers and new growth.

2. Safety Information

Always prioritize safety when using pruning tools. Failure to follow these guidelines may result in injury or damage to the tool.

• Wear Protective Gear: Always wear safety glasses, gloves, and appropriate clothing to protect against falling debris and sharp blades.
• Inspect Before Use: Before each use, check the pruner for any damage, loose parts, or dull blades. Do not use a damaged tool.
• Maintain a Secure Stance: Ensure you have stable footing when operating the pruner, especially when reaching overhead or extending the pole.
• Keep Clear of Power Lines: Never use the pruner near electrical wires or power lines. Contact with electricity can cause severe injury or death.
• Proper Cutting Technique: Cut only green wood within the specified capacity (up to 3/8 inch). Forcing the pruner on thicker or dry branches can damage the tool and cause injury.
• Store Safely: Store the pruner in a dry, secure location out of reach of children and unauthorized users.
• California Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

3. Product Components

The Zenport ZL615 Telescopic Long Reach Pruner consists of the following main components:

• Cutting Head: Features sharp carbon steel blades for precise cuts.
• Telescopic Pole: Extends the reach of the pruner.
• Extension Lock: Secures the pole at desired lengths.
• Operating Handle: Ergonomic handle with a trigger mechanism to actuate the cutting head.

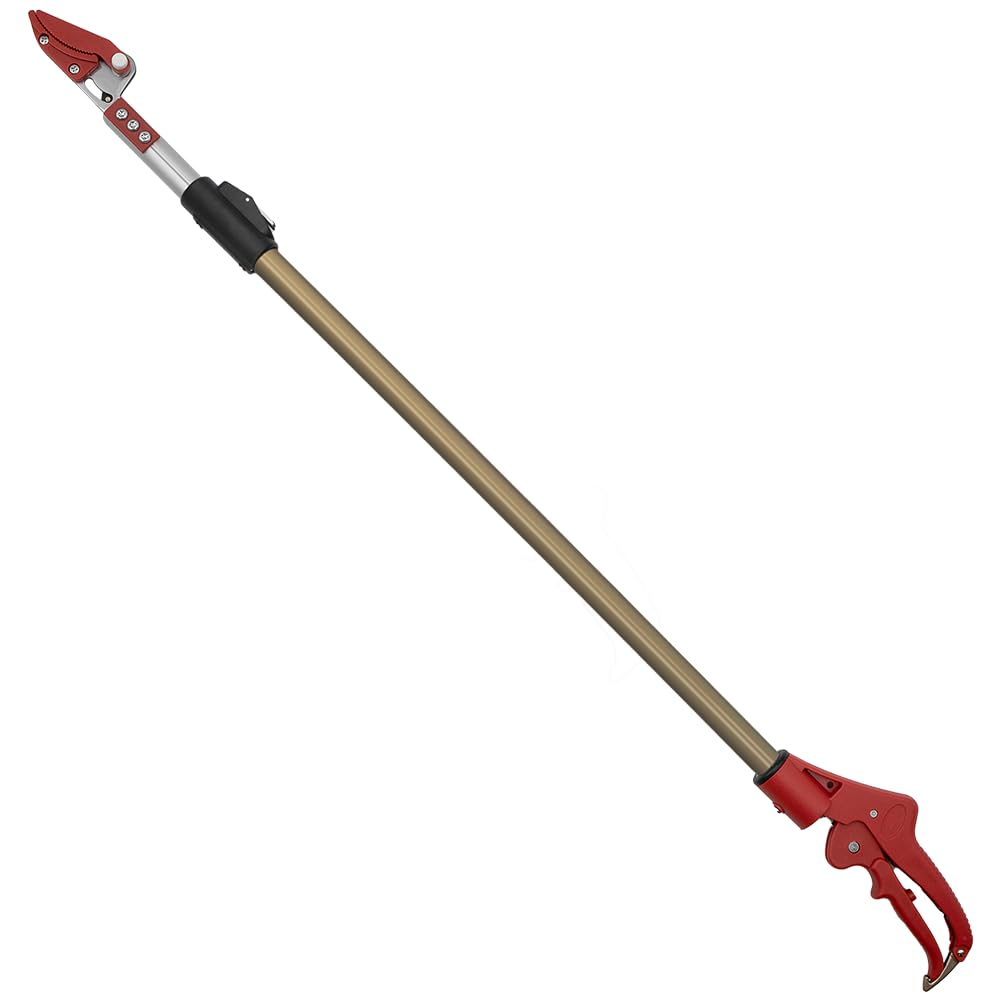

Figure 3.1: Zenport ZL615 Telescopic Long Reach Pruner, showing the full tool from cutting head to handle.

Figure 3.2: The Zenport ZL615 pruner in its extended configuration, demonstrating its long reach capability.

Figure 3.3: Detailed view of the pruner's cutting head, highlighting the carbon steel blades and mechanism.

Figure 3.4: The adjustable handle of the Zenport ZL615, illustrating its 180-degree rotation feature for ergonomic use.

Figure 3.5: Diagram showing the dimensions of the Zenport ZL615 pruner, including its minimum and maximum lengths.

4. Setup

The Zenport ZL615 pruner comes pre-assembled. The primary setup involves adjusting the telescopic pole to your desired length.

1. Unlock the Extension: Locate the extension lock mechanism on the telescopic pole. Twist or release the lock to allow the pole to slide freely.
2. Adjust Length: Carefully extend the pole to the required length for your pruning task. The pole can extend from 40 inches to 60 inches.
3. Secure the Extension: Once the desired length is achieved, firmly engage the extension lock to secure the pole in place. Ensure it is tightly locked to prevent accidental retraction during use.

5. Operating Instructions

Follow these steps for effective and safe operation of your Zenport ZL615 pruner:

1. Positioning: Extend the pruner to the appropriate length. Position the cutting head around the branch you intend to cut. Ensure the branch is within the 3/8-inch cutting capacity.
2. Grip: Hold the operating handle firmly with one hand. The design allows for single-handed operation.
3. Cutting: Squeeze the trigger on the operating handle to close the cutting blades. Apply steady pressure until the branch is severed. The pruner is designed to "cut and hold" the severed branch, preventing it from falling.
4. Release: Release the trigger to open the blades and release the cut branch.
5. Reposition: Move to the next branch and repeat the process.

Important: Avoid twisting or prying with the pruner while cutting, as this can damage the blades or the pole mechanism.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pruner.

• Cleaning: After each use, especially when cutting wet or sappy branches, clean the blades and other moving parts with a damp cloth to remove sap and debris.
• Drying: If the pruner has been used in wet conditions, ensure it is thoroughly dried before storage to prevent rust.
• Lubrication: Periodically apply a light oil to the cutting blades and any moving joints or pivot points on the handle and cutting head. This helps maintain smooth operation and prevents corrosion.
• Blade Sharpening: Over time, the blades may become dull. Sharpen them with a suitable sharpening tool or have them professionally sharpened to maintain cutting efficiency.
• Storage: Store the pruner in a clean, dry place. Retract the telescopic pole to its shortest length for compact storage.

7. Troubleshooting

If you encounter issues with your Zenport ZL615 pruner, refer to the following common problems and solutions:

8. Specifications

9. Warranty Information

The Zenport ZL615 Telescopic Long Reach Pruner comes with a Limited Lifetime Warranty from the manufacturer.

For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or contact Zenport customer support.

10. Customer Support

For further assistance, questions, or to report issues not covered in this manual, please contact Zenport customer support.

• Manufacturer: Zenport
• Website: Visit the Zenport Store on Amazon (for general product information)
• Contact Information: Please refer to the packaging or the official Zenport website for the most current contact details.
