ShelterLogic Garage-in-a-Box SUV/Truck Shelter (Model 62697)

Product Overview

The ShelterLogic Garage-in-a-Box Compact is engineered to provide a reliable and versatile storage solution for SUVs, trucks, and various equipment. Its design focuses on durability and ease of use, offering protection against environmental elements.

Key features include a robust 3.5 cm (1.375 inch) steel frame, treated with a premium powder-coat process to resist chipping, peeling, rust, and corrosion. The advanced engineered ripstop, woven polyethylene fabric is triple-layered and heat-welded at the seams, ensuring ultimate four-season performance. This cover is 100% waterproof, UV-treated on the inside, outside, and in between, with added fade blockers, anti-aging agents, and anti-fungal agents. A high-profile white interior enhances illumination.

Assembly is designed for convenience with slip-fit connectors and best-in-class swaged tubing. Patented ShelterLock stabilizers at each rib connection ensure a rock-solid frame, while the robust ratchet tensioning system allows for quick cover installation. The Easy Slide Cross Rail system locks down and squares up the frames for initial and continuous frame-to-fabric fit.

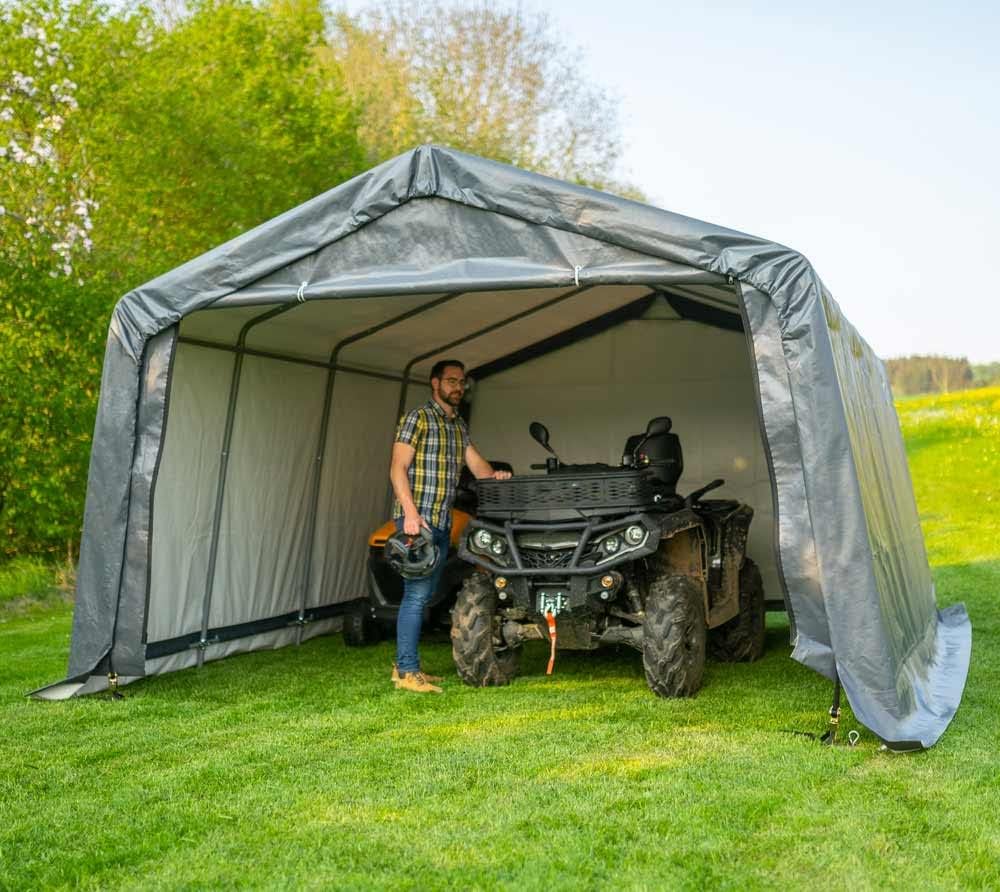

Image: A man stands beside an ATV inside the ShelterLogic Garage-in-a-Box, demonstrating its spacious interior for vehicle storage.

Important Safety and Legal Information:

• Ensure the shelter is properly anchored to prevent movement due to wind or other forces.
• Protect the shelter from prolonged UV exposure to maximize its lifespan.
• Keep the shelter away from fire hazards.
• In most cases, this structure does not require building permits. However, always check local ordinances and regulations before installation.

Setup Instructions

Proper assembly is crucial for the stability and longevity of your ShelterLogic Garage-in-a-Box. Follow these general steps for installation:

1. Site Selection: Choose a level, clear area for installation. Ensure adequate space around the shelter for assembly and access.
2. Unpack Components: Carefully unpack all parts and verify against the parts list provided in your packaging. Organize components for easier assembly.
3. Assemble Frame: Begin by assembling the base frame and then the arch ribs. Utilize the slip-fit connectors and swaged tubing. Ensure all connections are secure.
4. Install ShelterLock Stabilizers: Attach the patented ShelterLock stabilizers at each rib connection point. These are designed to reinforce the frame's rigidity.
5. Attach Cross Rails: Implement the Easy Slide Cross Rail system. This system helps to square up the frame and prepare it for the cover.
6. Drape and Tension Cover: Carefully drape the main cover over the assembled frame. Ensure it is centered and aligned. Use the robust ratchet tensioning system to pull the cover taut and secure it to the frame. This system ensures a tight fit, preventing flapping and water pooling.
7. Install End Panels (if applicable): Attach the front and rear end panels, securing them as per the specific instructions in your product manual.
8. Anchor the Shelter: This is a critical step. Securely anchor the shelter to the ground using appropriate anchoring kits (often sold separately or included). Proper anchoring prevents the shelter from lifting or moving in high winds.

Image: An empty ShelterLogic Garage-in-a-Box, showcasing the assembled frame and taut cover, ready for use.

Operating Instructions

Using your ShelterLogic Garage-in-a-Box effectively involves understanding its features and maintaining its integrity.

• Vehicle/Equipment Storage: Drive or place your vehicle/equipment into the shelter. Ensure there is adequate clearance around the stored item to prevent contact with the cover, which could cause wear or damage.
• Door Operation: If your model includes a roll-up door, operate it smoothly. Avoid forcing the door, which can damage zippers or fasteners. Secure the door in the open position when accessing the shelter and in the closed position when storing items to protect them from elements.
• Ventilation: While the shelter provides protection, ensure adequate ventilation, especially if storing items that may emit fumes or require airflow.
• Snow and Ice Removal: In snowy conditions, regularly remove snow accumulation from the roof to prevent excessive weight from damaging the frame or cover. Use a soft brush or broom to avoid puncturing the fabric.
• Wind Management: In high wind conditions, ensure all anchors are secure and the cover is tightly tensioned. Consider additional anchoring if your area experiences frequent strong winds.

Image: A man demonstrates opening the zippered front panel of the shelter, providing easy access to the interior.

Image: The interior of the shelter, showing an ATV and a lawnmower comfortably stored, highlighting its utility for various equipment.

Maintenance

Regular maintenance will extend the life of your ShelterLogic Garage-in-a-Box and ensure its continued performance.

• Cover Cleaning: Periodically clean the exterior of the cover with mild soap and water. Avoid harsh chemicals or abrasive cleaners, which can damage the UV coating and fabric. Rinse thoroughly.
• Frame Inspection: Regularly inspect the steel frame for any signs of rust, damage, or loose connections. Tighten any bolts or connections as needed.
• Cover Inspection: Check the fabric cover for any tears, punctures, or excessive wear. Small tears can often be repaired with a repair kit designed for polyethylene fabrics. Address any damage promptly to prevent it from worsening.
• Tensioning System: Verify that the ratchet tensioning system remains tight. Re-tension the cover if it appears loose or sags, especially after extreme weather conditions.
• Anchoring System: Inspect the ground anchors and tie-downs regularly to ensure they are secure and not corroded or damaged. Re-secure or replace as necessary.
• UV Protection: While the cover is UV-treated, prolonged exposure to intense sunlight can still degrade the material over many years. Consider relocating the shelter or adding additional UV protection if possible in extremely sunny climates.

Troubleshooting

Here are solutions to common issues you might encounter with your shelter:

• Shelter is unstable or sways:
  • Ensure all frame connections are fully engaged and tightened.
  • Verify that the ShelterLock stabilizers are correctly installed.
  • Check that the cover is properly tensioned using the ratchet system.
  • Confirm that the anchoring system is securely installed and functioning.
• Water pooling on the cover:
  • The cover may not be sufficiently tensioned. Re-tension the cover using the ratchet system to ensure a tight, smooth surface.
  • Check for any frame components that might be bent or misaligned, causing a dip in the cover.
• Tears or holes in the cover:
  • Small tears can often be repaired with a specialized repair kit for polyethylene fabrics.
  • For larger damage, contact ShelterLogic support for replacement cover options.
• Difficulty opening/closing door:
  • Check for obstructions in the zipper or track.
  • Ensure the shelter is level and the frame is not twisted, which can put stress on the door mechanism.

If you encounter issues not covered here, please refer to the support section.

Product Specifications

Image: Dimensional diagram of the shelter, indicating a width of 12 feet (3m), a length of 16 feet (4.9m), and a peak height of 8 feet 6 inches (2.6m).

Warranty Information

ShelterLogic products typically come with a limited warranty covering manufacturing defects. The specific terms and duration of the warranty may vary by region and product model. Please refer to the warranty card included with your purchase or visit the official ShelterLogic website for detailed information regarding your product's warranty coverage, terms, and conditions.

Keep your proof of purchase (receipt) as it will be required for any warranty claims.

Customer Support

For technical assistance, replacement parts, or any questions regarding your ShelterLogic Garage-in-a-Box, please contact ShelterLogic customer support.

• Online Support: Visit the official ShelterLogic website for FAQs, product registration, and contact forms.
• Phone Support: Check the ShelterLogic website or your product packaging for regional customer service phone numbers.
• When contacting support, please have the following information ready:
  • Product Model Number: 62697
  • Date of Purchase
  • Description of the issue
