User Manual: 20 Amp, 125V, Nema 5-20R, Duplex Receptacle

Product Overview

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Bryant Electric 20 Amp, 125V, Nema 5-20R, Industrial Grade, Grounding, Brown Duplex Receptacle. This device is designed for reliable and safe electrical connections in various applications.

Key Features

• One-piece ground system provides a more reliable continuity to ground than riveted designs.
• Triple-Wipe brass line contacts deliver excellent conductivity for low resistance, low heat rise - superior spring properties provide reliable, long-life blade retention.
• All nylon, wraparound, full-face design provides secure assembly, even under stress.
• Nylon construction with circuit ID marking area.
• Heavy duty Nickel and brass plated steel wrap-around yoke with heavy duty, copper-alloy self-grounding system.

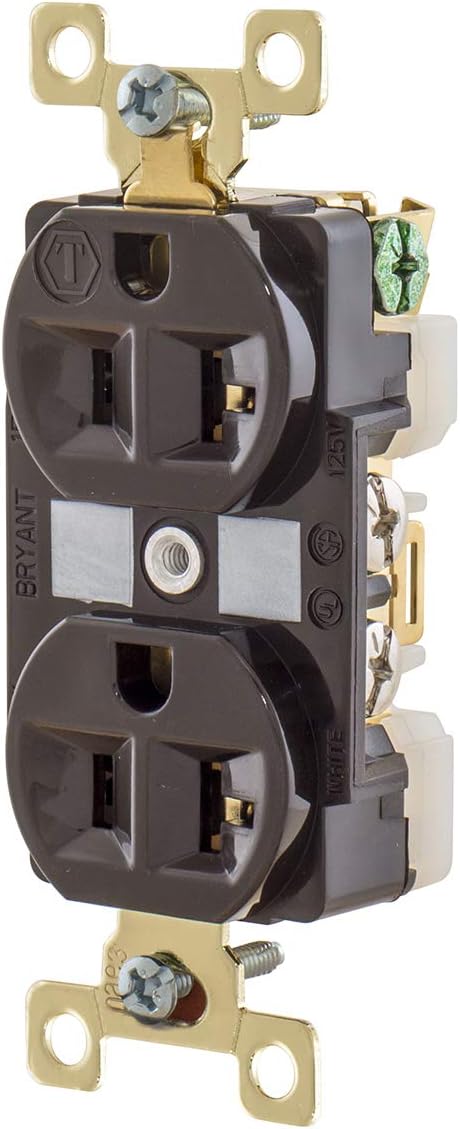

Image: Front view of the Bryant Electric 20 Amp, 125V, Nema 5-20R, Duplex Receptacle. It features a brown housing with two outlets, brass mounting straps, and visible wiring terminals on the side.

Important Safety Information

WARNING: Risk of electric shock or fire. Improper installation or use can result in serious injury or death. Always follow these safety guidelines:

• Always turn off power at the circuit breaker or fuse box before installing, servicing, or removing the receptacle. Verify power is off using a voltage tester.
• This device must be installed in accordance with all national and local electrical codes. If you are unsure about any part of these instructions, consult a qualified electrician.
• Do not install in wet locations unless specifically rated for such use.
• Ensure all wire connections are secure and properly insulated.
• Use only copper wire with this device.
• Do not exceed the specified electrical ratings (20 Amp, 125V).

Installation Instructions

Follow these steps carefully to install your new duplex receptacle:

1. Turn Off Power: Locate the circuit breaker or fuse that controls the power to the outlet where you will be working. Turn it OFF. Use a voltage tester to confirm that the power is completely off at the outlet.
2. Remove Old Receptacle (if applicable): Unscrew the cover plate and then the mounting screws holding the old receptacle in the electrical box. Carefully pull the old receptacle out of the box. Disconnect the wires from the old receptacle, noting which wire was connected to which terminal (typically black/hot to brass, white/neutral to silver, bare/green/ground to green screw).
3. Prepare Wires: If necessary, strip approximately 1/2 inch of insulation from the ends of the wires. Ensure the wire ends are clean and straight.
4. Connect Wires to New Receptacle:
   • Connect the bare copper or green insulated ground wire to the green grounding screw terminal.
   • Connect the white (neutral) wire to either of the silver-colored screw terminals.
   • Connect the black (hot) wire to either of the brass-colored screw terminals.

   Ensure all wire connections are tight and secure. For screw terminals, wrap the wire clockwise around the screw before tightening.

5. Mount Receptacle: Carefully fold the wires into the electrical box. Insert the new receptacle into the box and secure it with the mounting screws provided. Ensure the receptacle is flush with the wall.
6. Install Cover Plate: Attach the new cover plate over the receptacle and secure it with the center screw.
7. Restore Power: Go back to the circuit breaker or fuse box and turn the power back ON. Test the receptacle to ensure it is functioning correctly.

Operation

Once properly installed, the Bryant Electric 20 Amp, 125V, Nema 5-20R Duplex Receptacle provides two outlets for connecting NEMA 5-20P compatible electrical devices. Simply insert the plug of your device into one of the receptacle's outlets. Ensure the plug is fully inserted for a secure connection.

Maintenance

This receptacle is designed for long-lasting performance with minimal maintenance. However, periodic inspection is recommended:

• Visual Inspection: Periodically check the receptacle and cover plate for any signs of damage, cracks, discoloration, or loose connections.
• Cleaning: If cleaning is necessary, ensure power is OFF at the circuit breaker. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or abrasive materials.
• Tightness: If you suspect a loose connection, turn off power at the circuit breaker and carefully check the wire terminals for tightness.

Troubleshooting

If your receptacle is not functioning as expected, consider the following common issues:

• No Power:
  • Check the circuit breaker or fuse for the circuit. Reset the breaker if it has tripped or replace the fuse if blown.
  • Ensure power is ON at the main panel.
• Loose Connection:
  • Turn off power at the circuit breaker. Carefully remove the cover plate and receptacle from the electrical box. Check all wire connections to ensure they are tight and secure. Re-tighten if necessary.
• Device Not Plugging In:
  • Ensure the plug of your device is NEMA 5-20P compatible. This receptacle is designed for 20 Amp, 125V plugs.
  • Check for any obstructions in the receptacle slots.

If problems persist after troubleshooting, consult a qualified electrician.

Technical Specifications

Warranty and Support

For specific warranty information and customer support, please refer to the official Bryant Electric website or contact their customer service department. Keep your purchase receipt as proof of purchase.

You can find more information about Bryant Electric products at their official website or through authorized retailers.
