Turbo Air TBC-95SD Bottle Cooler User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Turbo Air TBC-95SD Bottle Cooler. Please read these instructions thoroughly before operating the unit to ensure safe and efficient performance. Retain this manual for future reference.

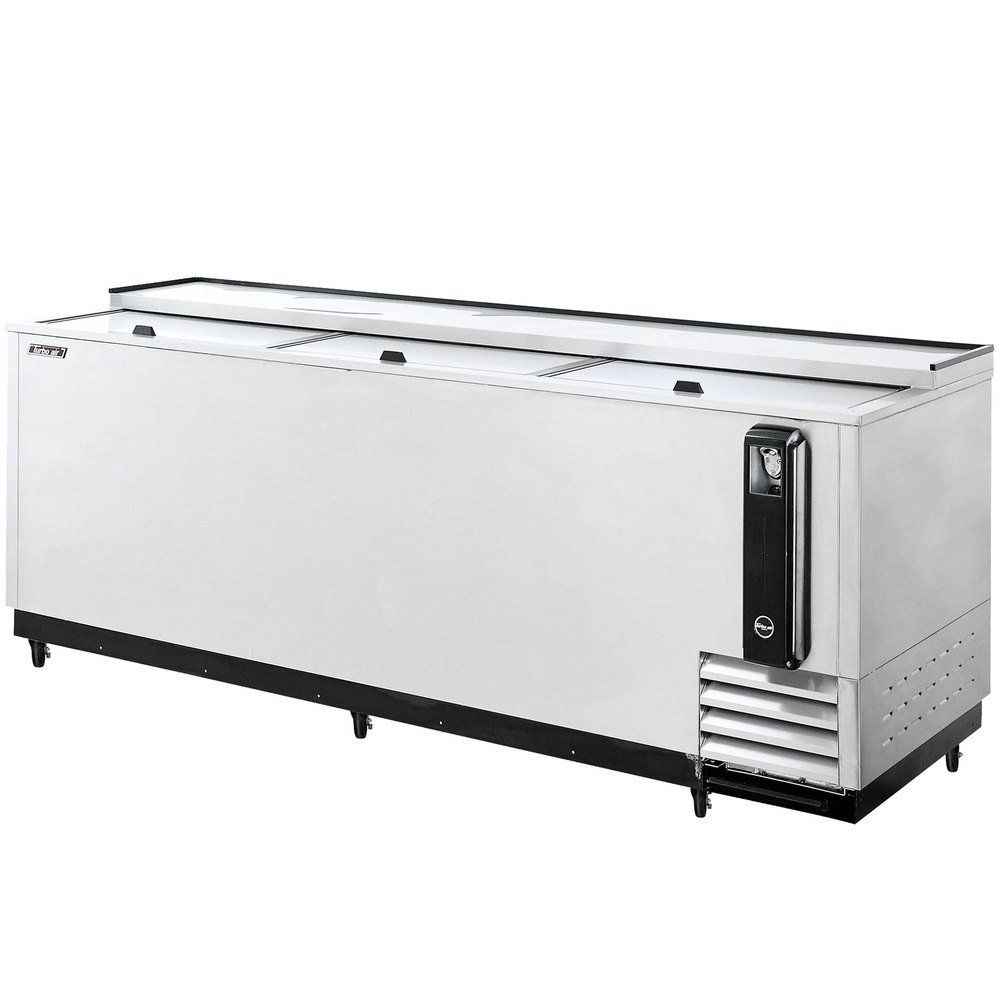

Image 1.1: Front view of the Turbo Air TBC-95SD Bottle Cooler. This image displays the stainless steel exterior, sliding lids, and overall design of the unit.

2. Safety Information

Always observe basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. This unit is designed for commercial use only.

• Electrical Safety: Ensure the unit is connected to a properly grounded electrical outlet with the correct voltage and amperage as specified on the rating label. Do not use extension cords.
• Ventilation: Maintain adequate clearance around the unit for proper airflow to the condenser. Blocked airflow can lead to overheating and reduced efficiency.
• Flammable Materials: Do not store explosive substances or flammable materials inside or near the cooler.
• Cleaning: Disconnect power before cleaning or performing any maintenance. Use non-abrasive cleaners.
• Service: All service and repairs should be performed by qualified service personnel.

3. Setup

3.1 Unpacking

Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage to the carrier immediately. Do not discard packaging until the unit has been tested and is operating correctly.

3.2 Placement

• Place the cooler on a strong, level surface capable of supporting its weight when fully loaded.
• Ensure adequate ventilation. Maintain a minimum of 6 inches (15 cm) clearance from walls or other obstructions on all sides (especially the rear and sides where the compressor is located) to allow for proper air circulation.
• Avoid direct sunlight, heat-producing equipment, or areas with high humidity.

3.3 Electrical Connection

Connect the unit to a dedicated 115V/60Hz/1-phase electrical outlet. The unit requires 9.2 Amps and comes with a NEMA 5-15P plug. Ensure the circuit is protected by a fuse or circuit breaker of appropriate rating. Do not overload the circuit.

3.4 Initial Cleaning

Before first use, clean the interior and exterior of the unit with a mild soap and water solution. Rinse thoroughly and dry completely.

3.5 Initial Startup

After placement and electrical connection, allow the unit to sit for at least 2 hours before plugging it in. This allows compressor oils to settle. Plug in the unit and allow it to run empty for several hours (e.g., 4-6 hours) to reach its operating temperature before loading products.

4. Operating Instructions

4.1 Temperature Control

The unit is equipped with a digital temperature controller. Refer to the controller's specific instructions for setting and adjusting the desired temperature. Typically, the temperature range for bottle coolers is between 33°F and 41°F (0.5°C and 5°C).

4.2 Loading Products

• Load bottles evenly to ensure proper air circulation. Do not block the internal air vents.
• The unit includes (6) PE coated adjustable dividers. Position these dividers to organize bottles efficiently and prevent them from tipping.
• Avoid overloading the cooler, as this can restrict airflow and reduce cooling efficiency.

4.3 Sliding Lids

The unit features (3) sliding lids for easy access to beverages. Keep lids closed when not in use to maintain internal temperature and conserve energy.

4.4 Bottle Cap Opener and Catcher

A built-on removable bottle cap opener and catcher are provided for convenience. Ensure the catcher is emptied regularly to prevent overflow.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your bottle cooler.

5.1 Daily Cleaning

• Wipe down the stainless steel exterior and countertop with a soft cloth and mild detergent.
• Clean the interior walls and floor with a mild, food-safe cleaner.
• Empty and clean the bottle cap catcher.

5.2 Condenser Coil Cleaning (Monthly/Quarterly)

The condenser coil should be cleaned regularly (monthly in dusty environments, quarterly otherwise) to maintain efficiency. Disconnect power before cleaning.

1. Locate the condenser coil, typically near the side-mount compressor.
2. Use a stiff brush or vacuum cleaner with a brush attachment to remove dust and debris from the fins.
3. Ensure all debris is removed to allow for proper heat exchange.

5.3 Gasket Inspection (Monthly)

Inspect the door gaskets for tears, cracks, or signs of wear. Damaged gaskets can lead to air leaks and reduced cooling efficiency. Replace worn gaskets promptly.

5.4 Drain Maintenance

Periodically check the drain pan and drain line for blockages. Clear any debris to prevent water accumulation and potential leaks.

6. Troubleshooting

Before contacting service, review the following common issues and solutions.

If the problem persists after attempting these solutions, disconnect the power and contact a qualified service technician.

7. Specifications

8. Warranty and Support

This Turbo Air TBC-95SD Bottle Cooler comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, parts, or warranty claims, please contact your authorized Turbo Air dealer or visit the official Turbo Air website for contact information.
