Ingersoll Rand 3445MAX Air Angle Grinder/Cutoff Tool User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Ingersoll Rand 3445MAX Air Angle Grinder/Cutoff Tool. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

The Ingersoll Rand 3445MAX is a powerful 4.5-inch wheel air angle grinder designed for demanding material removal tasks in metalworking, construction, and other industrial applications. It features a 0.88 hp air motor, 12,000 rpm, and an internal governor for consistent speed under load.

2. Safety Information

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

General Safety Rules

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and gloves.
• Ensure the work area is clean, well-lit, and free from obstructions.
• Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Keep children and bystanders away while operating a power tool.
• Maintain proper footing and balance at all times.

Air Tool Specific Safety

• Disconnect the air supply before making any adjustments, changing accessories, or storing the tool.
• Do not exceed the maximum operating pressure of 90 PSI (6.2 bar).
• Use clean, dry, regulated compressed air.
• Inspect air hoses for damage before each use.
• Ensure the grinding wheel is securely attached and rated for the tool's RPM.

3. Product Overview

The Ingersoll Rand 3445MAX Air Angle Grinder is engineered for durability and performance. Below are key components and features.

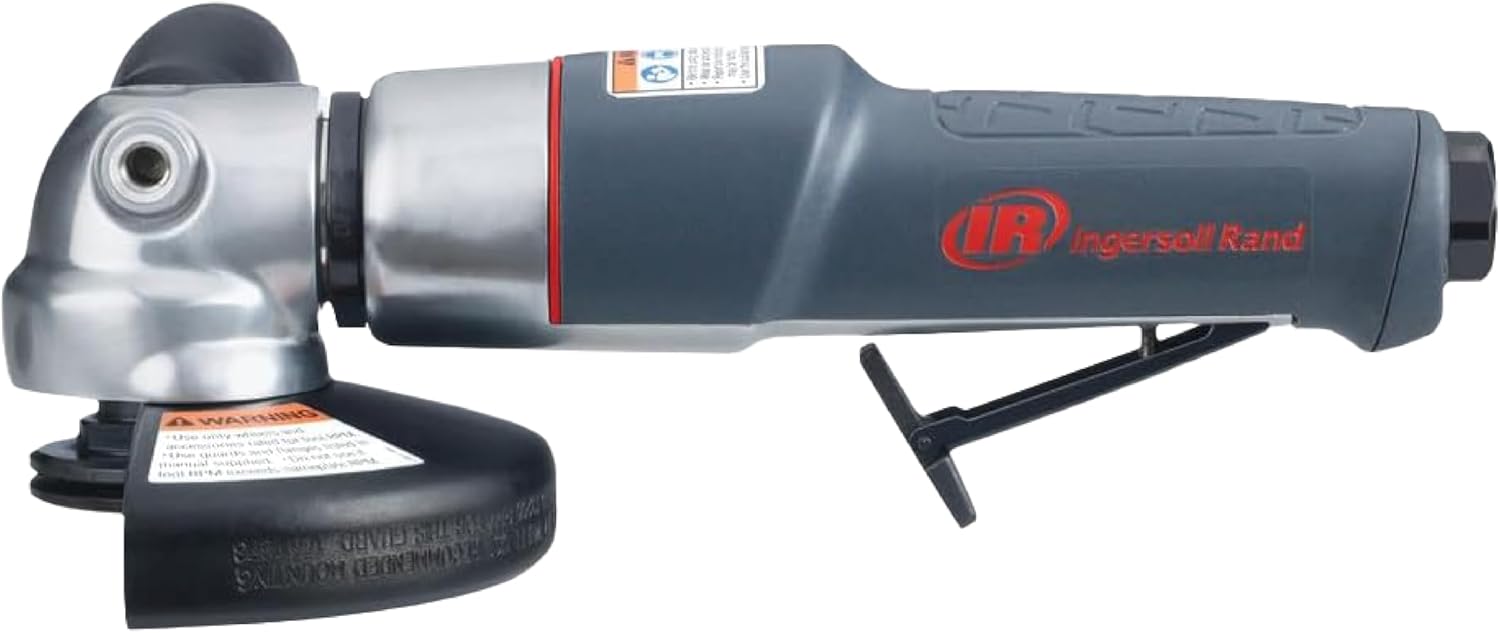

Figure 3.1: Side view of the Ingersoll Rand 3445MAX Air Angle Grinder, showing the main body, handle, and wheel guard.

Figure 3.2: Dimensions of the 3445MAX Air Angle Grinder, illustrating its compact size for ease of use.

Key Features:

• Powerful Air Motor: 0.88 hp motor delivers 12,000 rpm for efficient material removal.
• Internal Governor: Maximizes speed under load for consistent performance.
• Built-in Lubricating Wick: Optimizes the life of the angle gear set by improving lubrication.
• Ergonomic Grip Design: Enhances operator comfort and reduces fatigue during extended use.
• Lightweight Construction: Weighs less than 3.5 lbs, offering an excellent power-to-weight ratio.

4. Setup

Unpacking and Inspection

Carefully remove the grinder from its packaging. Inspect the tool for any signs of damage that may have occurred during shipping. If any damage is found, do not operate the tool and contact your supplier immediately.

Connecting to Air Supply

1. Ensure your air compressor can provide sufficient airflow (CFM) and pressure (PSI) for the grinder's requirements. The 3445MAX operates optimally at 90 PSI (6.2 bar).
2. Install an air filter/regulator/lubricator (FRL) unit in your air line, as close to the tool as possible. This will ensure clean, dry, and lubricated air, prolonging tool life.
3. Connect a 3/8-inch minimum diameter air hose to the tool's air inlet. Use thread sealant on all connections to prevent leaks.
4. Ensure all connections are secure before pressurizing the system.

Attaching the Wheel Guard and Grinding Wheel

The 3445MAX comes with a wheel guard, flange, nut, and wheel nut wrenches. Always use the appropriate wheel guard for the type and size of grinding wheel being used.

1. Ensure the tool is disconnected from the air supply.
2. Position the wheel guard over the spindle and secure it according to the instructions provided with the guard.
3. Place the inner flange onto the spindle.
4. Mount the 4.5-inch grinding wheel onto the spindle, ensuring it sits flush against the inner flange.
5. Thread the outer nut onto the spindle and tighten it securely using the provided wrenches. Do not overtighten.
6. Spin the wheel by hand to ensure it rotates freely and is properly centered.

5. Operating Instructions

Before Operation

• Verify all safety precautions are in place.
• Ensure the workpiece is securely clamped or held.
• Check the grinding wheel for any cracks or damage. Replace if necessary.

Starting and Stopping the Tool

1. Connect the tool to the air supply.
2. To start the grinder, depress the variable speed lever. The tool will gradually increase speed.
3. To stop the grinder, release the variable speed lever.

Grinding and Cutting Techniques

• Allow the grinder to reach full speed before contacting the workpiece.
• Apply light, consistent pressure. Do not force the tool, as this can reduce efficiency and damage the wheel or tool.
• Maintain a shallow angle (typically 15-30 degrees) when grinding to maximize material removal and prevent gouging.
• For cutting, ensure the cutting wheel is properly aligned with the cut line and apply steady, even pressure.
• Move the tool smoothly across the workpiece to ensure an even finish.

Figure 5.1: The 3445MAX Air Angle Grinder in action, demonstrating its capability for material removal with sparks generated during operation.

Figure 5.2: A close-up view highlighting the ergonomic grip of the grinder, designed for user comfort and reduced fatigue.

6. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your Ingersoll Rand 3445MAX Air Angle Grinder.

Daily Maintenance

• Disconnect from air supply after each use.
• Clean the exterior of the tool with a damp cloth. Do not use harsh solvents.
• Inspect the air inlet screen for blockages and clean if necessary.
• Check the grinding wheel and guard for wear or damage.

Lubrication

The 3445MAX features a built-in lubricating wick. Ensure your FRL unit is providing proper lubrication to the air supply. If an FRL unit is not used, add 5-10 drops of air tool oil into the air inlet before and after each use.

Periodic Checks

• Check all fasteners for tightness.
• Inspect air hoses and fittings for leaks or damage.
• Periodically check the condition of the internal lubricating wick and replace if it appears dry or worn.

7. Troubleshooting

This section provides solutions to common issues you might encounter with your 3445MAX Air Angle Grinder.

8. Specifications

9. Warranty and Support

Warranty Information

The Ingersoll Rand 3445MAX Air Angle Grinder comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized modifications, or normal wear and tear.

For detailed warranty terms and conditions, please refer to the official Ingersoll Rand warranty policy or contact customer service.

Customer Support

If you have any questions, require technical assistance, or need to arrange for service, please contact Ingersoll Rand customer support. You can find contact information on the official Ingersoll Rand website or through your local distributor.

For more information, visit the official Ingersoll Rand Store on Amazon.
