Jeffrey Alexander Z290-3-SN Durham Pull Instruction Manual

1. Introduction and Overview

The Jeffrey Alexander Z290-3-SN Durham Pull is a durable zinc die-cast cabinet pull designed for enhancing the aesthetic and functionality of your furniture. This model features a 3-inch center-to-center hole spacing and an overall length of 3-3/8 inches, finished in Satin Nickel. It is suitable for various cabinet and drawer applications and includes all necessary mounting hardware for straightforward installation.

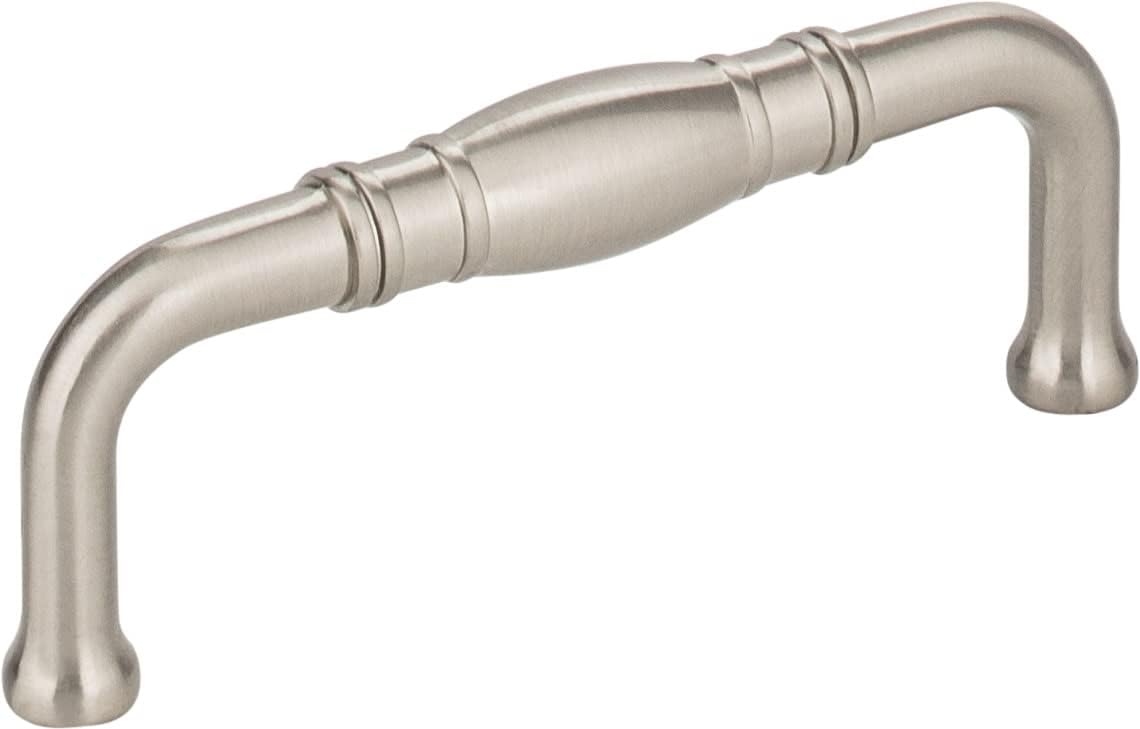

Image 1.1: The Jeffrey Alexander Z290-3-SN Durham Pull in its Satin Nickel finish.

2. Setup and Installation

This section provides step-by-step instructions for installing your new cabinet pull. The pull comes packaged with two 8/32-inch x 1-inch screws for mounting.

Required Tools:

• Measuring tape or ruler
• Pencil
• Drill
• Drill bit (appropriate size for 8/32-inch screws, typically 7/64-inch or 3mm)
• Screwdriver (Phillips head recommended)

Installation Steps:

1. Prepare the Surface: Ensure the cabinet door or drawer front where the pull will be installed is clean and free of debris.
2. Mark Hole Locations: Using a measuring tape and pencil, carefully mark the two points where the screws will pass through. The center-to-center spacing for this pull is 3 inches. Ensure these marks are level and centered on your cabinet panel for optimal appearance.
3. Drill Pilot Holes: Using a drill with an appropriate drill bit (e.g., 7/64-inch or 3mm), carefully drill pilot holes through the marked points. Drill slowly and steadily to prevent splintering the wood.
4. Attach the Pull: Align the pull with the drilled holes. Insert the provided 8/32-inch x 1-inch screws from the back side of the cabinet door or drawer front, through the pilot holes, and into the threaded receivers on the pull.
5. Tighten Screws: Using a Phillips head screwdriver, gently tighten the screws until the pull is secure. Do not overtighten, as this can strip the screw threads or damage the cabinet material.

Image 2.1: Technical drawing illustrating the dimensions and center-to-center spacing of the Durham Pull.

Image 2.2: Example of Durham Pulls installed on cabinet doors.

3. Operating Instructions

The Jeffrey Alexander Durham Pull is designed for straightforward operation. To open or close a cabinet door or drawer, simply grasp the pull firmly and apply gentle, consistent force in the desired direction. Avoid excessive force or sudden jerking motions, which could stress the mounting hardware or the cabinet itself.

4. Maintenance and Care

Proper care will help maintain the appearance and longevity of your Durham Pull.

• Cleaning: Clean the pull regularly with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, dry cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, ammonia-based products, or harsh chemical solvents, as these can damage the Satin Nickel finish and the metal.
• Check Fasteners: Periodically inspect the screws that secure the pull to the cabinet. If they feel loose, gently tighten them with a screwdriver to prevent wobbling or detachment.

5. Troubleshooting

This section addresses common issues you might encounter with your cabinet pull.

Issue: Pull feels loose or wobbly.

• Solution: Gently tighten the mounting screws from the inside of the cabinet door or drawer. If the screws are stripped, they may need to be replaced with slightly larger ones or the holes reinforced.

Issue: Pull does not align correctly with pre-drilled holes.

• Solution: Double-check your measurements. If the holes are slightly off, you may be able to widen them slightly with a drill bit or file, or use a mounting template for precise alignment. For new installations, always measure carefully before drilling.

6. Specifications

7. Warranty and Support

Specific warranty information for the Jeffrey Alexander Z290-3-SN Durham Pull is not provided in the product details. For warranty inquiries or technical support, please refer to the official Jeffrey Alexander website or contact their customer service directly. Contact information can typically be found on the manufacturer's packaging or website.
