Far-Infrared Slimming Suit User Manual

Introduction

This manual provides comprehensive instructions for the safe and effective use of your NEW SPA Far-Infrared Slimming Suit, Model Y-26. Please read this manual thoroughly before operation and retain it for future reference.

The Far-Infrared Slimming Suit is a heating body wrap designed to warm up tissues and accelerate circulation, aiding in increased metabolism and relaxation. It can be used as part of an anti-cellulite treatment and weight loss program.

Safety Information

Important: Always consult with a primary-care physician before using this product, especially if you have a disease or are using any prescription drugs.

• Use is inadvisable with systemic lupus, erythematosis, chronically hot and swollen joints, enclosed infections, predisposition to hemorrhage, multiple sclerosis, or during pregnancy.
• If you have a recent (acute) joint injury, do not heat the area for the first 48 hours after the injury.
• If you have metal pins, rods, artificial joints, or other surgical or silicone implants, consult your surgeon prior to using FIR, as metal implants generally reflect infrared rays.
• Discontinue FIR use immediately if you experience pain near any implants.

Indications for Use

The Far-Infrared Slimming Suit is indicated for:

• Weight loss support
• Improvement of skin conditions
• Relaxation

Product Overview

The NEW SPA Far-Infrared Slimming Suit is designed for therapeutic use, featuring strong ceramic heating wires embedded into its inner layer. It is constructed with a waterproof inner fabric for easy cleaning.

This image displays the complete Far-Infrared Slimming Suit in its unfolded state, highlighting the separate components for the torso, arms, and legs. The silver material and segmented design are visible.

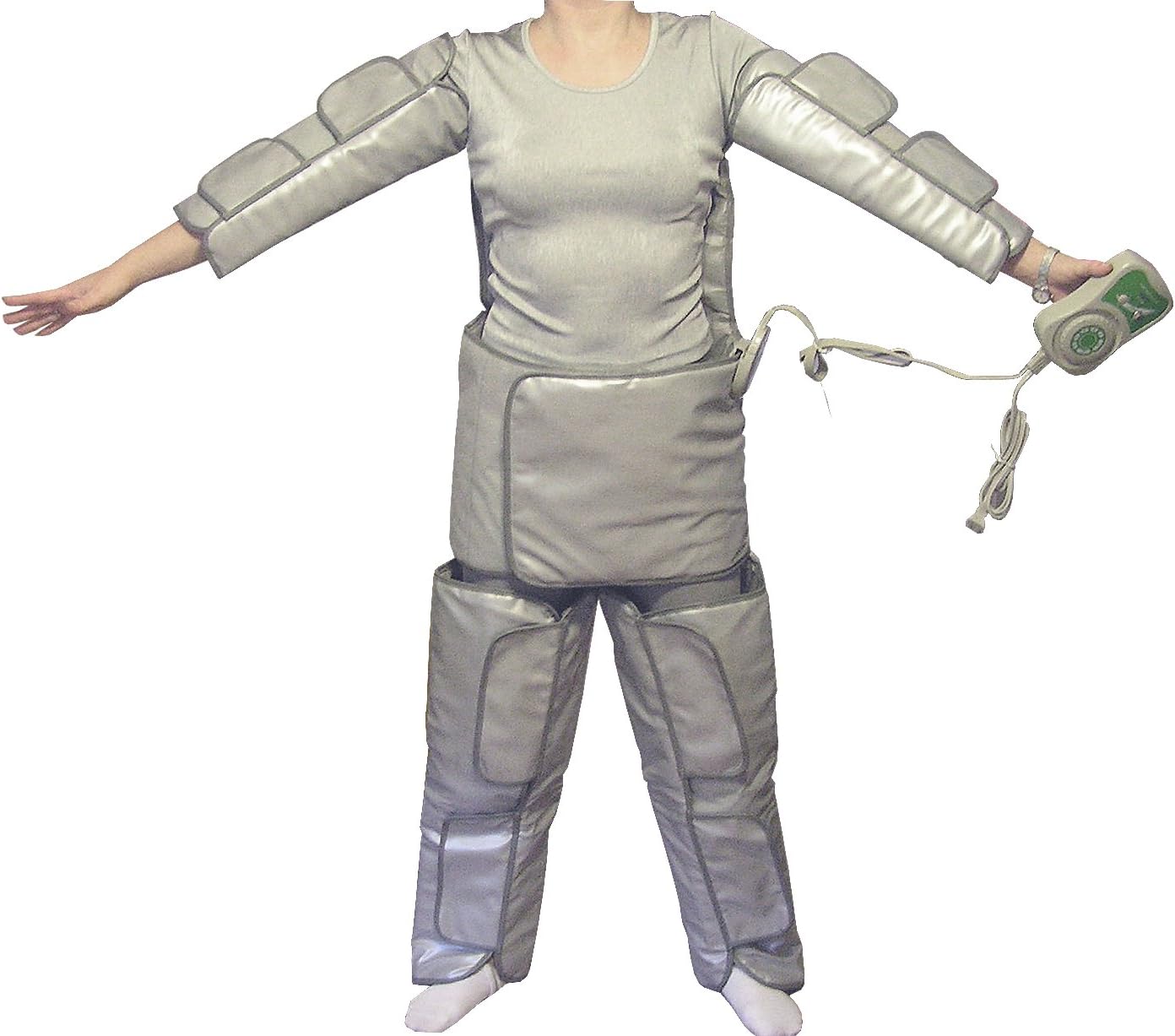

This image shows the Far-Infrared Slimming Suit being worn by an individual, illustrating how the different sections of the suit conform to the body for full coverage during a session.

This image features a close-up of the control unit for the slimming suit, displaying its digital display, temperature control dial, timing buttons, EMF indicator, and power button.

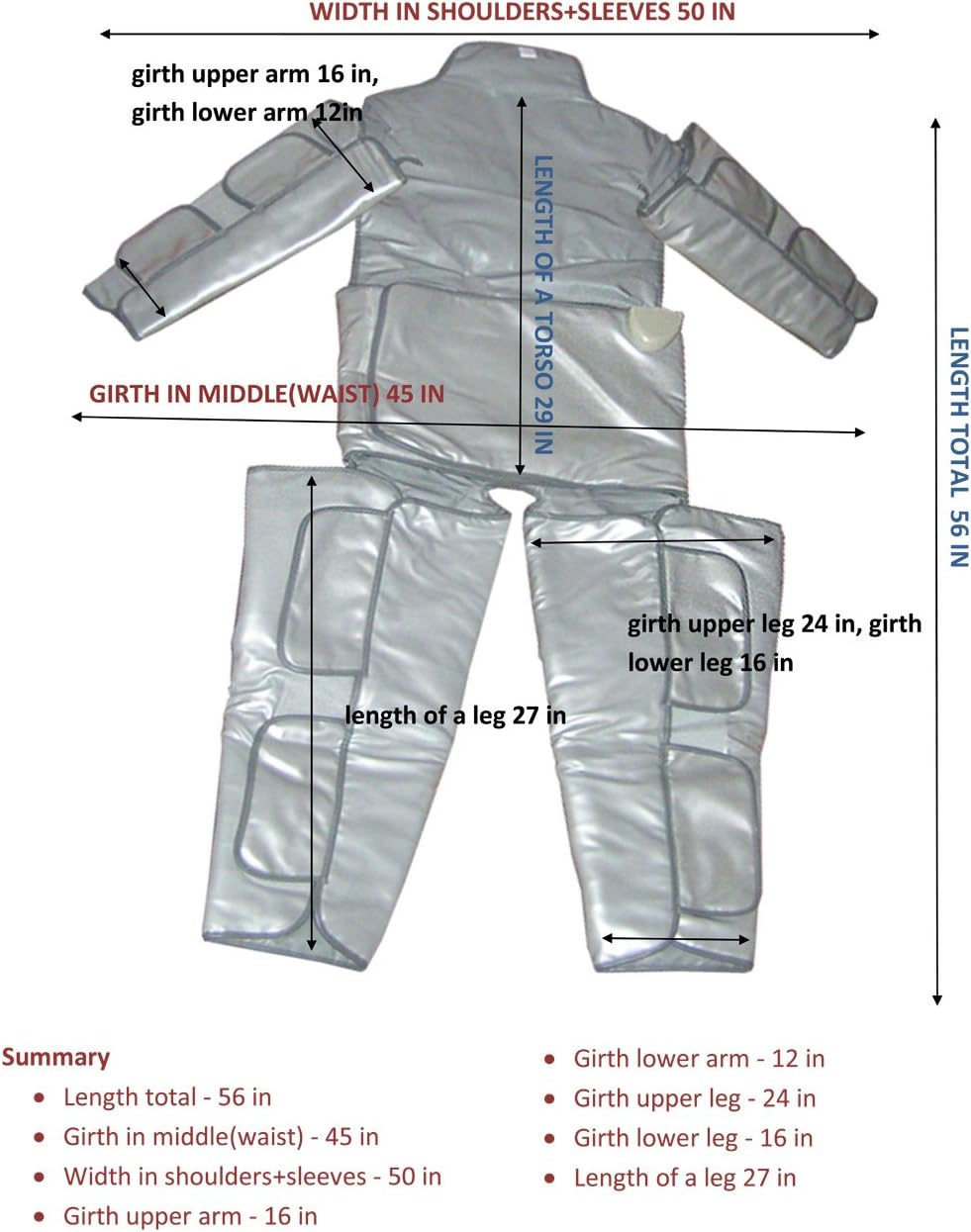

This image provides a detailed diagram of the slimming suit with key measurements indicated, including total length, waist girth, shoulder width, sleeve length, and leg girths, to assist users in verifying the correct size.

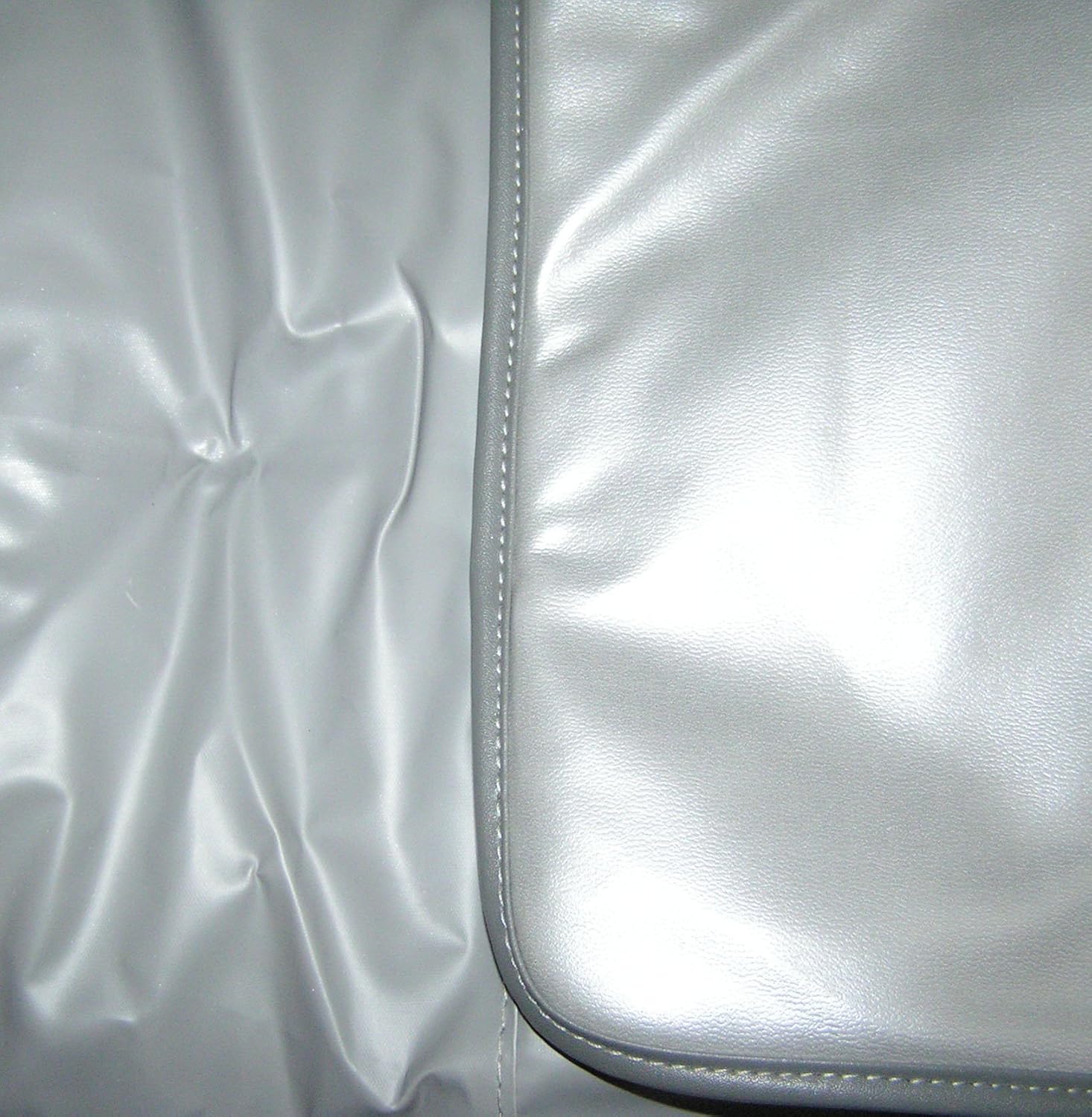

This image provides a detailed close-up of the Far-Infrared Slimming Suit's material, showcasing its texture and the quality of the stitching along the seams.

Setup

1. Unpack the Far-Infrared Slimming Suit and its control unit from the packaging.
2. Ensure the suit is clean and free from any damage before first use.
3. Connect the suit to the control unit securely.
4. Plug the control unit into a standard 110V US power outlet.
5. Place the client in a comfortable horizontal position on a flat surface, such as a treatment bed.
6. Carefully position the slimming suit around the client's body, ensuring full coverage and comfort.

Operating Instructions

The slimming suit is designed for treatment sessions where the user is resting in a horizontal position. It is not intended for active wear.

1. Power On: Press the 'Power' button on the control unit to turn on the device.
2. Set Temperature: Use the temperature control dial to set the desired temperature. The regulated temperature range is 86-140°F (30-60°C). Allow a few minutes for the suit to reach the set temperature.
3. Set Timing: Use the 'Timing' buttons to set the duration of the session.
4. Begin Session: Once the desired temperature and time are set, the session will begin. Monitor the client's comfort throughout the session.
5. End Session: The unit will automatically turn off after the set time. Alternatively, press the 'Power' button to manually end the session.
6. Post-Session: After the session, carefully remove the suit from the client.

Maintenance

• Cleaning: The waterproof inner fabric is easy to clean. Wipe down the interior and exterior of the suit with a damp cloth after each use. Use a mild, non-abrasive cleaner if necessary. Ensure the suit is completely dry before storage.
• Storage: Store the suit in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid folding the suit tightly to prevent damage to the heating elements.
• Inspection: Regularly inspect the suit and power cord for any signs of wear, tear, or damage. Do not use the product if any damage is observed.

Troubleshooting

If troubleshooting steps do not resolve the issue, please contact customer support.

Specifications

• Model Number: Y-26
• Brand: NEW SPA
• Material: Fabric (with waterproof inner lining)
• Color: Silver
• Power Supply: 110V, US Plug
• Regulated Temperature Range: 86-140°F (30-60°C)
• Special Feature: Detoxification through sweating
• Dimensions (approximate, refer to Figure 4 for details):
  • Total Length: 56 inches
  • Girth in Middle (Waist): 45 inches
  • Width in Shoulders + Sleeve Length: 50 inches
  • Girth Upper Arm Portion: 16 inches
  • Girth Lower Arm Portion: 12 inches
  • Girth Upper Leg Portion: 24 inches
  • Girth Lower Leg Portion: 16 inches
  • Leg's Length: 27 inches

Warranty and Support

For product support, inquiries, or warranty information, please contact NEW SPA customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Legal Disclaimer: This product is not intended to treat, cure, or diagnose any disease. Results may vary based on individual application and other factors. We are not responsible for any negative or damaging results obtained by proper or improper use of this product, to the maximum extent permitted by law.
