1. Safety Instructions
Read and understand all safety warnings and instructions before operating this electric hedge trimmer. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
1.1 General Power Tool Safety
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators.
- Personal Safety: Always wear eye protection. Use appropriate personal protective equipment such as hearing protection, non-skid safety shoes, and a hard hat when necessary. Stay alert, watch what you are doing, and use common sense when operating a power tool.
1.2 Hedge Trimmer Specific Safety
- Keep hands away from blades. Do not attempt to remove cut material or hold material to be cut when blades are moving.
- Hold the hedge trimmer by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord.
- Before use, inspect the power cord for damage or aging. If the cord is damaged, have it repaired by a qualified service agent.
- Ensure all guards and handles are properly fitted before use.
2. Product Overview
The RIBIMEX PRTH510A is an electric hedge trimmer designed for cutting and shaping hedges and shrubs. It features a 510 mm blade and a powerful 550W motor for efficient performance.

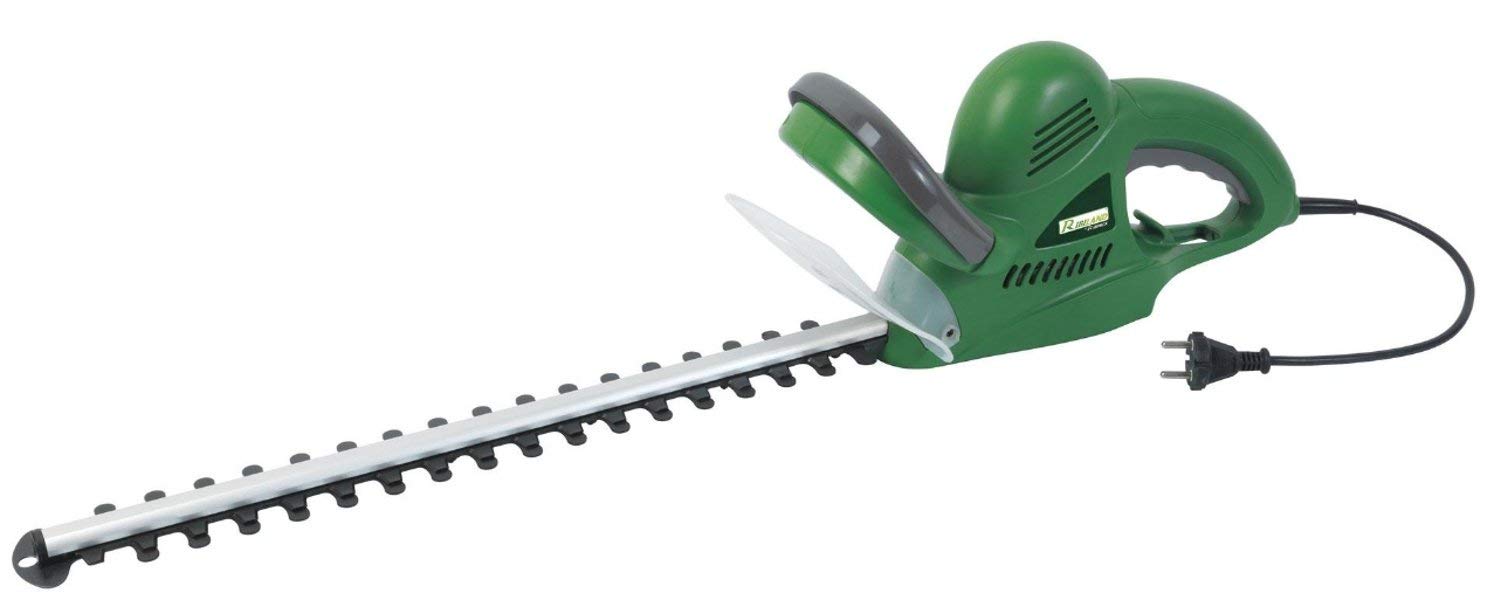

Figure 1: RIBIMEX PRTH510A Electric Hedge Trimmer. This image shows the overall design of the hedge trimmer, highlighting its main body, handle, and blade.
2.1 Key Components
- Blade: Dual-action cutting blade, 510 mm length.
- Front Handle: For stable two-hand operation.
- Rear Handle: Main gripping area with integrated safety switch.
- Safety Switch: Requires simultaneous activation with the main trigger for operation.
- Power Cord: Connects the tool to the electrical supply.
- Blade Guard: Protective cover for the blade when not in use.
3. Setup
Before first use, ensure the hedge trimmer is properly prepared.
3.1 Unpacking
- Carefully remove the hedge trimmer and all accessories from the packaging.
- Check for any damage that may have occurred during transit. Do not operate a damaged tool.
- Ensure all components listed in the packaging contents are present.
3.2 Power Connection
- Ensure the power switch is in the 'OFF' position before connecting to power.
- Connect the hedge trimmer's power cord to a suitable extension cord. Ensure the extension cord is rated for outdoor use and has sufficient gauge for the tool's power requirements.
- Plug the extension cord into a grounded 230V, 50Hz electrical outlet.
4. Operating
Follow these guidelines for safe and effective operation of your hedge trimmer.
4.1 Starting and Stopping
- To start the hedge trimmer, firmly grip both the front and rear handles.
- Press and hold the safety switch on the rear handle, then squeeze the main trigger. The blades will begin to move.
- To stop the hedge trimmer, release the main trigger. The blades will stop.
4.2 Cutting Techniques
- Horizontal Cutting: Hold the hedge trimmer with both hands, keeping the blade parallel to the ground. Move the trimmer in a sweeping motion along the top of the hedge.
- Vertical Cutting: For the sides of hedges, hold the trimmer vertically. Start from the bottom and work your way up, or vice versa, using a smooth, even motion.
- Avoid Overloading: Do not force the trimmer through thick branches. If the blades jam, release the trigger immediately and clear the obstruction.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your hedge trimmer.
5.1 Cleaning and Lubrication
- Disconnect from power before performing any maintenance.
- After each use, clean the blades with a stiff brush to remove sap and debris.
- Apply a light machine oil or blade lubricant along the entire length of the blade to prevent rust and ensure smooth operation.
5.2 Storage
- Store the hedge trimmer in a dry, secure place, out of reach of children.
- Always use the blade guard when storing the tool.
- Do not store the tool with the power cord wrapped tightly around it.
6. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hedge trimmer does not start | No power supply; Safety switch not engaged; Damaged power cord | Check power connection; Ensure both safety switch and trigger are pressed; Inspect cord for damage and replace if necessary. |
| Blades jam or cut poorly | Blades are dull or dirty; Overloading the tool; Obstruction in blades | Clean and lubricate blades; Sharpen blades if dull; Do not force the tool, clear obstructions. |
| Excessive vibration | Loose components; Damaged blade | Check all screws and fasteners; Inspect blade for damage and replace if necessary. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, contact customer support or a qualified service technician.
7. Specifications
Technical data for the RIBIMEX PRTH510A Electric Hedge Trimmer.
- Brand: RIBIMEX
- Model Number: RIBPRTH510A
- Power: 550 W
- Voltage: 230 V
- Frequency: 50 Hz
- Blade Length: 510 mm
- Cutting Width: 510 mm
- Power Source: Electric Cable
- Item Weight: 5 Kilograms
- Color: Green
- Material: Acacia (Note: This refers to specific components, not the blade material.)
- International Article Code: 03700194400323
8. Warranty and Support
Your RIBIMEX PRTH510A Electric Hedge Trimmer comes with a manufacturer's warranty and dedicated support.
8.1 Manufacturer's Warranty
This product is covered by a 2-year manufacturer's warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, neglect, unauthorized repairs, or normal wear and tear.
8.2 Customer Support
For technical assistance, warranty claims, or to order replacement parts, please contact your retailer or the RIBIMEX customer service department. Please have your model number (RIBPRTH510A) and proof of purchase available when contacting support.
Contact information for RIBIMEX can typically be found on their official website or on the product packaging.
