Remo 15" Vintage Coated Ambassador Snare Drumhead Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, use, and maintenance of your Remo 15" Vintage Coated Ambassador Snare Drumhead. Designed for drummers seeking focused mid-range tones and a soft feel, this drumhead offers versatility and durability.

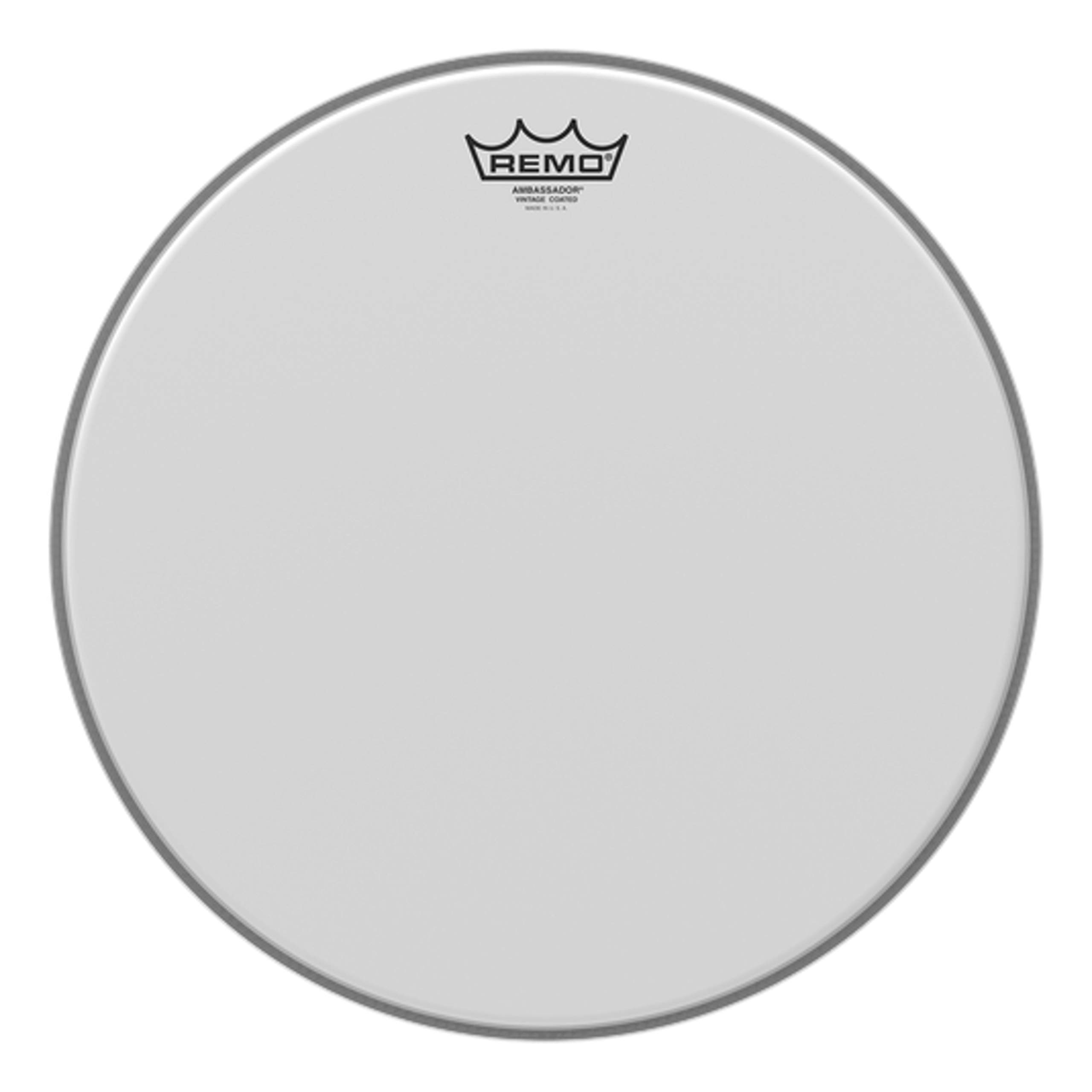

Figure 1: Remo 15-inch Vintage Coated Ambassador Snare Drumhead. This image shows the white coated surface and Remo branding.

2. Key Features

• Provides focused mid-range tones and a soft feel.
• Constructed with 7.5-mil and 3-mil Coated films, combined into a durable 2-ply design.
• Offers a versatile sound suitable for various drumming styles.
• Combines Diplomat feel, Emperor tone, and Ambassador durability.

3. Installation Guide

Proper installation is crucial for optimal sound and longevity of your drumhead.

1. Remove Old Drumhead: Loosen all tension rods evenly until the old drumhead can be removed. Carefully lift off the old head and the hoop.
2. Clean Bearing Edge: Inspect the drum's bearing edge for any debris, dust, or imperfections. Clean it thoroughly with a soft cloth to ensure a smooth surface for the new drumhead.
3. Place New Drumhead: Carefully place the new Remo Vintage Coated Ambassador drumhead onto the drum shell, ensuring it is centered. Place the hoop back over the drumhead.
4. Insert Tension Rods: Insert all tension rods through the hoop and into the lugs. Hand-tighten each rod until it makes contact with the hoop.
5. Initial Tensioning (Finger Tight): Using a drum key, turn each tension rod approximately one-half to one full turn in a star pattern (opposite rods) until the drumhead is finger-tight and seated evenly.
6. Seating the Head: Apply firm, even pressure to the center of the drumhead with your palm. You may hear a slight crackling sound as the head stretches and seats properly. Repeat this a few times.
7. Fine Tuning: Begin tuning by turning each tension rod a quarter turn at a time, maintaining the star pattern. Tap the drumhead near each tension rod to check for even pitch. Adjust until all areas produce a consistent tone.

4. Operating and Tuning

The Remo Vintage Coated Ambassador is designed to provide a balanced sound with good attack and sustain. Achieving the desired sound involves careful tuning.

• Snare Side Tuning: For a snare drum, the bottom (resonant) head also plays a critical role. Tune it slightly higher or lower than the batter head to achieve different sensitivities and responses from the snare wires.
• Snare Wire Adjustment: Adjust the tension of your snare wires to complement the drumhead's sound. Too tight can choke the drum; too loose can result in a flabby sound.
• Experimentation: Drum tuning is subjective. Experiment with different tension levels across the drumhead and snare wires to find the sound that best suits your musical style.

5. Maintenance and Care

To ensure the longevity and optimal performance of your drumhead, follow these maintenance guidelines:

• Regular Cleaning: Wipe the drumhead surface with a clean, dry, or slightly damp cloth to remove dust, stick residue, and fingerprints. Avoid harsh chemicals.
• Check Tension: Periodically check the tension of your drumhead. Temperature and humidity changes can affect tension, requiring minor adjustments.
• Inspect for Wear: Regularly inspect the drumhead for dents, tears, or excessive wear. Replace the drumhead when significant wear is observed to maintain sound quality.
• Storage: Store drums in a climate-controlled environment to prevent extreme temperature and humidity fluctuations, which can damage drumheads and shells.

6. Troubleshooting

Here are some common issues and their potential solutions:

• Uneven Sound/Ringing: This often indicates uneven tension. Re-tune the drumhead by tapping near each tension rod and adjusting until the pitch is consistent around the circumference.
• Lack of Sustain/Dead Sound: Ensure the drumhead is properly seated. If the issue persists, check for loose hardware or internal dampening that might be affecting resonance.
• Buzzing Snare Wires: Adjust the snare wire tension. If the buzz occurs only on certain notes, it might be sympathetic vibration from other instruments; try adjusting the snare drum's tuning slightly.
• Difficulty Tuning: Ensure the bearing edge of your drum is smooth and free of imperfections. A damaged bearing edge can prevent the drumhead from seating correctly.

7. Specifications

8. Warranty Information

This Remo drumhead is covered by the manufacturer's standard warranty. For specific details regarding warranty terms, coverage, and claims, please refer to the official Remo website or contact their customer service directly.

9. Customer Support

Should you require further assistance, have questions not covered in this manual, or need technical support, please visit the official Remo website or contact their customer service department. You can often find FAQs, additional resources, and contact information on their support pages.
