Kings Brand Furniture Twin Size Black Metal Daybed with Pop-Up Trundle Instruction Manual

1. Product Overview

This manual provides instructions for the assembly, operation, and maintenance of your Kings Brand Furniture Twin Size Black Metal Daybed with Pop-Up Trundle. This product features an all-steel frame designed for durability and includes a collapsible trundle that fits beneath the daybed.

The daybed includes a platform with metal slats for mattress support, eliminating the need for a box spring. The pop-up trundle is designed to accommodate a mattress up to 11 inches in height.

2. Safety Information

Please read all safety warnings and instructions carefully before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Weight Limit: Do not exceed a weight limit of 450 pounds on the daybed or trundle.
• Assembly: Ensure proper assembly to prevent structural instability and potential entrapment hazards.
• Trundle Use: Always secure the trundle in its intended position (either collapsed or fully extended and locked) when in use.
• Sharp Edges: Inspect the frame for any sharp edges after assembly.
• Children: Supervise children around the daybed and trundle, especially during operation of the pop-up mechanism.

3. Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

• Daybed Frame Components (various metal bars and legs)
• Metal Slats (13 pieces)
• Pop-Up Trundle Unit (pre-assembled)
• Hardware Pack (screws, washers, hex keys)
• Assembly Instructions

4. Setup and Assembly

Assembly is required for the daybed frame. The trundle unit typically comes pre-assembled. It is recommended to have two people for assembly, though it can be done by one person.

4.1 Tools Required

• Hex keys (usually included in hardware pack)
• Phillips head screwdriver (not always included, may be needed for some fasteners)

4.2 Assembly Steps

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratching.
2. Assemble Daybed Frame:

   Connect the main frame sections using the provided screws and washers. Do not fully tighten screws until all sections are loosely assembled.



   Image: The main daybed frame, showing the metal slat supports. This image illustrates the structure before a mattress is placed.

3. Install Metal Slats:

   Place the 13 metal slats into the designated slots on the daybed frame. Secure each slat with screws as indicated in the detailed assembly instructions. Ensure all slats are evenly spaced and firmly attached for proper mattress support.

4. Tighten All Fasteners: Once the entire daybed frame is assembled and all slats are in place, go back and securely tighten all screws. Avoid over-tightening, as some screws may be soft.
5. Position Trundle: Slide the pre-assembled pop-up trundle unit under the daybed frame. Ensure it moves freely and fits correctly.

Note: The daybed frame dimensions are approximately 77.5"L x 41"W x 17"H (clearance beneath bed is 16"H).

Image: A diagram showing the overall dimensions of the daybed frame, including length (77.5"), width (41"), and height (18").

5. Operating Instructions

5.1 Using the Daybed

Place a twin-size mattress directly onto the metal slats of the daybed frame. No box spring is required.

5.2 Operating the Pop-Up Trundle

The trundle unit is designed to be stored compactly under the daybed and can be raised to the same height as the daybed for use as a second sleeping surface.

1. To Extend: Pull the trundle unit out from under the daybed.
2. To Raise: Locate the lifting mechanism (often a handle or lever) on the trundle frame. Carefully lift the trundle upwards. The spring-loaded mechanism will assist in raising it. Ensure the legs fully extend and lock into place. Double-check that the locking pins or levers are engaged to prevent accidental collapse.
3. To Collapse: Disengage the locking mechanism (usually by pressing a button or lever) and gently lower the trundle frame. Guide the legs back into their folded position.
4. To Store: Once collapsed, push the trundle unit back under the daybed.

The trundle, when open, measures approximately 72.5"L x 39"W x 17"H. When collapsed, it is approximately 72.5"L x 39"W x 4"H.

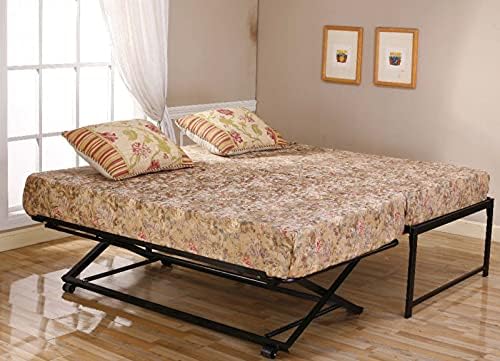

Image: The daybed with the pop-up trundle fully extended and raised to the same height, creating a larger sleeping area.

Image: A detailed view of the trundle's underside, showing the pop-up mechanism, wheels, and support structure.

6. Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners. For any fabric components (e.g., mattress covers), follow "Hand Wash Only" instructions.
• Hardware Check: Periodically inspect all screws and bolts to ensure they remain tight. Re-tighten as necessary to maintain stability.
• Trundle Mechanism: If the pop-up trundle mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with mattresses or bedding.
• Rust Prevention: If the product is exposed to high humidity, consider applying a clear coat to metal parts to prevent surface rust.

7. Troubleshooting

Issue: Missing or Damaged Parts

Solution: Contact Kings Brand Furniture customer support immediately for replacement parts. Do not attempt to assemble with missing components.

Issue: Screws Stripping During Assembly

Solution: Use caution when tightening screws. Avoid over-tightening, especially with the provided hex keys. If a screw strips, contact customer support for replacements.

Issue: Trundle is Difficult to Raise or Lower

Solution: Ensure the trundle mechanism is free of obstructions. Check that the locking pins are fully disengaged before lowering. A small amount of silicone lubricant on the moving parts may help. Ensure the trundle is pulled out completely before attempting to raise it.

Issue: Bed Frame or Trundle Feels Unstable or Noisy

Solution: Re-check all assembly connections and tighten any loose screws. Ensure all metal slats are properly seated and secured. Verify that the trundle's locking mechanism is fully engaged when raised.

Issue: Mattress Does Not Fit

Solution: This daybed and trundle are designed for standard twin-size mattresses. The trundle accommodates mattresses up to 11 inches in height. Verify your mattress dimensions.

8. Specifications

9. Warranty and Customer Support

Specific warranty information for this product is not provided in the available documentation. Please refer to your purchase receipt or contact the retailer for details regarding warranty coverage.

For further assistance, missing parts, or to report any issues, please contact Kings Brand Furniture customer support. Contact information can typically be found on the product packaging or the retailer's website.
