Hansgrohe iBox Universal Plus Rough-in Valve 01850181 Instruction Manual

1. Product Overview

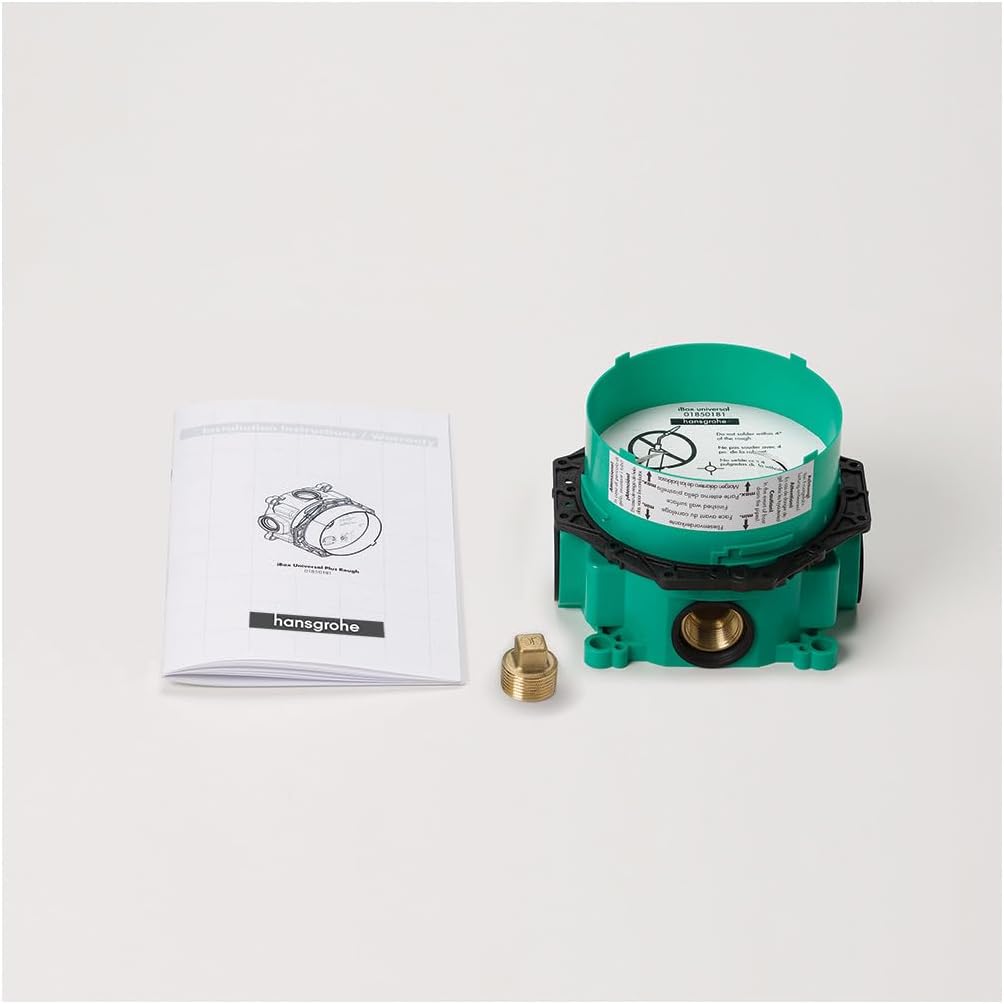

The Hansgrohe iBox Universal Plus Rough-in Valve is a foundational component for your shower system, designed for both new installations and renovations. This universal rough-in valve is compatible with all standard Hansgrohe and AXOR shower trims, offering flexibility in selecting your desired finish and functional options.

It provides a single rough-in solution capable of supplying water flow to multiple outlets, such as a showerhead, tub spout, or handheld shower. The design incorporates rubber seals and a trim carrier plate to minimize in-wall vibrations and reduce noise transfer.

The iBox Universal Plus features standard 3/4-inch pipe inlets and can be adapted for 1/2-inch pipes with appropriate reducers (not included). It is compatible with all common pipe types, including brass, PVC, plastics, and copper.

2. Setup and Installation

Installation of the Hansgrohe iBox Universal Plus Rough-in Valve should be performed by a licensed plumber to ensure compliance with all local, state, and federal plumbing codes and regulations.

2.1 Key Installation Considerations

• Orientation: The iBox must be installed in the correct orientation. Look for the word "TOP" molded into the housing to ensure it is positioned vertically. While it can be rotated 180 degrees, a 90-degree rotation is incorrect and will require re-installation.
• Pipe Connections: All connections are designed for threaded or twisted attachment, not soldering directly to the iBox. If using copper pipes, solder short segments and 90-degree bend connectors elsewhere, then twist them onto the iBox. Alternatively, PEX tubing can be used.
• Wall Depth: The PVC housing is designed to penetrate the finished wall surface. It is lightweight and can be trimmed to precisely fit your finished wall depth. The housing mounts securely to wall studs and accommodates various wall depths and materials.
• Service Stops: The integrated service stops allow for direct access to water shut-off valves and servicing without requiring tile removal.
• Outlets: The iBox includes two inlets and two outlets, supporting two shower functions. A separate diverter (sold separately) is required for three or more outlets.
• Maximum Pressure: Note the maximum pressure of 65 psi.

3. Operation and Compatibility

The iBox Universal Plus serves as the core of your shower system. Once installed, it provides the necessary rough-in for various Hansgrohe and AXOR shower trims. The selection of the trim determines the operational functionality of your shower.

3.1 Trim Compatibility

The iBox is compatible with a wide range of shower trims, including:

• Hansgrohe S Thermostatic Trim with Volume Control (e.g., 04230000)
• Hansgrohe S Pressure Balance Trim (e.g., 04233000)
• Hansgrohe ShowerSelect 2-function Thermostatic Trim (e.g., 15763001)

The trim kit (and diverter, if needed) is sold separately and connects directly to the iBox to control water flow and temperature.

4. Maintenance

The Hansgrohe iBox Universal Plus is designed for long-term reliability and ease of service. Its PVC housing allows for direct access to water shut-off valves and internal components for servicing without the need to remove tiles from the finished wall.

Regular maintenance typically involves checking for leaks and ensuring all connections remain secure. If any issues arise with water flow or temperature control, the service stops enable isolation of the valve for inspection or replacement of internal cartridges, which are part of the trim kit.

5. Troubleshooting

This section addresses common issues that may arise during or after installation of the iBox Universal Plus.

5.1 Water Flow or Temperature Issues

• Check Trim Cartridge: Most water flow or temperature problems originate from the trim's cartridge. Refer to the specific trim's instruction manual for troubleshooting and replacement procedures.
• Service Stops: Utilize the integrated service stops to shut off water to the iBox for safe inspection or repair of the trim's internal components.

5.2 Leaks

• Connection Points: Ensure all pipe connections to the iBox are properly tightened and sealed.
• Wall Penetration: Verify that the PVC housing is correctly trimmed and sealed where it penetrates the finished wall surface to prevent water intrusion.

5.3 Noise

• Vibrations: The iBox is designed with rubber seals to reduce in-wall vibrations. Ensure the unit is securely mounted to wall studs as per installation instructions.
• Water Pressure: Excessive water pressure can sometimes cause noise. Ensure your home's water pressure is within acceptable limits (maximum 65 psi for this unit).

6. Specifications

7. Warranty and Support

7.1 Warranty Information

Hansgrohe, Inc. warrants to the original consumer purchaser that Hansgrohe products will be free from defects in material and workmanship for as long as the original consumer purchaser owns both the product and the home in which the product was originally installed. For commercial purchasers, the warranty period is one (1) year from the date of purchase.

The warranty period for products in Rubbed Bronze, Matte Black, and Matte White finishes is three (3) years from the date of purchase. This warranty is non-transferable.

This warranty does not cover Hansgrohe products purchased from unauthorized sellers, unless otherwise prohibited by law. Authorized sellers can be found on Hansgrohe branded websites. Additional warranty restrictions apply; please refer to the manufacturer's website for full warranty details.

7.2 Customer Support

For technical assistance, warranty claims, or further information, please visit the official Hansgrohe website or contact their customer support directly. It is recommended to have your product model number (01850181) and proof of purchase available when contacting support.
