Mann Filter HD513/11 Oil Filter Element User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Mann Filter HD513/11 Oil Filter Element. Adhering to these guidelines will ensure optimal performance and longevity of the filter and the system it serves.

2. Product Overview

The Mann Filter HD513/11 is a high-quality oil filter element designed to remove contaminants from engine oil, ensuring clean lubrication for critical engine components. Its robust construction and efficient filtration media contribute to engine protection and extended oil life.

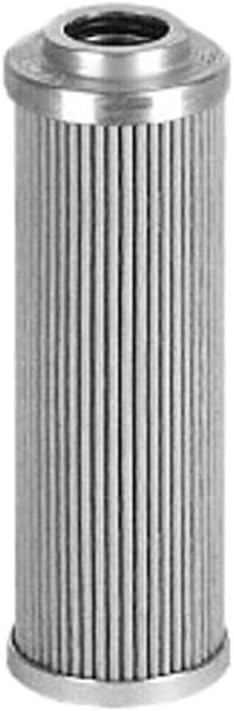

Figure 2.1: Front view of the Mann Filter HD513/11 Oil Filter Element, showing its cylindrical shape and pleated media.

Key Features:

• Height: 159 mm
• Inner Diameter: 24 mm
• Outer Diameter: 50 mm
• Efficient filtration of oil contaminants.
• Durable construction for reliable performance.

Figure 2.2: Close-up view of the filter's pleated filtration media, designed for maximum surface area and contaminant capture.

3. Setup and Installation

Proper installation is crucial for the oil filter's effectiveness and to prevent leaks. Always refer to your vehicle or equipment's service manual for specific instructions and safety precautions.

Installation Steps:

1. Safety First: Ensure the engine is off and cool. Use appropriate personal protective equipment (PPE) such as gloves and eye protection.
2. Locate Filter Housing: Identify the oil filter housing on your engine.
3. Drain Oil (if necessary): If performing an oil change, drain the old engine oil according to your vehicle's manual.
4. Remove Old Filter: Carefully open the filter housing and remove the old filter element. Be prepared for residual oil to spill. Dispose of the old filter and oil responsibly.
5. Clean Housing: Clean the inside of the filter housing and inspect the O-rings or gaskets for wear. Replace them if necessary (new O-rings often come with the new filter).
6. Install New Filter: Insert the new Mann Filter HD513/11 element into the housing, ensuring it seats correctly.
7. Lubricate O-rings: Lightly lubricate any new O-rings with clean engine oil before reassembling the housing.
8. Reassemble Housing: Securely close the filter housing according to manufacturer's torque specifications. Do not overtighten.
9. Refill Oil: If oil was drained, refill the engine with the recommended type and amount of new engine oil.
10. Check for Leaks: Start the engine and let it run for a few minutes. Check for any oil leaks around the filter housing. Turn off the engine and recheck the oil level.

4. Operating Principles

The Mann Filter HD513/11 operates as a critical component within the engine's lubrication system. Engine oil is continuously circulated through the filter element, where the specialized media traps harmful particles such as dirt, metal shavings, and carbon deposits. This process ensures that only clean oil reaches sensitive engine parts, minimizing wear and extending the lifespan of the engine.

5. Maintenance

Regular replacement of the oil filter element is essential for maintaining engine health. A clogged or inefficient filter can restrict oil flow, leading to increased engine wear and reduced performance.

Replacement Schedule:

• Always follow the oil and filter change intervals recommended by your vehicle or equipment manufacturer.
• As a general guideline, it is often recommended to replace the oil filter every time the engine oil is changed.
• Operating in severe conditions (e.g., extreme temperatures, dusty environments, heavy towing) may necessitate more frequent filter changes.

Disposal:

Used oil filters contain residual oil and should be disposed of responsibly according to local environmental regulations. Many auto parts stores and recycling centers accept used oil filters.

6. Troubleshooting

While oil filters are generally reliable, issues can arise. Here are common problems and their potential solutions:

7. Specifications

Detailed technical specifications for the Mann Filter HD513/11 Oil Filter Element:

Figure 7.1: Dimensions of the Mann Filter HD513/11, showing height, inner, and outer diameters in millimeters.

8. Warranty and Support

For information regarding warranty coverage, technical support, or further inquiries about the Mann Filter HD513/11 Oil Filter Element, please refer to the official Mann Filter website or contact their customer service directly. Always retain your proof of purchase for warranty claims.

Official Mann Filter Website: www.mann-filter.com
