Wesco Folding Platform Cart Instruction Manual

1. Introduction

This manual provides instructions for the safe and efficient use of your Wesco Folding Platform Cart. Please read this manual thoroughly before operating the cart and retain it for future reference.

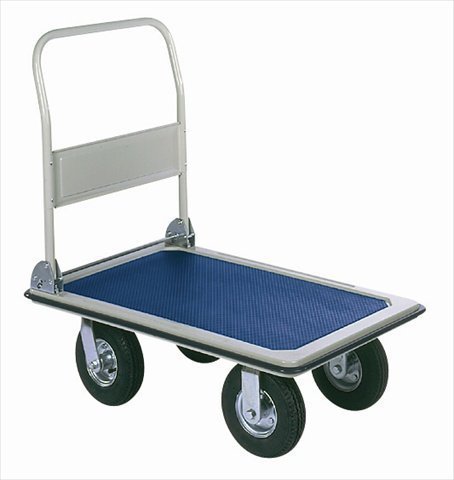

This image displays the Wesco Folding Platform Cart in its operational, unfolded state. The cart features a gray metal frame, a blue non-skid vinyl deck, and four wheels, two of which are swivel casters for maneuverability. The handle is shown in the upright position, ready for use.

2. Safety Instructions

To ensure safe operation and prevent injury or damage, observe the following safety guidelines:

• Always operate the cart on level, stable surfaces.
• Do not exceed the maximum load capacity of 440 lbs (200 kg).
• Distribute loads evenly across the platform to maintain stability.
• Ensure the handle is securely locked in the upright position before moving the cart.
• Keep hands and feet clear of moving parts, especially during folding and unfolding.
• Do not use the cart to transport people.
• Inspect the cart for damage or loose parts before each use. Do not use if damaged.

3. Setup and Assembly

Your Wesco Folding Platform Cart comes pre-assembled and requires minimal setup.

3.1 Unfolding the Handle

1. Place the cart on a flat, stable surface with the deck facing upwards.
2. Locate the handle locking mechanism at the base of the handle.
3. Press or pull the release lever/button (if present) and lift the handle upwards until it clicks securely into the upright position.
4. Verify the handle is firmly locked before use.

3.2 Folding the Handle for Storage

1. Ensure the cart is empty and on a flat surface.
2. Locate the handle locking mechanism.
3. Press or pull the release lever/button and gently push the handle downwards towards the platform until it lies flat.
4. Ensure the handle is fully folded for compact storage.

4. Operating Instructions

4.1 Loading the Cart

• Place items centrally on the non-skid deck surface.
• Avoid stacking items too high, which could obstruct your view or cause instability.
• Ensure the load does not exceed the cart's capacity of 440 lbs (200 kg).

4.2 Moving the Cart

• Push the cart using the handle. Avoid pulling, as this can reduce control and visibility.
• Navigate slowly around corners and over uneven terrain.
• Be aware of your surroundings and any obstacles.

4.3 Braking

The cart does not feature a dedicated braking mechanism. To stop, reduce forward momentum and hold the handle firmly. For prolonged stops on inclines, secure the cart to prevent rolling.

5. Maintenance

5.1 Cleaning

Wipe the stainless steel frame and vinyl deck with a damp cloth. Avoid abrasive cleaners that could damage the finish or deck surface.

5.2 Caster Inspection

Regularly check the TPR (rubber) casters for wear, damage, or debris accumulation (e.g., string, hair) wrapped around the axle. Ensure all caster bolts are tight. Lubricate swivel casters periodically with a silicone-based spray if movement becomes stiff.

5.3 Storage

Store the cart in a dry, protected area. Fold the handle for compact storage when not in use to save space and protect the handle mechanism.

6. Troubleshooting

Issue: Handle does not lock in upright position.

Solution: Ensure the handle is fully extended and the locking mechanism is engaged. Check for any obstructions preventing the mechanism from engaging properly.

Issue: Cart is difficult to steer or casters are stiff.

Solution: Inspect casters for debris (e.g., string, hair) wrapped around the axle. Clean as necessary. Lubricate swivel casters with a silicone-based spray if needed to improve movement.

Issue: Cart is unstable when loaded.

Solution: Verify the load is evenly distributed across the platform and within the specified weight capacity of 440 lbs. Reduce load if necessary to ensure stability.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or replacement parts, please contact Wesco customer service. Refer to your purchase documentation or the official Wesco website for current contact details.

You can also visit the Wesco Store on Amazon for more product information.

9. Product Videos

No official product videos are available for this item at this time.
