Torklift F3001 Frame Mounted Tie-Down User Manual

Product Overview

The Torklift F3001 Frame Mounted Tie-Down is designed to provide a secure and stable connection for truck campers. This system is engineered to mount directly to your vehicle's frame, offering superior strength and stability compared to bed-mounted or bumper-mounted tie-downs. Its unique design ensures that the tie-down points are virtually undetectable when not in use, maintaining your vehicle's aesthetics and ground clearance.

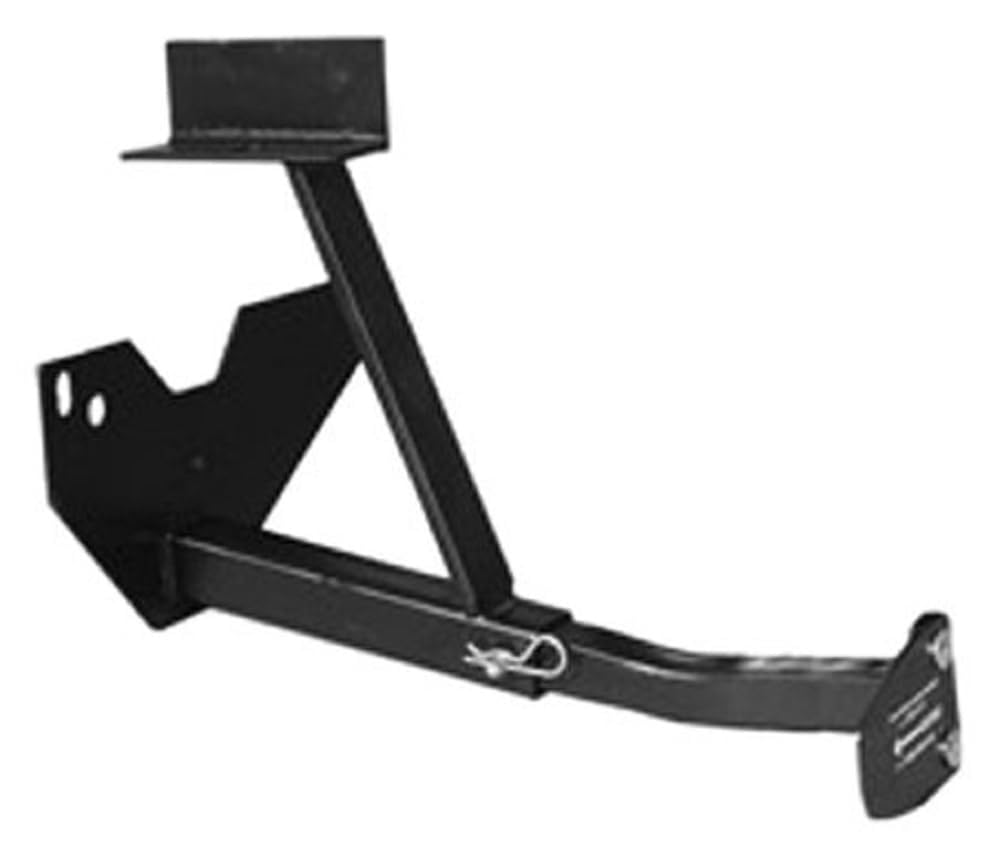

Image: Torklift F3001 Frame Mounted Tie-Down. This image shows the black metal frame-mounted tie-down component, featuring a main horizontal bar with an angled support and a vertical mounting plate. A pin and clip are visible on the horizontal bar, indicating a removable insert design.

Package Contents

Upon opening the package, you should find the following main component:

• Torklift F3001 Frame Mounted Tie-Down (Main Component)

Please inspect all components for any signs of damage or missing parts before proceeding with installation.

Setup and Installation

The Torklift F3001 tie-downs are designed for a precise fit on specific vehicle makes and models. This ensures optimal performance and maintains vehicle integrity. Installation typically involves bolting the tie-down directly to the vehicle's frame without the need for drilling.

Pre-Installation Checklist:

• Verify the F3001 model is compatible with your vehicle's year, make, and bed length (e.g., Ford 1997-2003 F150/F250 LD Round Body 8 & 6.5 feet bed length, Ford 1999-2004 F250/F350 8 & 6.75 feet bed length).
• Gather necessary tools (e.g., wrenches, sockets, torque wrench).
• Ensure the vehicle is on a level surface and properly secured.
• Review the detailed installation instructions provided with your specific product packaging. These instructions often include diagrams and specific steps for your vehicle model, including specialized tools like a fish wire for bolt placement.

General Installation Steps (Consult specific instructions for details):

1. Locate the designated mounting points on your vehicle's frame.
2. Position the tie-down bracket against the frame.
3. Insert bolts through the frame and bracket, often utilizing a fish wire tool to guide bolts in hard-to-reach areas.
4. Securely fasten all nuts and bolts, tightening to the manufacturer's specified torque settings.
5. Ensure the tie-down is flush with the frame and does not compromise ground clearance.

Note: Professional installation is recommended if you are unfamiliar with vehicle modifications.

Operating Instructions

The Torklift F3001 system operates with four independent tie-down points, similar to a receiver-type trailer hitch. This design allows for easy attachment and removal of your truck camper.

Attaching Your Camper:

1. Slide the camper onto your truck bed.
2. Insert the appropriate turnbuckle extensions (e.g., Torklift FastGun turnbuckles, sold separately) into the receiver points of the F3001 tie-downs.
3. Connect the turnbuckles to your camper's tie-down points.
4. Adjust the turnbuckles to apply even tension, securing the camper firmly to the truck. Ensure proper tension to prevent movement without over-tightening, which could damage the camper or truck frame.

Removing Your Camper:

1. Release the tension on all four turnbuckles.
2. Remove the turnbuckle extensions from the F3001 receiver points.
3. The F3001 system remains installed on the truck frame, with the receiver points being virtually undetectable when the extensions are removed.

Maintenance

Regular maintenance will ensure the longevity and safe operation of your Torklift F3001 Frame Mounted Tie-Downs.

• Periodic Inspection: Regularly inspect all components for signs of wear, corrosion, or damage, especially after long trips or heavy use.
• Bolt Tightness: Check the tightness of all mounting bolts periodically. Re-torque to manufacturer specifications if necessary.
• Cleaning: Keep the tie-downs clean from dirt, salt, and road debris. A simple wash with soap and water, followed by drying, is usually sufficient.
• Corrosion Protection: If operating in corrosive environments (e.g., salted roads, coastal areas), consider applying a rust-inhibiting spray to exposed metal surfaces.

Troubleshooting

This section addresses common issues you might encounter with your Torklift F3001 Frame Mounted Tie-Downs.

Specifications

Warranty Information

Specific warranty details for the Torklift F3001 Frame Mounted Tie-Down are not provided in this manual. Torklift products typically come with a manufacturer's warranty. For the most accurate and up-to-date warranty information, please refer to the documentation included with your product or visit the official Torklift International website.

Customer Support

If you have questions, require technical assistance, or need to report an issue with your Torklift F3001 Frame Mounted Tie-Down, please contact Torklift International customer support. Contact information can typically be found on the official Torklift website or in the product packaging.

For additional resources, including installation videos or FAQs, please visit the Torklift International website.
