Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Everpure EV9000-92 Designer Series Drinking Water Faucet. This faucet is designed to deliver premium quality filtered water when connected to an Everpure commercial-grade water filtration system. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Product Features
- Sleek, lead-free, and versatile design.
- Forged brass construction ensures durability.
- Aerator tip provides an even, clear stream of filtered water.
- 0.5 GPM (Gallons Per Minute) flow rate.
- Antique Wine finish, part of a selection of beautiful finishes designed to complement modern kitchen aesthetics.

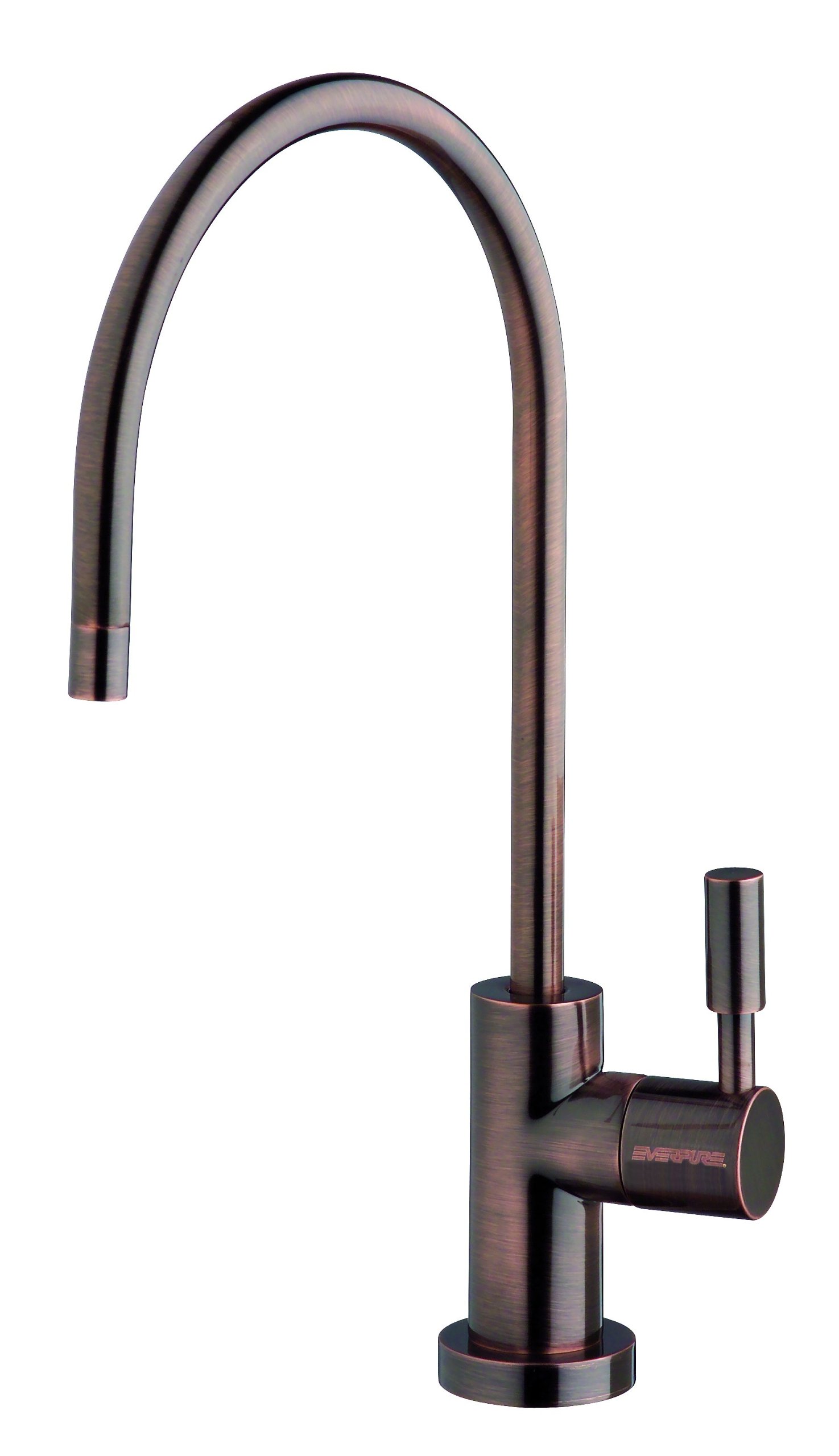

Figure 1: Everpure EV9000-92 Designer Series Drinking Water Faucet, Antique Wine. This image displays the elegant design and finish of the faucet.
Safety Information
Please observe the following safety precautions during installation and use:
- Always turn off the main water supply before beginning any plumbing work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- Ensure all connections are secure to prevent leaks.
- Do not overtighten connections, as this can damage components.
- If you are unsure about any step, consult a qualified plumber.
- This faucet is designed for cold water use only.
Package Contents
Verify that all components are present before beginning installation:
- Everpure EV9000-92 Drinking Water Faucet (Antique Wine)
- Mounting hardware (washers, nuts)
- Connection tubing/fittings (may vary based on filtration system)
- Installation instructions (this manual)
Setup and Installation
This faucet is designed for single-hole deck-mount installation and connects to an external water filtration system (sold separately).
Tools Required (Not Included):
- Adjustable wrench
- Basin wrench (if needed for tight spaces)
- Drill with appropriate bit (if drilling a new hole)
- Plumber's putty or silicone sealant
- Teflon tape
Pre-Installation:
- Turn off the main water supply to your kitchen sink.
- Clear the area under the sink to allow for easy access.
- If replacing an existing faucet, remove it and clean the mounting surface.
- Ensure the mounting hole on your countertop is suitable for a single-hole faucet.
Installation Steps:
- Prepare the Faucet: Apply a thin bead of plumber's putty or silicone sealant around the base of the faucet where it will meet the countertop.
- Mount the Faucet: Insert the faucet shank through the mounting hole in the countertop. Ensure the faucet is properly oriented.
- Secure from Below: From underneath the sink, slide the rubber washer, then the metal washer, and finally the mounting nut onto the faucet shank. Hand-tighten the nut, then use a basin wrench or adjustable wrench to firmly secure the faucet to the countertop. Do not overtighten.
- Connect to Filtration System: Attach the water supply line from your Everpure filtration system to the inlet connection on the faucet shank. Use Teflon tape on threaded connections and tighten securely with a wrench. Refer to your filtration system's manual for specific connection details.
- Check for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If leaks are present, tighten the connections slightly until they stop.
- Flush the System: Open the faucet handle and allow water to run for several minutes to flush out any air or debris from the lines.
Figure 2: Example of an under-sink water filtration system setup. The Everpure faucet connects to such a system to provide filtered water.
Operating Instructions
Your Everpure EV9000-92 faucet is simple to operate:
- To dispense filtered water, lift the single handle.
- To stop the water flow, push the handle down.
- The spout can be rotated to direct the water flow as needed.
Maintenance
Proper maintenance will ensure the longevity and appearance of your faucet:
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Aerator Maintenance: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the tip of the spout, clean any debris, and rinse thoroughly before reattaching.
- Filter Replacement: This faucet is part of a filtration system. Refer to your Everpure water filtration system's manual for instructions on filter replacement schedules and procedures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Clogged aerator; Clogged filter in filtration system; Kinked supply line. | Clean or replace aerator. Replace water filter (refer to filtration system manual). Check supply lines for kinks and straighten. |
| Leaking at faucet base | Loose mounting nut; Damaged O-rings/sealant. | Tighten mounting nut from underneath the sink. If leak persists, disassemble, inspect O-rings, and reapply plumber's putty or silicone sealant. |
| Leaking at connections | Loose fittings; Insufficient Teflon tape. | Tighten connections. Disassemble, reapply Teflon tape, and re-tighten. |
| No water flow | Water supply turned off; Severely clogged filter. | Ensure main water supply is on. Check and replace filtration system filter. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | EV9000-92 |
| Brand | Everpure |
| Color | Antique Wine |
| Material | Forged Brass |
| Finish Type | Polished |
| Mounting Type | Deck Mount (Single Hole) |
| Number of Handles | 1 |
| Special Feature | Lead Free |
| Flow Rate | 0.5 GPM |
| Item Weight | 1.85 pounds |
| Package Dimensions | 14.2 x 7 x 1.4 inches |
| Spout Design | Gooseneck high-arc |
Warranty Information
This Everpure faucet is warranted to be free and clear of defects in material and workmanship for a period of 5 years from the date of purchase. The coated finish is warranted for 3 years. After 3 years, the brightness of the coating may vary depending on local water conditions and/or cleaning agents used. This warranty covers manufacturing defects under normal use and service. For warranty claims, please retain your proof of purchase and contact customer support.
Customer Support
If you have any questions, require assistance with installation, or need to report a problem, please contact Everpure customer support. For the most current contact information, please visit the official Everpure website or refer to the packaging materials.
