Fisher-Price Newborn-to-Toddler Portable Rocker T2518 Instruction Manual

1. Introduction

The Fisher-Price Newborn-to-Toddler Portable Rocker T2518 is designed to grow with your child, offering versatile use from infancy through toddlerhood. It functions as an infant seat, a stationary infant seat with interactive toys, and a toddler rocking chair. This manual provides essential information for safe assembly, operation, and maintenance of your product.

2. Important Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Fall Hazard: A child's movement can slide the product. Never use this product on elevated surfaces. Always use on the floor.
• Suffocation Hazard: Infants have suffocated when bouncers or rockers tipped over on soft surfaces. NEVER use on a bed, sofa, cushion, or other soft surface.
• Always use the restraint system. Adjust to fit snugly.
• Never leave child unattended.
• Do not use this product if it is damaged or broken.
• Do not use this product for sleeping. If your child falls asleep, move them to a firm, flat sleep surface.
• Do not lift the product by the toy bar. The toy bar is not designed to hold the weight of the child.
• Maximum weight capacity for this product is 40 pounds (18 kg).

3. Assembly and Setup

Before assembly, ensure all parts are present. Refer to the included assembly guide for detailed step-by-step instructions. The rocker requires some assembly and the installation of batteries for the vibration feature.

3.1. Infant Rocker Mode

This mode is suitable for newborns and infants. The low-profile frame provides a comfortable and secure environment. The toy bar can be attached to provide interactive play or swung away for naptime.

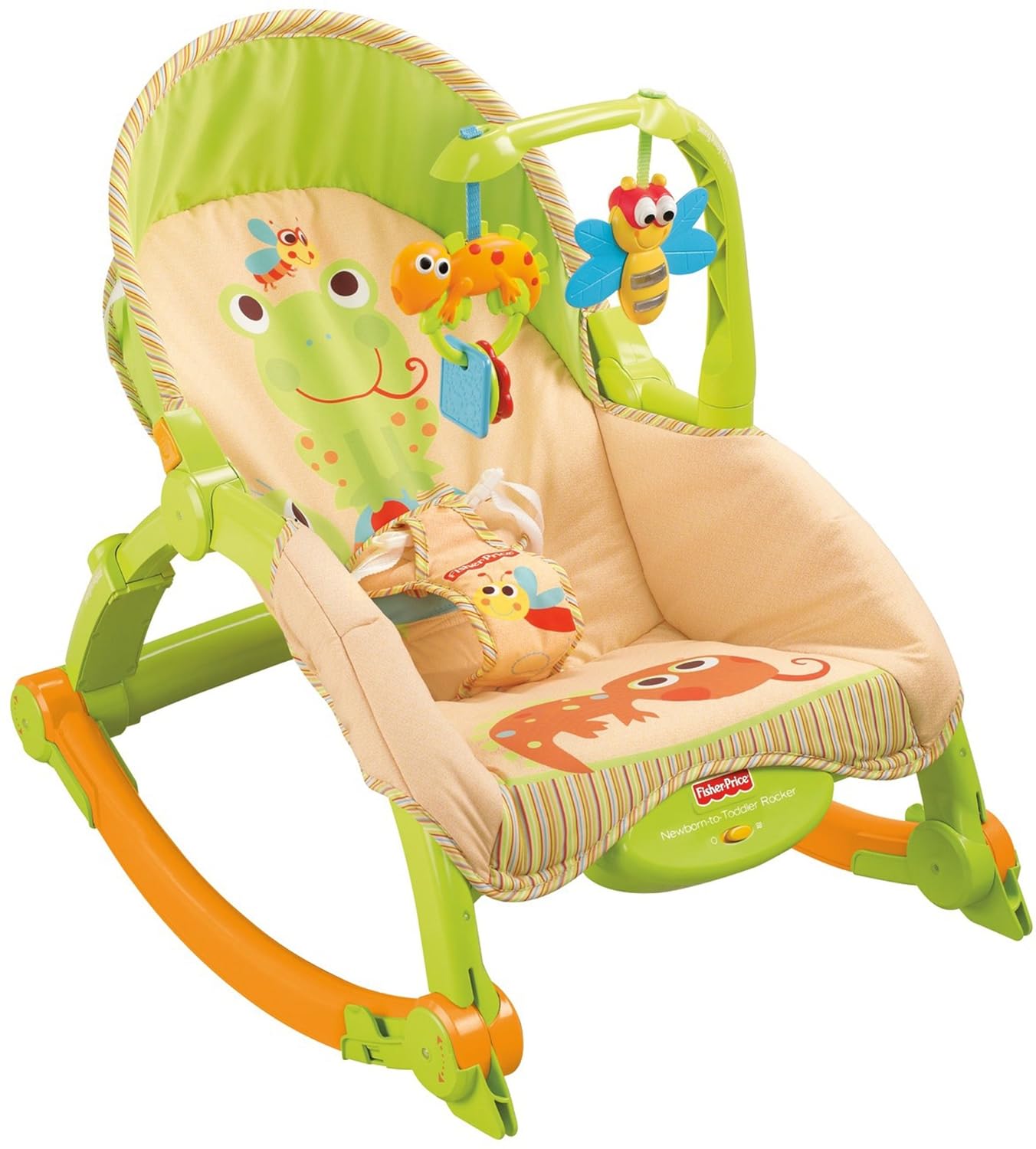

Image: The Fisher-Price Newborn-to-Toddler Portable Rocker configured for infant use, featuring a toy bar with hanging toys. The seat is reclined, and the overall color scheme is green and orange with a rainforest theme.

3.2. Toddler Rocker Mode

As your child grows, the rocker can be converted into a toddler seat. The toy bar can be removed, and the seat can be adjusted to a more upright position. The kickstands can be flipped out to transition from a rocking motion to a stationary seat.

Image: A toddler is comfortably seated in the Fisher-Price Portable Rocker, which is configured as a stationary chair. The toy bar has been removed, demonstrating its use for older children.

3.3. Battery Installation

The calming vibrations feature requires 2 D batteries (not included). Locate the battery compartment, typically on the underside of the seat. Use a screwdriver to open the compartment, insert the batteries with correct polarity, and secure the cover.

Image: Product packaging illustrating the three main configurations of the Fisher-Price Newborn-to-Toddler Portable Rocker: infant reclined, infant upright with toy bar, and toddler chair. It highlights features like calming vibrations and adjustable recline.

4. Operating Instructions

4.1. Adjusting the Seat Position

The seat offers multiple recline positions. To adjust, locate the recline adjustment mechanism (usually levers or buttons on the side or back of the frame) and follow the instructions to set the desired angle for your child's comfort and developmental stage.

4.2. Using the Calming Vibrations

To activate the calming vibrations, ensure batteries are installed. Locate the vibration switch (often on the front or side of the base) and turn it to the 'ON' position. Turn 'OFF' when not in use to conserve battery life.

4.3. Engaging the Toy Bar

The removable toy bar provides entertainment for infants. Attach it securely to the designated slots on the frame. To remove or swing it away, follow the specific release mechanism instructions to allow for easy access to your child.

4.4. Portability and Storage

The rocker is designed for easy portability and storage. To fold, locate the folding mechanisms (often buttons or latches on the frame) and collapse the unit as instructed. The kickstands can also be folded in for a more compact form.

5. Maintenance

5.1. Cleaning the Fabric Seat Pad

The fabric seat pad is removable and machine washable. Detach the pad from the frame according to the assembly instructions. Wash in cold water on a gentle cycle. Tumble dry on low heat or air dry. Do not bleach.

5.2. Cleaning the Frame

Wipe the frame, plastic parts, and toys with a damp cloth and mild soap. Rinse thoroughly with clean water. Do not immerse the frame in water. Ensure all parts are dry before reassembly or use.

6. Troubleshooting

• Vibrations Not Working: Check if 2 D batteries are correctly installed and not depleted. Ensure the vibration switch is in the 'ON' position.
• Rocker Feels Unstable: Verify that all frame components are securely locked into place. Ensure kickstands are properly engaged for stationary mode or folded for rocking mode.
• Difficulty Adjusting Seat: Ensure no fabric or foreign objects are obstructing the recline mechanism. Apply gentle pressure while adjusting.

7. Specifications

8. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Fisher-Price website. Keep your proof of purchase for any warranty claims.
