Dabmar Lighting D3100-B Bollard Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Dabmar Lighting D3100-B Powder Coated Steel Bollard. Please read this manual thoroughly before installation and retain it for future reference.

The D3100-B is a durable, powder-coated steel bollard designed for outdoor lighting applications. It features a ribbed, frosted, heat-resistant, tempered glass lens and is ETL approved for wet locations.

2. Safety Information

WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing. All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).

• Ensure the power supply is turned off before installation or maintenance.
• This fixture is designed for 120 Volt applications.
• Use only one (1) 60-watt maximum incandescent lamp (not included). Do not exceed the recommended wattage.
• Consult a qualified electrician if you are unsure about the installation process.
• Wear appropriate safety gear, including gloves and eye protection, during installation.
• Do not modify the fixture. Any modifications may void the warranty and create safety hazards.
• This product is ETL approved for wet locations, ensuring suitability for outdoor use.

3. Package Contents

Carefully unpack the fixture and inspect for any damage. Retain all packaging materials until you are satisfied with the product.

• Dabmar Lighting D3100-B Bollard Fixture (1)
• Instruction Manual (1)

Note: Mounting hardware and incandescent lamp are not included and must be purchased separately.

4. Setup and Installation

Before beginning installation, ensure all necessary tools and components are available. This fixture requires a 120 Volt power supply.

4.1 Tools and Materials Required (Not Included)

• Incandescent lamp (max 60W)
• Mounting hardware (appropriate for your installation surface)
• Wire strippers
• Screwdriver
• Electrical tape
• Weatherproof silicone sealant (for wet location sealing)

4.2 Installation Steps

1. Turn off Power: Locate the circuit breaker or fuse box controlling the power to the installation area and turn off the power. Verify power is off using a voltage tester.
2. Prepare Mounting Location: Determine the desired location for the bollard. Ensure the surface is stable and can support the fixture. Run the 120 Volt electrical supply wire to the mounting location, leaving sufficient length for connections.
3. Secure Mounting Hardware: Using appropriate mounting hardware (not included), secure the bollard base to the prepared surface. Ensure the base is level and stable.
4. Make Electrical Connections: The fixture is pre-wired with UL listed wire/cable. Connect the fixture's wires to the main power supply wires according to local electrical codes:
   • Connect the black wire (hot) from the fixture to the black wire (hot) from the supply.
   • Connect the white wire (neutral) from the fixture to the white wire (neutral) from the supply.
   • Connect the green or bare copper wire (ground) from the fixture to the green or bare copper wire (ground) from the supply.
   Secure all connections with approved wire connectors and wrap with electrical tape for added insulation and moisture protection.
5. Install Lamp: Carefully screw one (1) 60-watt maximum incandescent lamp (not included) into the fixture's socket. Do not overtighten.
6. Assemble Fixture: Secure the ribbed, frosted, tempered glass lens and any other covers or components as per the fixture design. Ensure all seals are properly seated for wet location protection.
7. Seal (Optional but Recommended for Wet Locations): Apply a bead of weatherproof silicone sealant around the base of the bollard where it meets the mounting surface to prevent water intrusion.
8. Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker or fuse box.
9. Test Operation: Turn on the light switch to verify the bollard is functioning correctly.

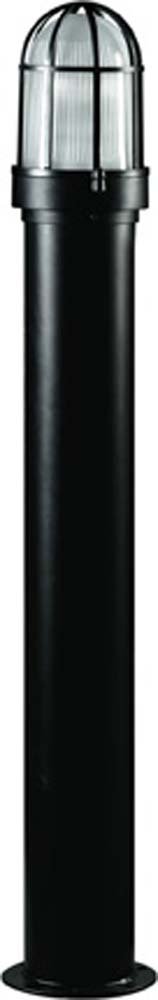

Image 1: Example of a Dabmar Lighting D3100-B Bollard installed in an outdoor setting. The image shows the black powder-coated steel finish and the ribbed, frosted glass lens.

5. Operating Instructions

The Dabmar Lighting D3100-B Bollard operates by a standard 120 Volt electrical switch (not included). Once properly installed and connected to a power source, the bollard can be turned on and off using the wall switch or external timer/photocell connected to the circuit.

• Ensure the correct 60-watt maximum incandescent lamp is installed.
• For optimal performance and lamp life, avoid frequently turning the fixture on and off.
• This fixture is designed for continuous outdoor use.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Dabmar Lighting D3100-B Bollard.

• Cleaning: Periodically clean the exterior of the bollard and the glass lens with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or glass.
• Lamp Replacement:
  1. Turn off power to the fixture at the circuit breaker.
  2. Allow the lamp to cool completely if it has been recently in use.
  3. Carefully remove the glass lens or access cover to expose the lamp.
  4. Unscrew the old lamp and replace it with a new 60-watt maximum incandescent lamp.
  5. Reassemble the fixture, ensuring the glass lens and covers are securely fastened and seals are properly seated.
  6. Restore power and test.
• Inspection: Annually inspect the wiring for any signs of wear, fraying, or damage. Check the mounting hardware for tightness.

7. Troubleshooting

If your Dabmar Lighting D3100-B Bollard is not functioning as expected, refer to the following common issues and solutions:

If the problem persists after attempting these solutions, contact a qualified electrician or Dabmar Lighting customer support.

8. Specifications

9. Warranty and Support

Dabmar Lighting products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Dabmar Lighting website.

For technical support, replacement parts, or any questions regarding your D3100-B Bollard, please contact Dabmar Lighting customer service:

• Website: www.dabmar.com
• Contact Information: Refer to the Dabmar Lighting website or product packaging for the most current contact details.

Please have your model number (D3100-B) and date of purchase available when contacting support.
