Introduction
The Mintcraft HCRSS40 Hose Clamp is designed for securing hoses onto fittings, preventing leaks and ensuring a tight connection. Constructed from durable stainless steel, it offers resistance to corrosion and provides reliable performance in various applications, including automotive, plumbing, and garden use.

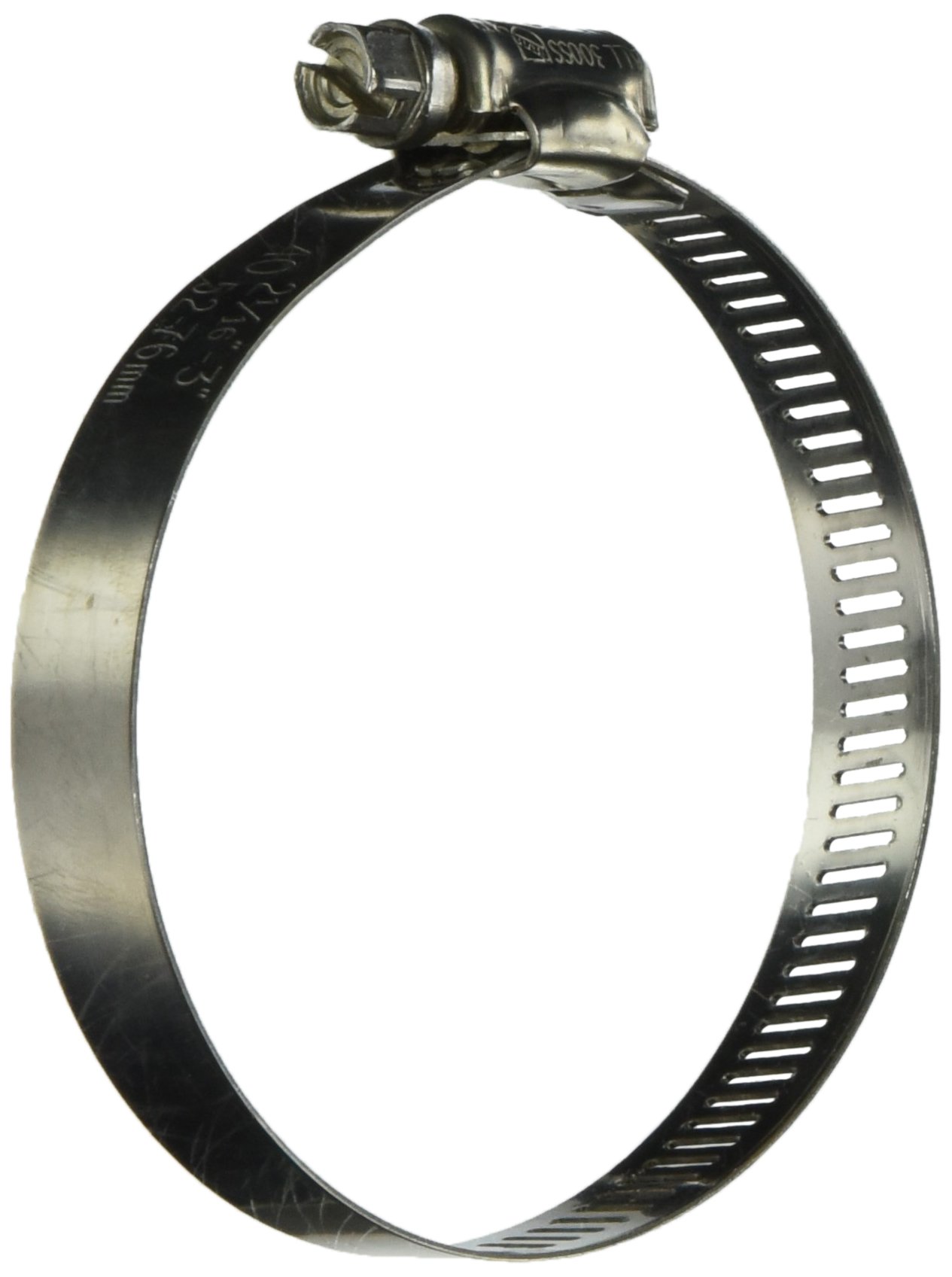

Figure 1: Mintcraft HCRSS40 Stainless Steel Hose Clamp. This image shows the complete hose clamp assembly, including the band, housing, and screw mechanism.
Setup
- Prepare the Hose and Fitting: Ensure both the hose and the fitting are clean and free from debris. The hose should be cut squarely and fit snugly over the fitting.
- Position the Clamp: Loosen the screw on the hose clamp slightly to expand the band. Slide the hose clamp over the end of the hose before placing the hose onto the fitting.
- Seat the Hose: Push the hose completely onto the fitting, ensuring it is fully seated.
- Center the Clamp: Position the hose clamp over the area where the hose covers the fitting. Ensure the clamp is centered over the connection point for optimal sealing.
Operating
Once the hose clamp is correctly positioned, proceed with tightening it to secure the connection.
- Tighten the Screw: Use a screwdriver (flathead or hex, depending on the screw type) to turn the screw clockwise.
- Apply Appropriate Torque: Tighten the screw until the hose clamp firmly compresses the hose onto the fitting. Avoid over-tightening, as this can damage the hose or the clamp itself. The goal is a secure, leak-free connection.
- Check for Leaks: After tightening, if the application involves fluid or air, pressurize the system and check for any leaks around the clamped connection. If leaks are present, tighten the clamp slightly more or inspect the hose and fitting for damage.
Maintenance
- Regular Inspection: Periodically inspect the hose clamp for signs of wear, corrosion, or damage, especially in harsh environments.
- Cleaning: If necessary, clean the clamp with a damp cloth to remove dirt or grime. Avoid abrasive cleaners that could damage the stainless steel finish.
- Re-tightening: Over time, hoses can compress or materials can shift. Occasionally check the tightness of the clamp and re-tighten if necessary to maintain a secure seal.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Leakage at connection | Clamp not tight enough; damaged hose or fitting; clamp improperly positioned. | Tighten the clamp further. Inspect hose and fitting for damage and replace if necessary. Reposition the clamp over the connection. |
| Clamp slips or breaks | Over-tightening; incorrect clamp size; material fatigue. | Ensure correct clamp size for the hose. Avoid over-tightening. Replace the clamp if damaged or fatigued. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | HCRSS40 |
| Material | Stainless Steel |
| Product Dimensions | 4.5 x 4.5 x 4.8 inches |
| Item Weight | 0.798 ounces |
| Brand | Mintcraft |
| UPC | 045734927650 |
Warranty and Support
This product is designed for durability and reliability. For specific warranty information, please refer to the packaging or contact Mintcraft customer support directly. General support inquiries can often be addressed through the manufacturer's official website or by contacting their customer service department.
For further assistance, please visit the Mintcraft brand page or consult your retailer.
