Warrior Table Soccer Pro Foosball Table

Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your Warrior Table Soccer Pro Foosball Table, Model 2020. Please read this guide thoroughly before assembly and use to ensure proper function and longevity of your product.

Safety Information

• Rod Guard System: The table is equipped with a Rod Guard system designed to protect both children and adults from fast-moving rods, helping to prevent accidental injury. Ensure all rod guards are properly installed before use.
• Weight: The table weighs approximately 195 pounds. Exercise caution and use proper lifting techniques when moving or assembling the table. It is recommended to have at least two adults for lifting the playing surface.
• Supervision: Children should be supervised while playing to ensure safe operation and prevent misuse.

What's in the Box

Upon unpacking, verify that all components are present. The package should include:

• Warrior Table Soccer Pro Foosball Table components
• 2 Foosball balls
• Spare parts
• Simple assembly instructions (refer to this manual for detailed guidance)

If any parts are missing or damaged, please contact Warrior Table Soccer customer support immediately.

Setup and Assembly

The Warrior Pro Foosball Table is designed for relatively fast and easy assembly, typically taking around 25 minutes with one simple tool. While the process is straightforward, some steps may require careful attention.

1. Unpacking: Carefully remove all parts from the three large boxes. This step may take a significant portion of the overall assembly time. Inspect all components for any shipping damage before proceeding. If a goalie box or any other part is broken, contact customer service.
2. Frame Assembly: Assemble the main frame of the table according to the included diagrams. Keep the leg bolts slightly loose during this stage.
3. Playing Surface Installation: With assistance, carefully lift and drop the playing surface into the assembled frame. Ensure it seats correctly.
4. Tighten Connections: Once the playing surface is in place, tighten all leg bolts and other frame connections securely.
5. Rod and Player Installation: The counter-balanced foosball men are pre-assembled on the rods for quicker installation. Insert the rods into their designated positions, ensuring the Rod Guard system components are correctly aligned.
6. Ball Return System: The improved Pro style ball return system channels the ball to the center of the table without hoses. If the PVC pipe segments for the ball return slots seem tight, gently hammer them into place.
7. Leveling: Utilize the swivel foot levelers to ensure the table is perfectly level on any surface. Proper leveling is crucial for optimal gameplay and to prevent balls from stopping in unintended areas.

Assembly Tip: Some parts may require a bit of 'elbow grease' to fit perfectly. Do not force components excessively, but a firm push or gentle tap may be necessary.

Figure 1: Internal frame structure, useful for assembly reference.

Operating Instructions

Your Warrior Table Soccer Pro Foosball Table is designed for competitive and recreational play, offering excellent ball control and smooth rod action.

• Gameplay: The table supports up to 4 players. Use the handles to control the foosball men on the rods, aiming to score goals in your opponent's net.
• Rod Movement: The split bearings facilitate faster and smoother shots. Ensure rods are clean and lubricated (if necessary, refer to maintenance) for optimal performance.
• Ball Return: After a goal, the ball will be channeled to the center of the table via the improved ball return system.
• Player Control: The counter-balanced foosball men allow for precise ball control and the execution of various shots, including snake shots, pull shots, and pin shots.

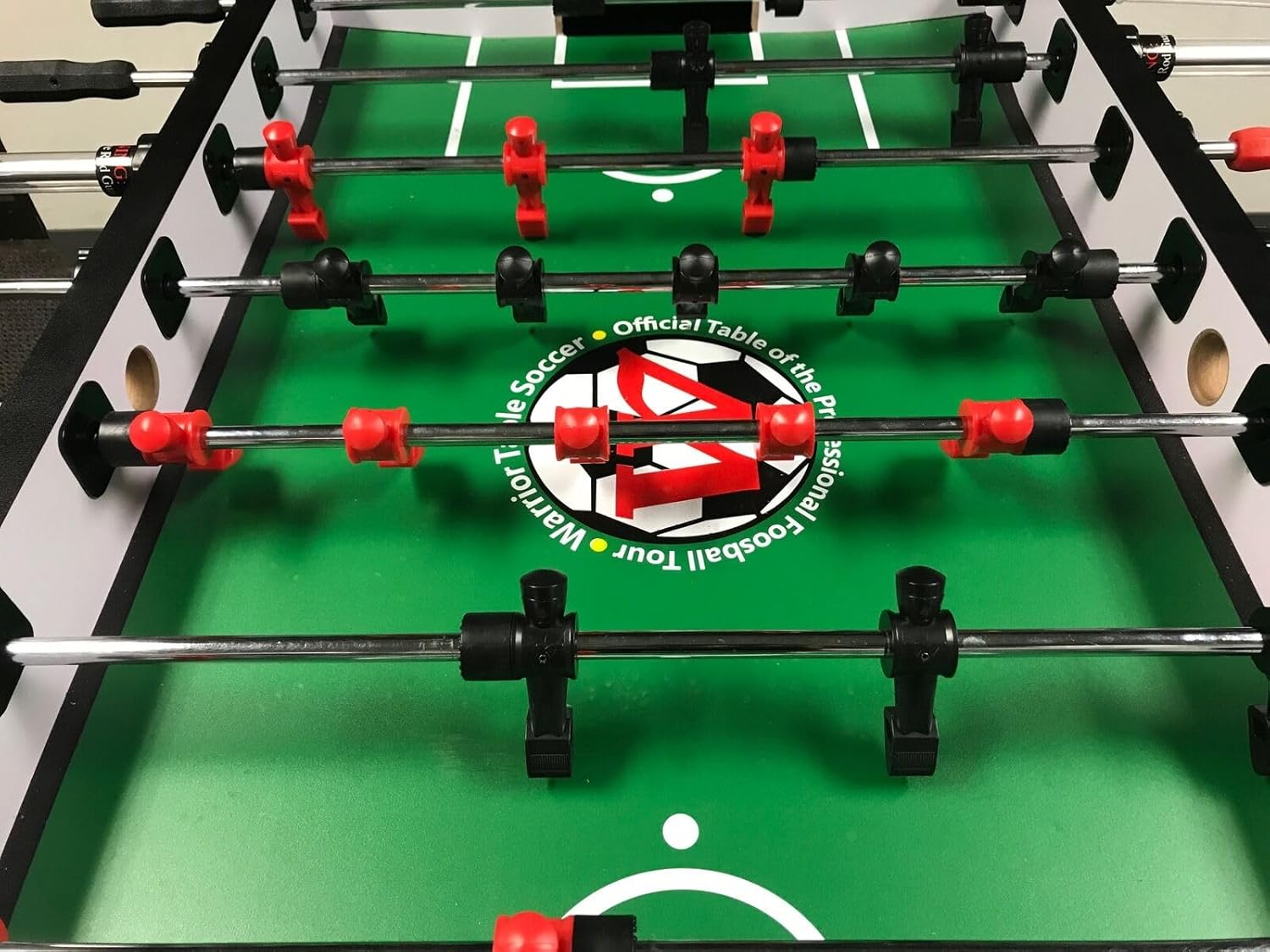

Figure 2: Playing surface with players and official branding.

Figure 3: Side view of the table, highlighting the player rods and handles.

Maintenance

Regular maintenance will help preserve the condition and performance of your foosball table.

• Cleaning: Wipe down the playing surface and cabinet with a soft, damp cloth. Avoid abrasive cleaners that could damage the finish.
• Rod Care: Keep the rods clean. If rod movement becomes stiff, a small amount of silicone-based lubricant can be applied to the rods where they pass through the bearings. Avoid oil-based lubricants as they can attract dust.
• Tighten Fasteners: Periodically check and tighten all bolts and screws to ensure the table remains stable and secure.
• Leveling: Re-check the table's level periodically, especially if it has been moved, and adjust the swivel foot levelers as needed.

Troubleshooting

Here are solutions to common issues you might encounter:

• Balls Getting Stuck in Ball Return: While the 2020 model features an improved ball return system, ensure the PVC pipe segments are fully seated and clear of obstructions. Verify the table is perfectly level using the foot levelers.
• Balls Stopping on Playing Surface: This is often due to an unlevel table. Adjust the swivel foot levelers until the playing surface is completely flat. Even expensive tables can experience this if not properly leveled.
• Stiff Rod Movement: Clean the rods and apply a silicone-based lubricant to the bearings if necessary. Ensure no debris is obstructing the rod's path.
• Table Instability: Check and tighten all assembly bolts, especially those connecting the legs and frame. Ensure the table is on a flat, stable surface.

Specifications

Warranty and Support

Warrior Table Soccer is committed to customer satisfaction. If you encounter any issues or require assistance:

• Missing or Damaged Parts: In case of missing parts or components damaged during transit, please contact customer service immediately for replacements.
• Technical Assistance: For any questions regarding assembly, operation, or gameplay, you can speak with a Pro Foosball player in the USA. Refer to the contact information provided with your product for the phone number.
• Product Warranty: Specific warranty details are typically included with your purchase documentation. Please refer to those documents for information on coverage and duration.
