Introduction
This manual provides essential instructions for the proper installation, operation, and maintenance of your Haier RF-3400-03 Heater Defrost component. Please read this manual thoroughly before attempting any installation or service to ensure safe and efficient use.
The Haier RF-3400-03 is an authorized aftermarket defrost heater part designed to fit various Haier brand models. It is an OEM part with the number RF-3400-03.
Product Overview

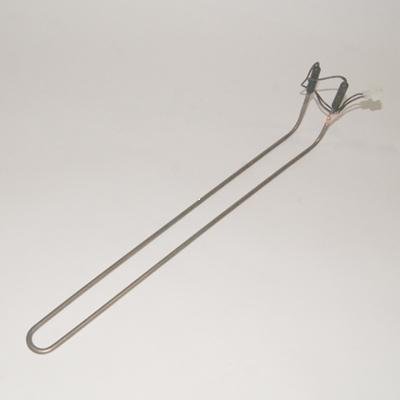

Figure 1: Haier RF-3400-03 Heater Defrost Component
This image displays the Haier RF-3400-03 Heater Defrost component. It is a metallic, U-shaped heating element, approximately 21 inches long, with electrical terminals and wiring visible at one end. This component is crucial for the defrosting function in compatible Haier appliances.
The RF-3400-03 defrost heater is designed to melt frost and ice buildup on the evaporator coils within refrigeration units, ensuring optimal cooling performance and energy efficiency. It is a critical component for maintaining the proper function of your appliance's defrost system.
Specifications
| Attribute | Detail |
|---|---|
| Model Number | RF-3400-03 |
| Part Number | RF-3400-03 |
| Manufacturer | Haier |
| Item Weight | 6.4 ounces |
| Product Dimensions | 21 x 2 x 5 inches |
| Included Components | Appliance replacement part (Defrost Heater) |
Important Safety Information
Always disconnect power to the appliance before attempting any installation, repair, or maintenance. Failure to do so can result in serious injury or death from electrical shock.
- Only qualified technicians should perform repairs or installations involving electrical components.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation.
- Ensure all connections are secure and properly insulated after installation.
- Refer to your appliance's specific service manual for detailed disassembly and reassembly instructions.
Setup and Installation
This section provides general guidance for the installation of the RF-3400-03 defrost heater. Specific steps may vary depending on your appliance model. Always consult your appliance's service manual for precise instructions.
Tools Required:
- Screwdrivers (Phillips and Flathead)
- Nut drivers or wrenches (if applicable)
- Wire cutters/strippers
- Multimeter (for testing, optional but recommended)
Installation Steps:
- Disconnect Power: Unplug the appliance from the wall outlet or turn off the circuit breaker supplying power to the appliance. Verify power is off using a multimeter.
- Access Evaporator Compartment: Depending on your appliance, this may involve removing shelves, ice makers, and rear panels inside the freezer or refrigerator compartment.
- Locate Old Defrost Heater: Identify the existing defrost heater, which is typically located near or integrated with the evaporator coils.
- Disconnect Old Heater: Carefully disconnect the electrical wires from the old defrost heater. Note the wiring configuration or take a picture for reference.
- Remove Old Heater: Unmount the old heater from its clips or brackets. Be gentle to avoid damaging other components.
- Install New Heater: Position the new RF-3400-03 defrost heater in the same location as the old one. Secure it using the existing clips or mounting points.
- Connect Wiring: Connect the electrical wires to the new heater, ensuring they match the original configuration. Make sure connections are tight and secure.
- Reassemble Appliance: Reinstall all panels, shelves, and other components that were removed.
- Restore Power: Plug the appliance back into the wall outlet or turn on the circuit breaker.
- Test Functionality: Monitor the appliance to ensure proper operation, including the defrost cycle.
Operating Principles
The Haier RF-3400-03 defrost heater operates as part of an automated defrost system within your appliance. Its primary function is to prevent excessive frost buildup on the evaporator coils, which can impede airflow and reduce cooling efficiency.
During a defrost cycle, which is typically initiated by a defrost timer or control board, the compressor and evaporator fan temporarily shut off. The defrost heater then activates, generating heat to melt any accumulated ice on the evaporator coils. The melted water drains into a pan and evaporates.
Once the defrost cycle is complete (either by time or temperature sensor), the heater deactivates, and the refrigeration system resumes normal operation. This cycle is essential for maintaining the appliance's performance and longevity.
Maintenance
The RF-3400-03 defrost heater itself requires no routine maintenance. Its lifespan is dependent on the overall health and usage of the appliance it is installed in. However, regular maintenance of the appliance can help ensure the defrost system functions correctly.
General Appliance Maintenance Tips:
- Clean Condenser Coils: Periodically clean the condenser coils (usually located at the back or bottom of the appliance) to ensure efficient heat dissipation.
- Check Door Gaskets: Ensure door gaskets seal properly to prevent warm, moist air from entering the appliance, which can lead to increased frost buildup.
- Monitor Defrost Drain: Occasionally check that the defrost drain tube is clear and not clogged, allowing melted water to exit properly.
Troubleshooting
If your appliance is experiencing excessive frost buildup or issues related to defrosting, the RF-3400-03 defrost heater may be a contributing factor. Below are common symptoms and potential causes.
| Symptom | Possible Cause | Action |
|---|---|---|
| Excessive frost/ice buildup on evaporator coils |
|
|
| Appliance not cooling properly |
|
|
Note: Troubleshooting electrical components should only be performed by individuals with appropriate knowledge and safety precautions. If you are unsure, contact a certified appliance repair technician.
Warranty and Support
As an authorized aftermarket part, the warranty for the Haier RF-3400-03 defrost heater is typically provided by the seller or the manufacturer of the part, not necessarily by Haier directly for the appliance itself. Please refer to your purchase documentation for specific warranty terms and conditions.
For technical support regarding the installation or function of this specific part, it is recommended to contact the vendor from whom you purchased the RF-3400-03. For general appliance issues not directly related to this part, please refer to your appliance's original manufacturer's support channels.
You can visit the official Haier store for general product information: Haier Store on Amazon.
