Clatronic FS 3261 Vacuum Sealer User Manual

1. Important Safety Instructions

Please read these instructions carefully before using the appliance and keep them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the appliance is disconnected from the power supply before cleaning or maintenance.
• Do not immerse the appliance, cord, or plug in water or any other liquid.
• This appliance is intended for household use only. Do not use it outdoors or for commercial purposes.
• Keep the appliance out of reach of children.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The sealing strip becomes hot during operation. Avoid direct contact with the sealing strip immediately after use.
• Use only original Clatronic accessories and spare parts.

2. Product Overview

The Clatronic FS 3261 is designed to vacuum seal food, extending its freshness and allowing for efficient storage. It features electronic power control, a strong suction pump, and a viewing window for the foil supply.

Image: The Clatronic FS 3261 Vacuum Sealer, shown with a vacuum-sealed package of meat and two rolls of sealing foil, illustrating its primary function and included accessories.

Components:

• Appliance Housing
• Lid with Locking Mechanism
• Sealing Strip
• Vacuum Channel
• Foil Roll Compartment with Viewing Window
• Cutter (integrated)
• Indicator Lights (2)
• Power Cord with Cable Storage

Image: A close-up view of the Clatronic FS 3261, highlighting the sealing process and the strong suction pump mechanism, demonstrating its dual functionality for sealing and vacuuming.

3. Setup

Before first use, ensure the appliance is clean and all packaging materials are removed.

1. Unpacking: Carefully remove the vacuum sealer from its packaging. Retain the packaging for future storage or transport.
2. Initial Cleaning: Wipe down the exterior of the appliance with a damp cloth. Ensure the sealing strip and vacuum channel are clean and dry.
3. Power Connection: Unwind the power cord from the cable storage at the base of the appliance. Plug the appliance into a grounded 220-240V, 50/60Hz power outlet.
4. Preparing the Foil Roll: Open the lid of the appliance. Place the included 3-meter foil roll into the designated compartment. Pull out enough foil to cover the food item and extend beyond the sealing strip. Use the integrated cutter to create a straight edge for sealing.

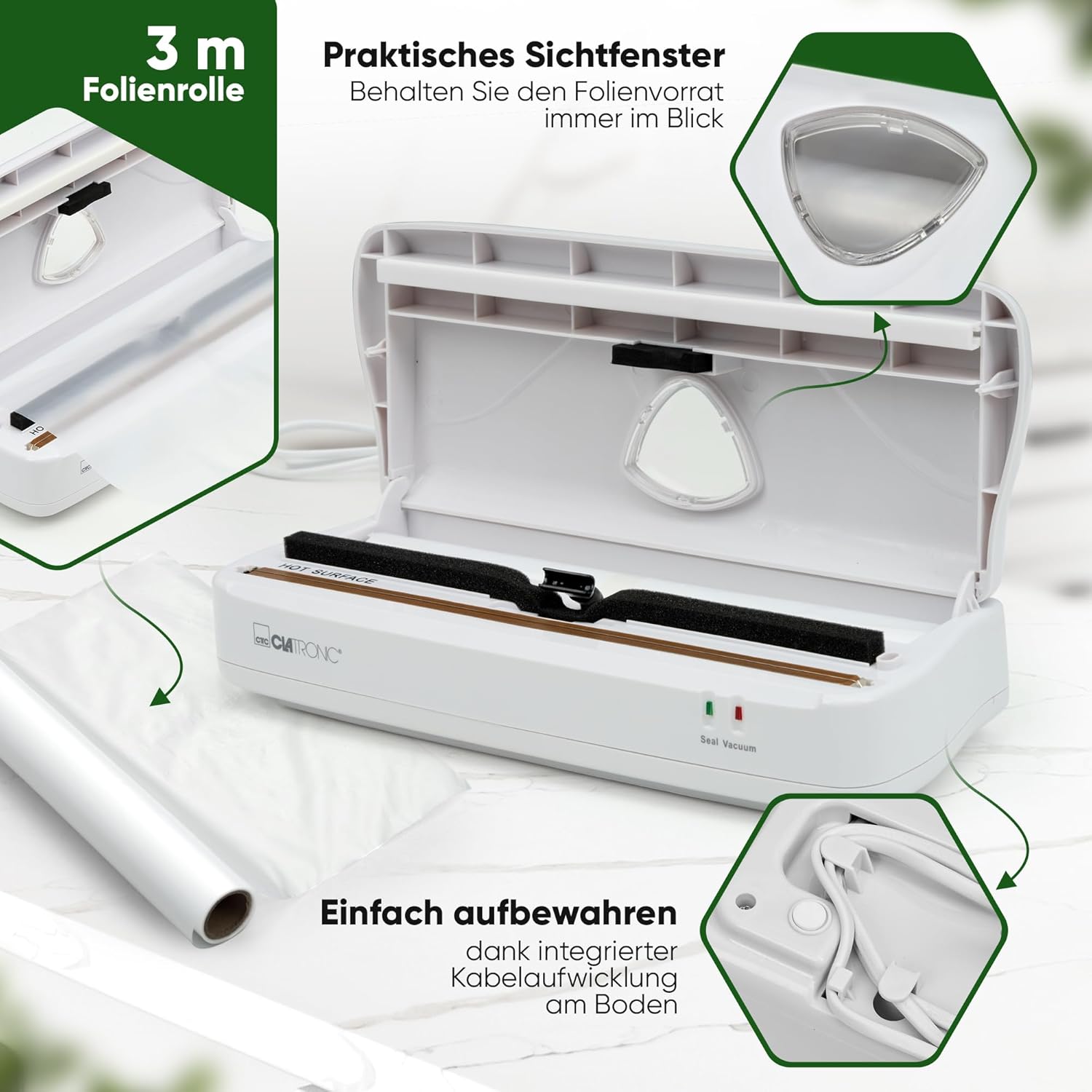

Image: The Clatronic FS 3261 with its lid open, revealing the foil roll compartment and the practical viewing window, allowing users to monitor the remaining foil supply.

4. Operating Instructions

The Clatronic FS 3261 allows for both vacuum sealing and simple sealing.

4.1. Vacuum Sealing Food:

1. Place the food item inside the vacuum bag, ensuring there is at least 5-7 cm of empty space between the food and the open end of the bag.
2. Lay the open end of the bag flat into the vacuum channel, ensuring it is smooth and free of wrinkles.
3. Close the lid firmly until it locks into place. The appliance will automatically begin the vacuuming process.
4. Once the air is removed and the desired vacuum level is reached, the appliance will automatically proceed to seal the bag.
5. The indicator lights will show the progress. When the sealing process is complete, the lights will change or turn off.
6. Open the lid and remove the sealed bag. Inspect the seal to ensure it is complete and airtight.

Image: The Clatronic FS 3261 in operation, demonstrating the vacuum sealing of a package of meat, showcasing the appliance's ability to remove air and create an airtight seal.

4.2. Sealing Only (without vacuum):

This function is useful for sealing bags of chips, snacks, or creating custom-sized bags from the foil roll.

1. Place the edge of the bag you wish to seal directly over the sealing strip, ensuring it is flat and smooth.
2. Close the lid firmly until it locks. The appliance will initiate the sealing process without vacuuming.
3. Wait for the indicator lights to signal completion.
4. Open the lid and remove the sealed bag.

4.3. Tips for Best Results:

• For moist foods, pre-freeze them or place a paper towel inside the bag near the seal area to absorb excess moisture.
• Ensure the sealing strip and vacuum channel are always clean and dry for optimal performance.
• Do not overfill bags. Leave sufficient space for proper sealing.
• Allow the appliance to cool down for a few seconds between sealing cycles if performing multiple seals consecutively.

5. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your vacuum sealer.

• Always unplug the appliance from the power outlet before cleaning.
• Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Clean the vacuum channel and sealing strip with a damp cloth. Ensure they are completely dry before closing the lid or using the appliance again.
• Do not immerse the appliance in water or other liquids.
• Store the appliance in a dry place when not in use.

6. Troubleshooting

If you encounter issues with your Clatronic FS 3261, refer to the following common problems and solutions:

7. Specifications

• Brand: Clatronic
• Model Number: FS3261
• Color: White
• Product Dimensions: 12.5 x 33 x 8 cm (L x W x H)
• Item Weight: 1.49 Kilograms
• Power: 100 Watt
• Voltage: 230 Volt
• Material: Plastic

Image: The Clatronic FS 3261 Vacuum Sealer with key dimensions (length, width, height) and weight clearly marked, providing a visual reference for its physical size.

8. Warranty and Support

Clatronic products are manufactured with care and undergo strict quality controls. This appliance comes with a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase.

For warranty claims, technical support, or to inquire about spare parts and accessories, please contact your local retailer or the Clatronic customer service department. Please have your proof of purchase and the model number (FS 3261) ready when contacting support.

Further information and contact details can often be found on the official Clatronic website or within the product packaging.
