Skidsteer Control Lock - Keyed Alike

Introduction

The Equipment Lock Skidsteer Control Lock is a robust security device designed to protect your skid loaders by locking both drive controls. This manual provides essential information for the proper setup, operation, and maintenance of your Skidsteer Control Lock to ensure its effective use and longevity.

This 'Keyed Alike' version allows multiple locks to be operated with the same key, offering convenience for users with multiple units. Each lock comes with two keys.

Safety Information

• Always ensure the skid loader is turned off and the parking brake is engaged before installing or removing the lock.
• Do not attempt to operate the skid loader with the control lock installed. This can cause damage to the machine or the lock.
• Keep keys in a secure location, separate from the skid loader.
• Regularly inspect the lock for any signs of wear or damage. Do not use if damaged.

Setup and Installation

The Skidsteer Control Lock is designed for quick and secure installation. It is adaptable to all models of Skidsteer loaders made since the 1970s.

1. Ensure the skid loader's engine is off and controls are in a neutral position.
2. Locate the two drive controls within the skid loader's cabin.
3. Slide the windows or protective screens back, if present, to allow access to the control levers.
4. Position the Skidsteer Control Lock so that it spans across both drive controls. The design of the lock allows it to capture both controls.
5. Adjust the lock to fit snugly against the cage and around the controls. Ensure both controls are securely held by the lock.
6. Insert the key and turn to lock the device. Remove the key and store it in a safe place.

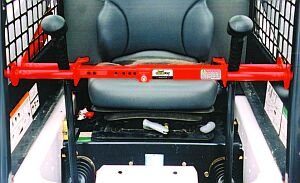

Image: The Skidsteer Control Lock securely installed, spanning across and locking both drive controls of a skid loader. The bright red bar is visible across the operator's seat area, preventing movement of the control levers.

Operating Instructions

Using the Skidsteer Control Lock is straightforward:

• To Lock: Position the lock as described in the "Setup and Installation" section, ensuring it captures both drive controls. Insert the key into the lock cylinder and turn it clockwise until the locking mechanism engages. Remove the key. The controls should now be immobilized.
• To Unlock: Insert the correct key into the lock cylinder. Turn the key counter-clockwise to disengage the locking mechanism. Carefully remove the lock from the drive controls. Store the lock in a safe place when not in use.

Maintenance

The Skidsteer Control Lock is constructed from durable steel and requires minimal maintenance to ensure long-term performance.

• Cleaning: Wipe the lock periodically with a clean, damp cloth to remove dirt and debris. Avoid harsh chemicals that could damage the finish.
• Lubrication: If the key mechanism becomes stiff, apply a small amount of graphite lubricant or a silicone-based spray lubricant to the keyhole. Do not use oil-based lubricants as they can attract dirt.
• Inspection: Regularly inspect the lock for any signs of physical damage, bending, or corrosion. Ensure the locking mechanism operates smoothly.
• Storage: When not in use, store the lock in a dry place to prevent rust and corrosion.

Troubleshooting

Specifications

• Brand: equipmentlock
• Model: SSL
• Lock Type: Key Lock
• Material: Steel
• Style: Modern
• Controller Type: Hand Control
• UPC: 698035005666
• Manufacturer: Equipment Lock Co.
• Special Feature: Keyed Alike (when ordering multiple units)
• Compatibility: Adaptable to all Skidsteer loaders made since the 1970s.

Warranty and Support

For specific warranty information, please refer to the documentation provided with your purchase or contact Equipment Lock Co. directly. Warranty terms typically cover defects in materials and workmanship under normal use.

If you require technical assistance, have questions about installation, or need to report a defective product, please contact the manufacturer:

Manufacturer: Equipment Lock Co.

(Contact details such as phone number or website are typically provided by the manufacturer directly or on their official product packaging.)
