HP ProCurve 3500-24-PoE Ethernet Switch User Manual

1. Product Overview

The HP ProCurve 3500-24-PoE Ethernet Switch is an intelligent edge switch designed for demanding network environments. It features a programmable ProVision ASIC, enabling advanced networking capabilities such as Quality of Service (QoS) and security. This switch offers a variety of Gigabit and 10/100 interfaces with integrated Power over Ethernet (PoE) functionality, providing flexibility and scalability for network deployments.

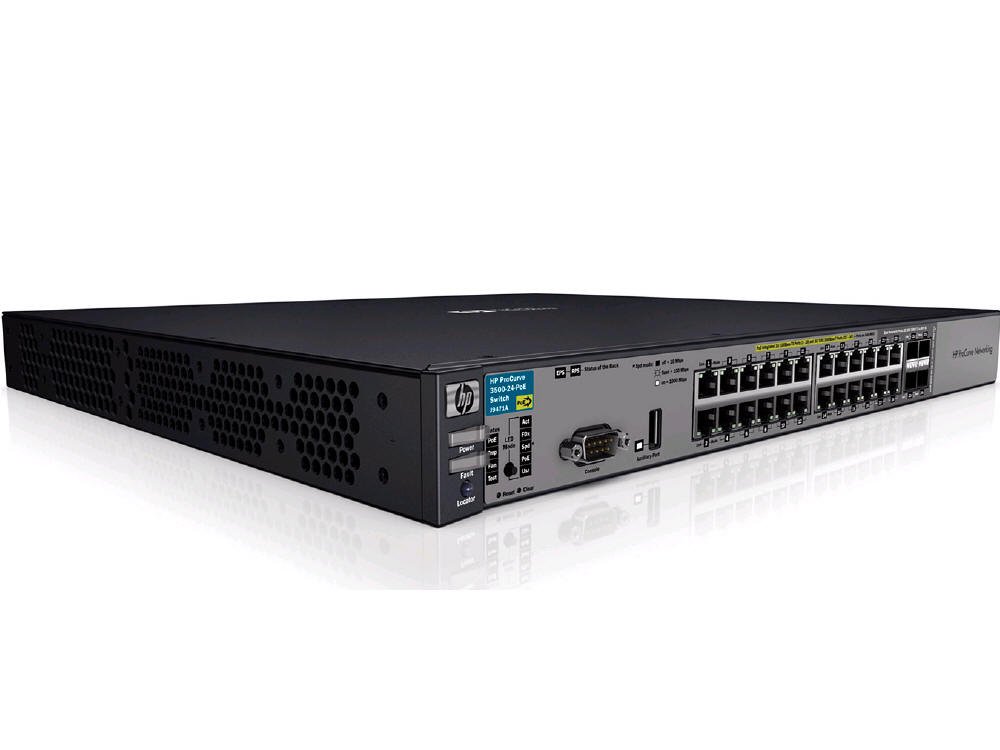

Figure 1: Front view of the HP ProCurve 3500-24-PoE Ethernet Switch, showing its network ports and status indicators.

2. Package Contents

Verify that all items are present in the package:

• HP ProCurve 3500-24-PoE Ethernet Switch
• Accessories (e.g., power cord, rack-mount kit, console cable)

3. Setup

3.1 Physical Installation

1. Rack Mounting: Securely mount the switch in a standard 19-inch equipment rack using the provided rack-mount kit. Ensure adequate ventilation around the switch.
2. Power Connection: Connect the power cord to the switch's power inlet and then to a grounded AC power outlet.

3.2 Network Connections

1. Uplink Ports: Connect the switch's uplink ports (Gigabit or SFP) to your core network or other switches using appropriate Ethernet cables or SFP transceivers.
2. Device Ports: Connect network devices (computers, IP phones, wireless access points) to the 10/100 or Gigabit Ethernet ports. For PoE-enabled devices, ensure they are connected to PoE-capable ports.

3.3 Initial Configuration

The switch can be configured via a console port, web interface, or Telnet/SSH. Refer to the HP ProCurve documentation for detailed configuration steps.

• Console Access: Connect a console cable from your computer to the switch's console port. Use a terminal emulation program (e.g., PuTTY) with settings: 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control.
• Web Interface: If the switch has a default IP address, connect your computer to a switch port and configure your computer's IP address to be in the same subnet. Access the web interface via a web browser.

4. Operating Instructions

4.1 Powering On

After connecting the power cord, the switch will automatically power on. Observe the system LED indicators for boot-up status.

4.2 LED Indicators

Monitor the front panel LEDs to understand the switch's operational status:

• System LED: Indicates overall switch health (e.g., green for normal operation, amber for issues).
• Port LEDs: Indicate link status and activity for each port (e.g., solid green for link, flashing green for activity).
• PoE LEDs: Indicate PoE status for ports providing power.

4.3 Management Access

Access the switch's management interface (web GUI or Command Line Interface) to configure VLANs, QoS, security settings, and monitor network traffic.

4.4 PoE Functionality

The switch provides Power over Ethernet on designated ports. Connect PoE-compatible devices (e.g., IP cameras, VoIP phones, wireless access points) to these ports to supply both data and power over a single Ethernet cable.

5. Maintenance

5.1 Cleaning

Periodically clean the exterior of the switch with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions to prevent overheating.

5.2 Firmware Updates

Regularly check the manufacturer's website for firmware updates. Applying updates can improve performance, add new features, and address security vulnerabilities. Follow the provided instructions carefully when performing firmware upgrades.

5.3 Environmental Considerations

Ensure the switch operates within its specified temperature and humidity ranges. Avoid placing the switch in direct sunlight or near heat sources.

6. Troubleshooting

6.1 No Power

• Verify the power cord is securely connected to both the switch and the power outlet.
• Check if the power outlet is functional by plugging in another device.
• Ensure the power supply unit (if external) is working correctly.

6.2 No Network Connectivity

• Check the link/activity LEDs on the switch port and the connected device.
• Ensure Ethernet cables are properly connected and not damaged.
• Verify network configuration (IP addresses, VLANs) on the switch and connected devices.

6.3 PoE Issues

• Confirm the device connected is PoE-compatible and within the switch's PoE power budget.
• Check the PoE status LEDs for the specific port.
• Ensure PoE is enabled on the port via the switch's management interface.

6.4 Performance Problems

• Check for high CPU utilization or memory usage on the switch.
• Inspect for network loops or broadcast storms.
• Verify duplex settings on connected devices match the switch ports.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

This product typically comes with a 30-day warranty. Please refer to your purchase documentation or contact your vendor for specific warranty terms and conditions.

8.2 Technical Support

For technical assistance, troubleshooting beyond this manual, or to report issues, please contact HP customer support or your authorized reseller. Have your product model number (J9471A) and serial number ready when contacting support.
