Hopkins Towing Solutions 52016 7-Way Pin Type Vehicle End Connector Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Hopkins Towing Solutions 52016 7-Way Pin Type Vehicle End Connector. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Safety Information

• Always disconnect the vehicle battery before performing any electrical work.
• Ensure all wiring connections are secure and properly insulated to prevent short circuits.
• Verify correct wiring polarity to avoid damage to vehicle or trailer electrical systems.
• Consult a qualified technician if you are unsure about any installation steps.
• Do not exceed the electrical current ratings of the connector or vehicle wiring.

Setup and Installation

The Hopkins 52016 connector is designed for the vehicle side of a 7-way trailer wiring system. Proper installation ensures reliable electrical connection between your tow vehicle and trailer.

Components Overview

Image Description: This image displays the Hopkins 52016 7-Way Pin Type Vehicle End Connector. It is a robust, silver-colored metal housing with a hinged lid that protects the internal 7-pin receptacle. The connector is designed to be mounted on the tow vehicle.

Wiring Instructions

The 52016 connector features screw terminals for secure wire attachment. Refer to the standard wiring diagram below for correct pin assignments. It is crucial to match the wire functions from your vehicle's wiring harness to the corresponding pins on the connector.

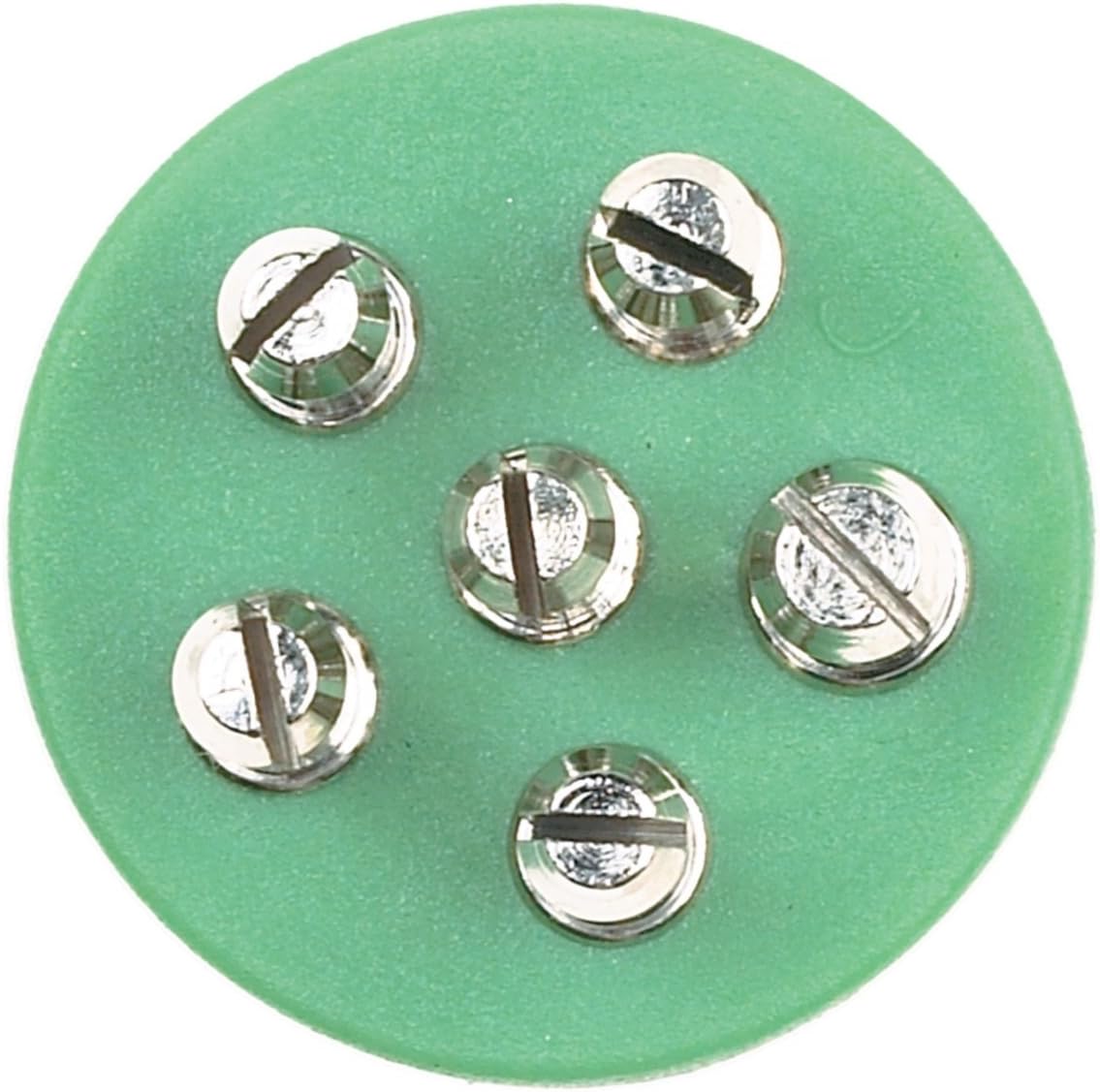

Image Description: This image shows the internal view of the Hopkins 52016 connector, specifically the green terminal block with five screw terminals visible. These terminals are where the individual wires from the vehicle's wiring harness are connected to establish the electrical functions for the trailer.

1. Prepare Wires: Strip approximately 1/2 inch of insulation from each wire of your vehicle's trailer wiring harness.
2. Identify Functions: Match each wire to its corresponding function (e.g., ground, left turn/stop, right turn/stop, tail/running lights, auxiliary power, electric brakes, reverse lights).
3. Connect Wires: Loosen the screw terminals inside the connector. Insert the stripped end of each wire into its designated terminal and tighten the screw securely. Ensure no stray wire strands are exposed that could cause a short circuit.
4. Secure Connector: Mount the connector securely to the vehicle using appropriate hardware (not included). Ensure it is in a location that will not interfere with vehicle operation or be easily damaged.
5. Test Connections: After installation, test all trailer light functions (turn signals, brake lights, running lights) and auxiliary functions (electric brakes, reverse lights, auxiliary power) with a connected trailer or a trailer wiring tester.

Standard 7-Way Pin Assignment (Vehicle End)

Note: Wire colors are standard but may vary. Always confirm the function of each wire from your vehicle's harness before connecting.

Operating Instructions

Once the 7-way vehicle end connector is installed, connecting and disconnecting your trailer is a straightforward process.

1. Connecting: Align the trailer-side 7-way plug with the vehicle-side connector. Push the trailer plug firmly into the vehicle connector. The hinged lid on the vehicle connector should secure the trailer plug in place. Ensure a snug fit to prevent accidental disconnection.
2. Disconnecting: To disconnect, lift the hinged lid on the vehicle connector and pull the trailer plug straight out. Avoid pulling by the wires.
3. Pre-Trip Check: Before each trip, verify that all trailer lights (turn signals, brake lights, running lights) are functioning correctly. Check that the trailer brakes (if equipped) are operational.

Maintenance

Regular maintenance will extend the life of your connector and ensure reliable performance.

• Cleaning: Periodically clean the connector pins and receptacle with a non-corrosive electrical contact cleaner. Remove any dirt, dust, or debris.
• Inspection: Regularly inspect the connector for signs of wear, corrosion, or damage. Check the wiring connections for tightness and ensure insulation is intact.
• Corrosion Prevention: Apply a small amount of dielectric grease to the pins and inside the receptacle to prevent corrosion, especially in humid or harsh environments.
• Lid Functionality: Ensure the hinged lid operates smoothly and securely closes to protect the pins from elements when not in use.

Troubleshooting

If you experience issues with your trailer's electrical functions, consider the following common troubleshooting steps:

• No Power to Trailer Lights:
  • Check vehicle fuses related to trailer wiring.
  • Inspect wiring connections at the 52016 connector for looseness or corrosion.
  • Verify the trailer plug is fully seated in the vehicle connector.
• Intermittent Connection:
  • Clean connector pins and receptacle with electrical contact cleaner.
  • Ensure the trailer plug is securely held by the vehicle connector's lid mechanism.
  • Check for damaged or bent pins on both the vehicle and trailer connectors.
• Incorrect Light Function (e.g., Brake lights activate turn signal):
  • Re-verify the wiring connections at the 52016 connector against the standard pin assignment. Incorrect wiring is a common cause.
  • Check for short circuits between wires within the connector or harness.
• Trailer Brakes Not Working:
  • Ensure the electric brake wire is correctly connected and receiving power.
  • Check the trailer brake controller in the vehicle for proper operation and settings.

If problems persist after troubleshooting, it is recommended to consult a professional automotive electrician or trailer service center.

Specifications

• Model: 52016
• Type: 7-Way Pin Type Vehicle End Connector
• Construction: Heavy-duty die-cast zinc
• Features: Impact and corrosion resistant
• Dimensions: Approximately 6.88 x 3.88 x 2.88 inches
• Weight: Approximately 10.4 ounces

Warranty Information

Hopkins Towing Solutions products are manufactured to high-quality standards. For specific warranty details regarding your 52016 7-Way Pin Type Vehicle End Connector, please refer to the warranty documentation included with your purchase or visit the official Hopkins Towing Solutions website. Keep your proof of purchase for warranty claims.

Support

For technical assistance, product inquiries, or further support, please contact Hopkins Towing Solutions customer service. Contact information can typically be found on the product packaging or on the official Hopkins Towing Solutions website.
