1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Federal Signal MS4000 100W Siren. The MS4000 is a compact and reliable electronic siren designed for effective audible warning and traffic clearing in various applications. Adherence to these instructions will ensure optimal performance and longevity of the unit.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in property damage, serious injury, or death.
- Always disconnect power before installing or servicing the siren.
- Installation should be performed by qualified personnel familiar with vehicle electrical systems and safety procedures.
- Ensure proper wiring and fusing to prevent electrical hazards and damage to the unit.
- Mount the siren securely to a stable surface to prevent dislodgement during operation or vehicle movement.
- Prolonged exposure to siren sounds can cause hearing damage. Use appropriate hearing protection when operating or testing the siren.
- Do not operate the siren in environments where flammable gases or liquids are present.
3. Features
The Federal Signal MS4000 100W Siren includes the following key features:
- Compact design for versatile mounting options.
- Integrated mounting bracket for easy installation.
- Multiple selectable tones: Wail, Yelp, Priority, Manual (peak and hold), and Air Horn.
- Output short circuit protection with a replaceable fuse.
- Designed for reliable performance and reduced operating temperature.
4. Package Contents
Verify that all components are present before beginning installation:
- Federal Signal MS4000 Siren Unit
- Mounting Bracket
- Wiring Harness (if included with specific model variant)
- Mounting Hardware
5. Setup and Installation
5.1 Mounting the Siren Unit
The MS4000 siren unit is designed to be small and compact, allowing for flexible mounting. Select a location that is secure, dry, and provides adequate ventilation. Use the included mounting bracket and hardware to firmly attach the unit.

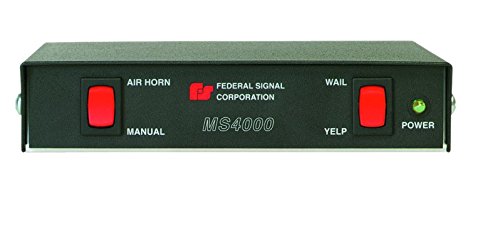

Figure 1: Federal Signal MS4000 100W Siren control unit. This image displays the front panel of the Federal Signal MS4000 siren control unit. It features two prominent red rocker switches. The left switch controls 'AIR HORN' when pressed up and 'MANUAL' when pressed down. The right switch controls 'WAIL' when pressed up and 'YELP' when pressed down. A green 'POWER' indicator light is visible on the right side. The 'FEDERAL SIGNAL CORPORATION' logo and 'MS4000' model number are centrally located.
5.2 Electrical Connections
Proper electrical connection is critical for safe and reliable operation. It is highly recommended that installation be performed by a certified automotive electrician or qualified technician.
- Power Connection: Connect the main power wire (typically red) to a fused 12V DC positive power source capable of supplying the required current (refer to specifications). Connect the ground wire (typically black) to a solid chassis ground.
- Speaker Connection: Connect the speaker output wires from the MS4000 to a compatible 100W siren speaker. Ensure correct polarity.
- Control Inputs: Connect any external control inputs (e.g., for remote activation) according to the wiring diagram provided with your specific model variant.
- Fuse: Ensure the correct fuse rating is used for the power input. The unit features output short circuit protection with a replaceable fuse.
6. Operation
The MS4000 siren offers various tones controlled by two rocker switches on the front panel.
6.1 Power On/Off
Once properly installed and wired, the green 'POWER' indicator light will illuminate when the unit receives power. Ensure the vehicle's ignition is on if wired to an ignition-switched circuit.
6.2 Tone Selection
- Air Horn: Press the left rocker switch upwards to activate the Air Horn tone. Release to stop.
- Manual: Press the left rocker switch downwards to activate the Manual (peak and hold) tone. Release to stop. This allows for manual control of the siren's pitch.
- Wail: Press the right rocker switch upwards to activate the Wail tone. Release to stop.
- Yelp: Press the right rocker switch downwards to activate the Yelp tone. Release to stop.
- Priority: The Priority tone may be activated via an external input, if wired. Refer to your specific wiring diagram for details.
Note: Only one siren tone can be active at a time. Activating a new tone will override the currently active tone.
7. Maintenance
The Federal Signal MS4000 siren is designed for minimal maintenance. Regular inspection and cleaning will help ensure continued reliable operation.
- Cleaning: Periodically wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Inspection: Regularly check all wiring connections for signs of wear, corrosion, or looseness. Ensure the mounting hardware remains secure.
- Fuse Replacement: If the unit ceases to function, check the power fuse. Replace with a fuse of the identical type and rating.
8. Troubleshooting
If you encounter issues with your MS4000 siren, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power / Green LED off | No power supply; Blown fuse; Loose wiring connection. | Check power source; Inspect and replace fuse; Verify all power and ground connections. |
| No siren sound | Speaker not connected; Damaged speaker; Incorrect tone selection; Internal fault. | Check speaker wiring; Test speaker with another source; Ensure correct tone switch is engaged; Contact Federal Signal support if problem persists. |
| Distorted or weak sound | Low voltage; Damaged speaker; Loose speaker connection. | Check vehicle battery voltage; Inspect speaker for damage; Secure speaker connections. |
If troubleshooting steps do not resolve the issue, contact Federal Signal customer support for further assistance.
9. Specifications
- Model: MS4000
- Brand: Federal Signal
- Output Power: 100 Watts
- Dimensions (L x W x H): 5.5 x 6.5 x 1.5 inches
- Weight: 2.5 Pounds
- Tones: Wail, Yelp, Priority, Manual (peak and hold), Air Horn
- Protection: Output short circuit protected, replaceable fuse
- Manufacturer: Federal Signal
10. Warranty and Support
For information regarding product warranty, technical support, or service, please contact Federal Signal directly through their official website or customer service channels. Keep your purchase receipt and product serial number handy when contacting support.
Visit the official Federal Signal website for the most current information: www.fedsig.com
