Swanstone SF03460MD.040 Solid Surface Shower Base Instruction Manual

Introduction

This manual provides essential information for the installation, usage, and maintenance of your Swanstone SF03460MD.040 Solid Surface Shower Base. Manufactured in the USA, Swanstone products are known for their superior impact strength, heat resistance, and durability. This shower base is designed to be non-porous, highly durable, and resistant to mold and mildew, ensuring a long-lasting and easy-to-maintain solution for your bathroom.

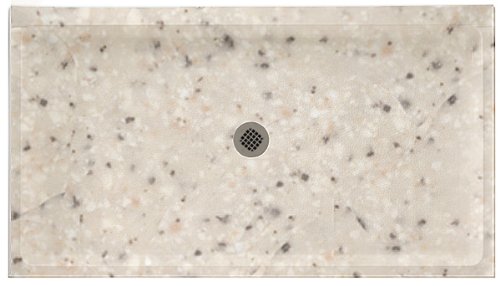

Figure 1: Swanstone SF03460MD.040 Solid Surface Shower Base in Bermuda Sand. This image displays the Swanstone solid surface shower base, model SF03460MD.040, in Bermuda Sand. The base measures 60 inches in length by 34 inches in width and 5.5 inches in height. It features a speckled, non-porous surface with a pre-installed drain located centrally, designed for efficient water flow and easy installation.

Setup and Installation

The Swanstone SF03460MD.040 shower base is designed for straightforward installation. It comes with a pre-installed Fit-Flo drain, which significantly reduces installation time. No assembly is required for the base itself.

Pre-Installation Checklist:

• Ensure the subfloor is level, clean, and structurally sound.
• Verify rough-in plumbing for the drain aligns with the shower base's pre-installed drain.
• Confirm all necessary tools and materials (e.g., mortar bed, shims, sealant, plumbing connections) are available.
• Read all local building codes and plumbing regulations before beginning installation.

Installation Steps (General Guidelines):

1. Prepare the Area: Clear the installation area. Ensure the subfloor is clean, dry, and level.
2. Mortar Bed Application: Apply a uniform bed of mortar (or recommended setting material) to the subfloor where the shower base will rest. This provides solid support and prevents flexing.
3. Position the Base: Carefully lower the shower base onto the mortar bed, aligning the pre-installed drain with the rough-in plumbing.
4. Leveling: Use a level to ensure the shower base is perfectly level in all directions. Adjust as necessary by gently pressing down or adding shims under the base if required (ensure shims are fully supported by mortar).
5. Drain Connection: Connect the shower base drain to the waste pipe according to plumbing codes and manufacturer instructions for the specific drain type. Ensure all connections are watertight.
6. Secure the Base: Allow the mortar to cure completely as per its manufacturer's instructions. The base should be firmly set and not move.
7. Wall Preparation: Once the base is secure, proceed with wall installation (e.g., tile backer board, shower walls) ensuring proper waterproofing and sealing where walls meet the shower base.
8. Seal Edges: Apply a high-quality silicone sealant along all seams where the shower base meets the walls and floor to prevent water penetration.

Note: For detailed, step-by-step installation instructions, always refer to the specific installation guide provided with your shower base packaging, or consult a qualified professional.

Usage and Care

The Swanstone shower base is designed for daily use and offers a durable, slip-resistant surface. Its non-porous material inherently resists mold and mildew, simplifying maintenance.

Daily Use:

• The pebbled surface provides enhanced slip resistance.
• Avoid dropping heavy or sharp objects onto the surface, as this could cause damage.
• Ensure proper ventilation in the bathroom to minimize moisture buildup.

Cleaning and Maintenance:

Due to its solid surface construction, the color and texture run all the way through the material, meaning it cannot wear away. This makes the base highly resistant to stains and easy to clean.

• For routine cleaning, use a soft cloth or sponge with warm water and a mild, non-abrasive household cleaner.
• Rinse thoroughly with water after cleaning to remove all cleaner residue.
• Avoid using abrasive cleaners, scouring pads, or harsh chemicals (e.g., paint removers, strong acids, or alkalis) as these can damage the surface finish.
• For stubborn stains, a paste of baking soda and water can be applied, gently rubbed, and then rinsed.
• The non-porous nature means there is no grout to clean, simplifying upkeep.

Troubleshooting

This section addresses common issues you might encounter with your shower base.

Drainage Issues:

• Slow Drainage: Check the drain for hair or soap scum buildup. Remove the drain cover and clear any obstructions.
• Standing Water: If water pools on the base, ensure the base was installed perfectly level. If not, this may indicate an installation issue requiring professional assessment.

Surface Concerns:

• Scratches: Minor surface scratches on solid surface materials can often be buffed out. Consult Swanstone's official care guide for specific repair recommendations or contact customer support.
• Discoloration/Stains: Refer to the "Cleaning and Maintenance" section for stain removal. Ensure you are not using harsh chemicals that could cause discoloration.

Leaks:

• Water Seepage: Inspect the sealant around the edges of the shower base where it meets the walls. Reapply silicone sealant if cracks or gaps are present.
• Plumbing Leaks: If water is appearing under the base or in an adjacent area, the plumbing connections to the drain may be leaking. This requires immediate attention from a qualified plumber.

Specifications

Warranty Information

The Swanstone SF03460MD.040 Solid Surface Shower Base is backed by a Limited Lifetime Warranty. This warranty covers defects in material and workmanship under normal use and service. For full details regarding coverage, limitations, and how to make a claim, please refer to the official warranty documentation provided with your product or visit the Swanstone official website.

Customer Support

For further assistance, technical support, or warranty inquiries, please contact Swanstone customer service. You can also find more information and resources by visiting the official Swanstone store online.

• Online Store: Visit the Swanstone Store on Amazon
• General Inquiries: Refer to the contact information provided on the Swanstone official website or product packaging.
