Hilti DX E72 Powder Actuated Nailer Instruction Manual

Introduction

The Hilti DX E72 Powder Actuated Nailer is a robust, industrial-grade tool designed for heavy-duty fastening tasks. This automatic nailer features a tough, high-density polymer construction for durability, and a padded grip for operator comfort during extended use. It efficiently drives fasteners up to 72mm into concrete and steel, making it ideal for construction and renovation projects. The DX E72 also boasts an automatic cartridge ejection system for quick and easy reloads.

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Hilti DX E72 Powder Actuated Nailer. Please read it thoroughly before using the tool.

Safety Information

WARNING: Powder actuated tools are powerful and can cause serious injury or death if not used properly. Always follow all safety guidelines.

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves.
• Never point the tool at yourself or others.
• Ensure the work area is clear of bystanders.
• Use only Hilti approved fasteners and cartridges.
• Do not use the tool in explosive atmospheres.
• Keep the tool clean and in good working condition.
• Store the tool and cartridges securely, out of reach of children.

Package Contents

Upon opening the carrying case, verify that all components are present and undamaged.

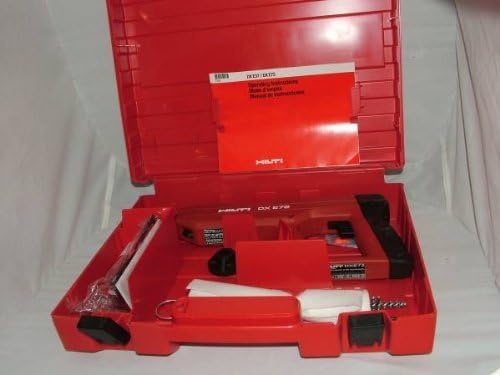

Image: The Hilti DX E72 tool, accessories, and instruction manual neatly organized within its durable red carrying case, ready for transport or storage.

Image: All components of the Hilti DX E72 set, including the nailer, instruction manual, cleaning kit, lubricant, and safety glasses, displayed outside the case.

• Hilti DX E72 Powder Actuated Nailer
• Red Carrying Case
• Instruction Manual
• Cleaning Kit (brush, lubricant)
• Safety Glasses (if included in set)

Setup

Before first use, ensure the tool is clean and free from any debris. Familiarize yourself with the tool's components.

Image: A clear side profile of the Hilti DX E72 nailer, highlighting its ergonomic design and robust polymer construction.

Image: An alternative side view of the Hilti DX E72, providing a comprehensive look at its form factor and key operational areas.

1. Inspect the Tool: Check for any visible damage or loose parts. Do not use a damaged tool.
2. Select Fasteners and Cartridges: Choose the appropriate Hilti fasteners (up to 72mm) and powder cartridges for your application (concrete or steel). Refer to Hilti's fastener selection guide for optimal performance.
3. Load Cartridge: Follow the specific instructions in the detailed manual for loading the powder cartridge into the tool's chamber. Ensure it is seated correctly.
4. Load Fastener: Insert the chosen fastener into the barrel of the tool.

Operating Instructions

The Hilti DX E72 is designed for efficient and reliable fastening. Always maintain a firm grip and stable stance during operation.

1. Prepare Work Surface: Ensure the material to be fastened into (concrete or steel) is clean, dry, and free of obstructions.
2. Position the Tool: Place the muzzle of the tool firmly and perpendicularly against the work surface at the desired fastening point. The tool requires sufficient contact pressure to activate.
3. Fire the Tool: While maintaining firm pressure against the surface, pull the trigger. The tool will fire, driving the fastener into the material.
4. Automatic Cartridge Ejection: The DX E72 features an automatic cartridge ejection system. The spent cartridge will be ejected after firing, preparing the tool for the next shot.
5. Reload: If more fasteners are needed, load a new fastener and, if necessary, a new cartridge.

Important: If the tool does not fire, keep it pressed against the surface for at least 30 seconds before attempting to remove it. This allows for potential delayed ignition. If it still doesn't fire, refer to the Troubleshooting section.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Hilti DX E72. Perform cleaning and inspection after each significant period of use.

• Cleaning: Use the provided cleaning brush and lubricant to clean the barrel, piston, and other moving parts. Remove any powder residue or debris.
• Lubrication: Apply a thin layer of Hilti lubricant to all specified moving parts as per the detailed manual.
• Inspection: Regularly inspect the tool for wear, damage, or loose components. Pay close attention to the barrel, piston, and trigger mechanism.
• Storage: Store the tool in its original carrying case in a dry, secure location, away from extreme temperatures and moisture.
• Professional Service: For complex repairs or internal component replacement, always contact an authorized Hilti service center.

Troubleshooting

If you encounter issues with your Hilti DX E72, refer to the following common problems and solutions:

For issues not listed here or if solutions do not resolve the problem, contact Hilti customer support or an authorized service center.

Specifications

Warranty and Support

Hilti products are known for their quality and durability. For specific warranty information, please refer to the warranty card included with your product or visit the official Hilti website.

For technical support, service, or to order genuine Hilti accessories and spare parts, please contact Hilti customer service or your local Hilti representative. Contact information can typically be found on the Hilti website or in the product packaging.

Online Resources: www.hilti.com
