Mann Filter CF400 Safety Element User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Mann Filter CF400 Safety Element. The CF400 is designed as a safety element for air filtration systems, ensuring optimal performance and protection for your equipment.

For detailed application-specific instructions, always refer to the equipment manufacturer's service manual.

2. Product Overview

The Mann Filter CF400 Safety Element is engineered for high performance and durability. Key features include:

• Specially embossed paper for good pleat stability: Ensures consistent filtration performance and structural integrity.
• Compact Design: Package Dimensions: 9.4 H x 37 L x 9.6 W (centimeters).
• Lightweight: Package Weight: 0.573 pounds.
• Country of Origin: Germany, ensuring high manufacturing standards.

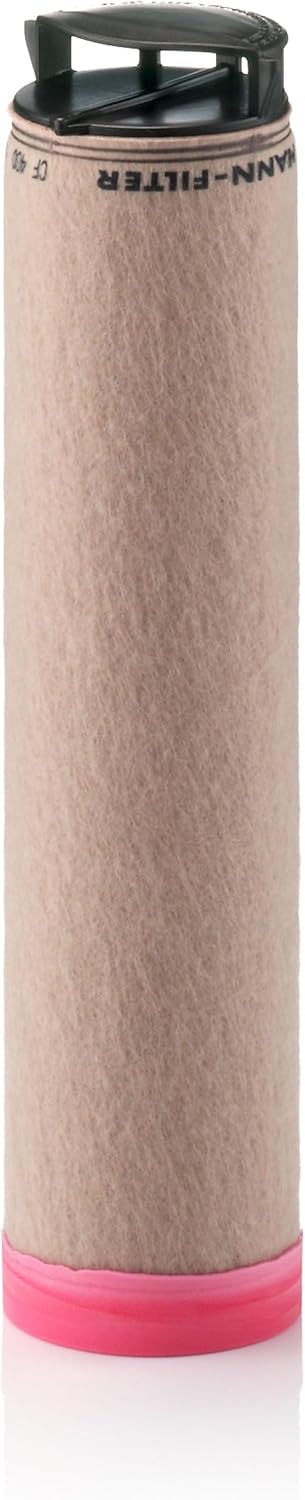

Figure 2.1: Front view of the Mann Filter CF400 Safety Element. This image shows the cylindrical shape of the filter with its beige filtration media and a pink base, topped with a black cap.

Figure 2.2: Mann Filter CF400 Safety Element with indicated dimensions. The image displays the filter with labels 'A' for diameter and 'H' for height, illustrating its physical measurements.

3. Setup and Installation

The Mann Filter CF400 Safety Element is designed for straightforward installation into compatible air filtration systems. Proper installation is crucial for optimal performance and safety.

3.1 Safety Precautions

• Always ensure the equipment is turned off and de-energized before beginning any installation or maintenance.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
• Refer to the equipment's original manufacturer manual for specific safety warnings and procedures related to air filter replacement.

3.2 Installation Steps (General Guidance)

1. Locate the air filter housing on your equipment.
2. Carefully open or unlatch the housing cover.
3. Remove the old filter element, noting its orientation. Dispose of the old filter responsibly.
4. Clean the inside of the air filter housing, removing any dust or debris. Ensure no foreign objects fall into the air intake.
5. Insert the new Mann Filter CF400 Safety Element, ensuring it is seated correctly and oriented as the previous filter. Do not force the filter into place.
6. Securely close the air filter housing cover, ensuring all latches or clamps are properly engaged.
7. Verify that the installation is complete and the housing is sealed before restarting the equipment.

Note: These are general steps. Specific equipment may have unique installation requirements.

4. Operation

Once correctly installed, the Mann Filter CF400 Safety Element operates passively as part of your equipment's air intake system. Its primary function is to provide an additional layer of filtration, protecting the engine or sensitive components from harmful particles in case the main filter is compromised or during maintenance.

No user interaction is required for the operation of the safety element itself. Its effectiveness is maintained through proper installation and timely replacement.

5. Maintenance

Regular inspection and timely replacement of the Mann Filter CF400 Safety Element are vital for maintaining the efficiency and longevity of your equipment's air filtration system.

5.1 Inspection

• Inspect the safety element during routine maintenance checks of the main air filter.
• Look for signs of damage, excessive dirt accumulation, or tears in the filter media.
• A safety element should generally remain clean. If it shows significant contamination, it indicates a problem with the main filter or the air intake system.

5.2 Replacement

• The safety element should be replaced whenever the main air filter is replaced, or if it shows any signs of damage or significant contamination.
• Always replace with a genuine Mann Filter CF400 Safety Element or an equivalent specified by the equipment manufacturer.
• Follow the installation steps outlined in Section 3.2 for replacement.

6. Troubleshooting

The safety element itself is a passive component and does not typically "malfunction." However, issues related to air filtration can arise if the safety element is compromised or if the main filter fails.

6.1 Common Indicators of Air Filtration Issues

• Reduced Engine Performance: A severely clogged main filter, or a compromised safety element, can restrict airflow, leading to power loss.
• Increased Fuel Consumption: Inefficient air intake can cause the engine to work harder, consuming more fuel.
• Warning Lights: Some modern equipment may trigger dashboard warning lights related to air intake or engine performance.
• Visible Dirt in Air Intake System: If the safety element is dirty, it indicates that the main filter has failed to protect the system.

6.2 Troubleshooting Steps

1. Inspect Main Air Filter: Check the primary air filter for clogging or damage. Replace if necessary.
2. Inspect Safety Element: If the main filter appears fine, inspect the CF400 safety element for any signs of dirt, damage, or tears. If contaminated or damaged, replace it immediately.
3. Check Air Intake System: Ensure all connections and hoses in the air intake system are secure and free from leaks.
4. Consult Equipment Manual: For persistent issues, refer to your equipment's service manual or consult a qualified technician.

7. Specifications

Detailed specifications for the Mann Filter CF400 Safety Element:

7.1 What's in the Box

• 1 x Mann Filter CF400 Safety Element

8. Warranty and Support

For information regarding warranty coverage, claims, or technical support for your Mann Filter CF400 Safety Element, please contact Mann Filter directly or the authorized seller from whom you purchased the product.

You can often find contact information on the official Mann Filter website or through your product's purchase documentation.

Visit the official Mann Filter store for more information: Mann Filter Store
