Introduction
This manual provides essential information for the safe and efficient operation of your Miele W 1743 WPS Ecoline washing machine. Please read these instructions carefully before installation, first use, and maintenance to ensure optimal performance and longevity of your appliance. Keep this manual in a safe place for future reference.
Safety Information
Always adhere to basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is equipped with a child lock feature to prevent unintended operation. Ensure the appliance is properly installed and grounded. Do not allow children to play with or operate the washing machine. Disconnect the appliance from the power supply before any cleaning or maintenance.
Product Overview
Key Features
- Intelligent washing system.
- Patented drum with a load capacity of 1-6 kg.
- Automatic load sensing for optimized energy and water saving.
- Electronic foam regulation.
- Display for viewing and adjusting various functions.
- High-quality 2K door design.
- Ergonomic door opening for enhanced user comfort.
- Attractive appliance design with a slanted opening.
- Enameled front panel.
- Display color: Lotus white.
- Unbeatably quiet operation due to noise insulation and a special drive system.
- Waterproof system for enhanced safety.
Product Image

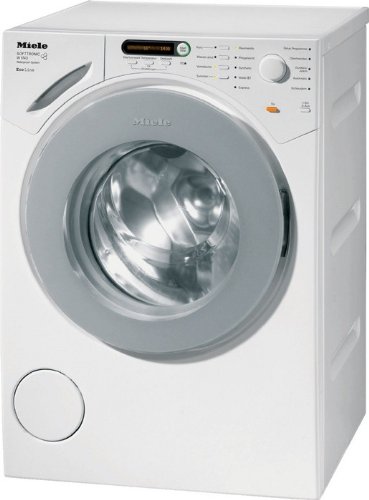

This image shows the Miele W 1743 WPS Ecoline front-loading washing machine. It features a white casing, a large grey-rimmed porthole door for loading laundry, and a control panel at the top. The control panel includes a digital display, various program selection buttons, and a rotary dial for program selection. A small circular cover is visible at the bottom left, likely for the drain filter.
Setup and Installation
The Miele W 1743 WPS Ecoline washing machine is designed for flexible installation. It can be stacked with a compatible tumble dryer using an appropriate stacking kit (sold separately). Alternatively, it can be pushed under a counter, provided the recess height is at least 85 cm. Ensure the appliance is placed on a firm, level surface and properly connected to the water supply and drainage system according to local regulations. The electrical connection must be made to a grounded outlet.
Operating Instructions
Program Selection
Programs are selected using the rotary switch and displayed on the screen. The display also shows the selected program and allows for washing at low temperatures (cold and 20 °C).
Washing Programs
- Automatic
- Cotton
- Easy Care
- Synthetics
- Shirts
- Dark Jeans
- Hand-washable Wool
- Express
- Spin
- Intensive Plus
Program Options
- Short (reduces program duration)
- Pre-wash (for heavily soiled laundry)
- Water Plus (increases water level for improved rinsing)
Spin Cycle
- Spin speed selection from 400 to 1400 rpm.
- Rinse hold function.
- No spin function.
- Imbalance detection system.
User Comfort Features
- Delayed start function, allowing you to set the start time up to 24 hours in advance.
- Remaining time indicator on the display.
Maintenance
Regular maintenance ensures the optimal performance and longevity of your Miele washing machine. This includes cleaning the detergent dispenser, checking and cleaning the drain filter, and wiping down the drum and door seal. Always refer to the specific cleaning instructions in the full product manual for detailed guidance. Disconnect the appliance from the power supply before performing any maintenance.
Troubleshooting
The washing machine's display provides visual indications of various control functions, which can assist in identifying potential issues. In case of a malfunction, the appliance features a customer service test program to aid diagnostics. For common issues, consult the troubleshooting section of the comprehensive manual. If the problem persists, contact Miele customer service.
Technical Specifications
| Attribute | Specification |
|---|---|
| Brand | Miele |
| Model Number | W1743WPS |
| Capacity | 6 Kilograms |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 174 kWh/year |
| Water Consumption (per cycle) | 47 Liters |
| Energy Consumption (per cycle) | 1.02 kWh (10% more economical than Energy Efficiency Class A) |
| Noise Level | 52 dB |
| Dimensions (H x W x D) | 85 x 59.5 x 63.4 cm |
| ASIN | B001XZ1QZO |
| First Available Date | 31 July 2010 |
Warranty and Support
Specific warranty details are not available in the provided product information. For warranty claims, technical support, or service inquiries, please contact Miele customer service directly or refer to the warranty card included with your appliance at the time of purchase. Ensure you have your model number (W1743WPS) and purchase date ready when contacting support.
