Zuo Criss Cross Office Chair Instruction Manual

Important Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Assembly is required. Ensure all parts are present and undamaged before beginning assembly.
• Do not use the chair if any parts are damaged or missing.
• Keep fingers clear of moving parts, especially when adjusting the seat height, to prevent pinching.
• Do not exceed the maximum weight capacity of 250 pounds (113 kg).
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Setup and Assembly

Basic home assembly is required for the Zuo Criss Cross Office Chair. Ensure you have adequate space and all components before starting.

Components Overview

• Seat with integrated armrests
• Backrest (webbed leatherette)
• Chrome-plated solid steel frame
• 5-caster chrome base
• Gas lift cylinder
• Hardware kit (screws, washers, Allen wrench)

Assembly Steps

1. Attach Casters to Base: Insert each of the five casters firmly into the openings at the end of each leg of the chrome base until they click into place.
2. Insert Gas Lift: Place the gas lift cylinder into the central hole of the assembled 5-caster chrome base. Ensure it is seated securely.
3. Attach Seat to Gas Lift: Carefully align the central mechanism under the seat with the top of the gas lift cylinder. Lower the seat onto the gas lift, applying gentle pressure until it is seated.
4. Secure Backrest: Attach the backrest to the seat frame using the provided screws and Allen wrench. Ensure all screws are tightened securely but do not overtighten.

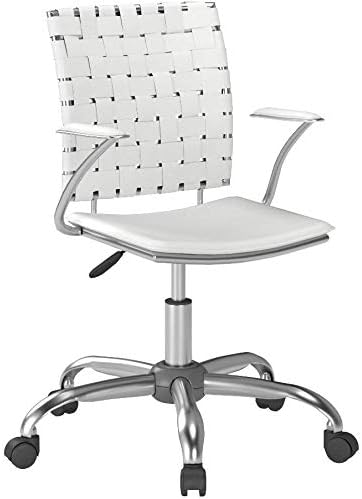

Image: Front-side view of the assembled Zuo Criss Cross Office Chair, showcasing the seat, backrest, armrests, and base.

Operating Instructions

The Zuo Criss Cross Office Chair is designed for ease of use and mobility in an office environment.

Height Adjustment

• To raise the seat: While seated, lift the lever located under the right side of the seat. The seat will rise automatically. Release the lever at the desired height.
• To lower the seat: While seated, lift the lever located under the right side of the seat. Apply your body weight to lower the seat. Release the lever at the desired height.
• The seat height can be adjusted between approximately 15.5 inches and 20.5 inches from the floor.

Mobility and Swivel

• The 5-caster chrome base allows for smooth movement across various floor surfaces.
• The chair features a 360-degree swivel function, enabling easy rotation without moving the base.

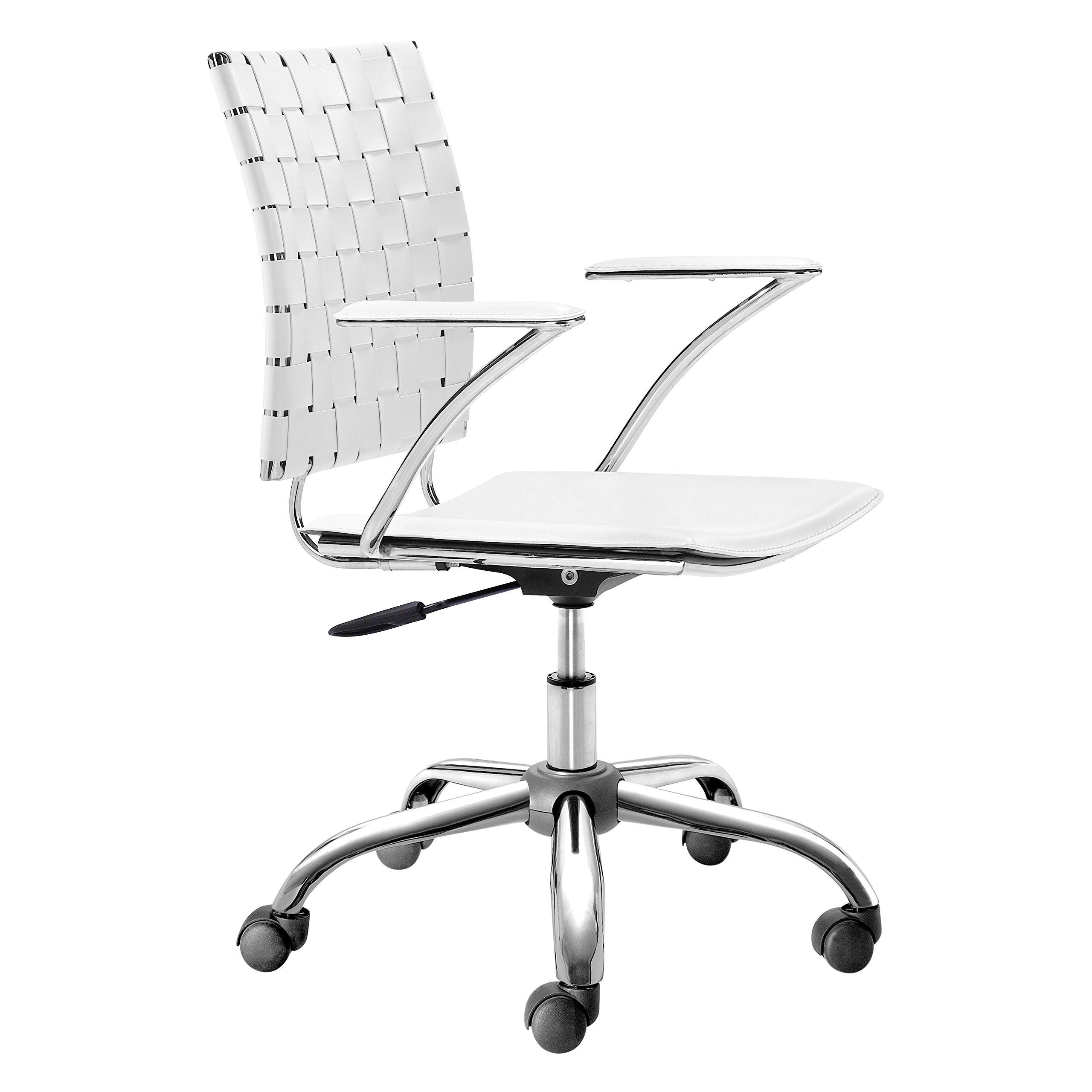

Image: Side view of the Zuo Criss Cross Office Chair, illustrating its adjustable height and overall dimensions.

Maintenance and Care

Proper care will help maintain the appearance and longevity of your Zuo Criss Cross Office Chair.

• Cleaning the Leatherette: Wipe the leatherette seat and backrest clean with a damp cloth. For tougher spots, use a mild soap solution and then wipe with a clean, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Cleaning the Chrome Frame: The chrome-plated solid steel frame can be cleaned with a soft, damp cloth. For polishing, use a non-abrasive chrome cleaner as directed by the product manufacturer.
• Caster Maintenance: Periodically check casters for hair or debris accumulation and clean as needed to ensure smooth rolling.
• Hardware Check: Occasionally check all screws and bolts to ensure they remain tight. Retighten if necessary.

Image: Back view of the Zuo Criss Cross Office Chair, highlighting the distinctive webbed backrest design.

Troubleshooting

If you encounter issues with your Zuo Criss Cross Office Chair, refer to the following common problems and solutions.

• Chair does not adjust height:
  Ensure the gas lift lever is fully engaged. If the issue persists, the gas lift cylinder may need replacement. Contact customer support for assistance.
• Chair wobbles or feels unstable:
  Check all assembly screws to ensure they are securely tightened. Verify that the gas lift is properly seated in the base and seat mechanism. Ensure the chair is on a flat, even surface.
• Casters do not roll smoothly:
  Inspect casters for any accumulated debris such as hair or lint. Clean the casters thoroughly. If a caster is damaged, it may need replacement. Note that replacement casters may require specific dimensions.
• Lattice pieces on backrest appear detached:
  While the webbed backrest is designed for durability, individual leatherette straps may shift. Gently reposition them if possible. If structural damage is evident, contact customer support.
• Chair does not recline or tilt:
  This model features a fixed backrest and does not include a reclining or tilting mechanism. The 'Reclining Position Count: 1' specification refers to a single, fixed back position.

Specifications

Warranty Information

The Zuo Criss Cross Office Chair comes with a limited 1-year warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use.

The warranty does not cover:

• Normal wear and tear.
• Damage resulting from misuse, abuse, neglect, accident, or alteration.
• Damage caused by improper assembly or maintenance.
• Damage to casters due to custom sizing requirements for replacements.

To make a warranty claim, please retain your proof of purchase and contact the retailer or manufacturer directly.

Customer Support

For further assistance, parts inquiries, or warranty claims, please contact your original retailer or the manufacturer, Zuo Modern. Please have your model number (205031) and proof of purchase available when contacting support.
