Dorman CC649005 Clutch Master and Slave Cylinder Assembly

1. Product Overview

The Dorman CC649005 Clutch Master and Slave Cylinder Assembly is engineered as a direct replacement for the original part in specific Ford vehicle models. This assembly is designed to restore proper clutch operation and ensure reliable performance.

Key features of this assembly include:

• Direct Replacement: Reverse-engineered to match the fit and function of the original equipment.
• Durable Components: Constructed with high-quality EPDM rubber components to ensure compatibility with brake fluid and long-term durability.
• Performance Assured: The unit comes pre-filled with fluid and pre-bled, eliminating the need for manual bleeding during installation and ensuring immediate operational readiness.
• Reliable Design: Developed in North America, leveraging extensive automotive aftermarket experience for a dependable solution.

Figure 1: Complete Dorman CC649005 Clutch Master and Slave Cylinder Assembly, showing the master cylinder, slave cylinder, and pre-filled fluid line.

2. Product Specifications

3. Vehicle Compatibility

This Dorman CC649005 Clutch Master and Slave Cylinder Assembly is compatible with select Ford models. It is crucial to verify fitment for your specific vehicle before installation.

Known compatible vehicles include:

• Ford F Super Duty: 1993, 1994, 1995, 1996, 1997
• Ford F-250 HD: 1997
• Ford F-250: 1993, 1994, 1995, 1996
• Ford F-350: 1993, 1994, 1995, 1996, 1997
• Ford F59: 1993, 1994, 1995, 1996, 1997

Note: Always confirm compatibility using a vehicle fitment tool or by consulting your vehicle's service manual.

4. Installation Guide

The Dorman CC649005 assembly is designed for straightforward installation due to its pre-filled and pre-bled nature. However, professional installation is recommended. Always refer to your vehicle's specific service manual for detailed instructions and safety precautions.

General Installation Steps:

1. Preparation: Ensure the vehicle is safely lifted and supported. Disconnect the battery. Locate the existing clutch master and slave cylinder assembly.
2. Fluid Containment: Place a drain pan beneath the slave cylinder to catch any residual brake fluid during removal.
3. Removal of Old Assembly:
   • Disconnect the fluid line from the master cylinder.
   • Remove mounting bolts securing the master cylinder to the firewall.
   • Disconnect the slave cylinder from the transmission or bell housing.
   • Carefully remove the entire old assembly from the vehicle.
4. Installation of New Assembly:
   • Position the new Dorman CC649005 assembly.
   • Secure the slave cylinder to its mounting point on the transmission/bell housing.
   • Mount the master cylinder to the firewall using the appropriate bolts.
   • Connect the pre-filled fluid line to both the master and slave cylinders, ensuring all connections are secure and leak-free.

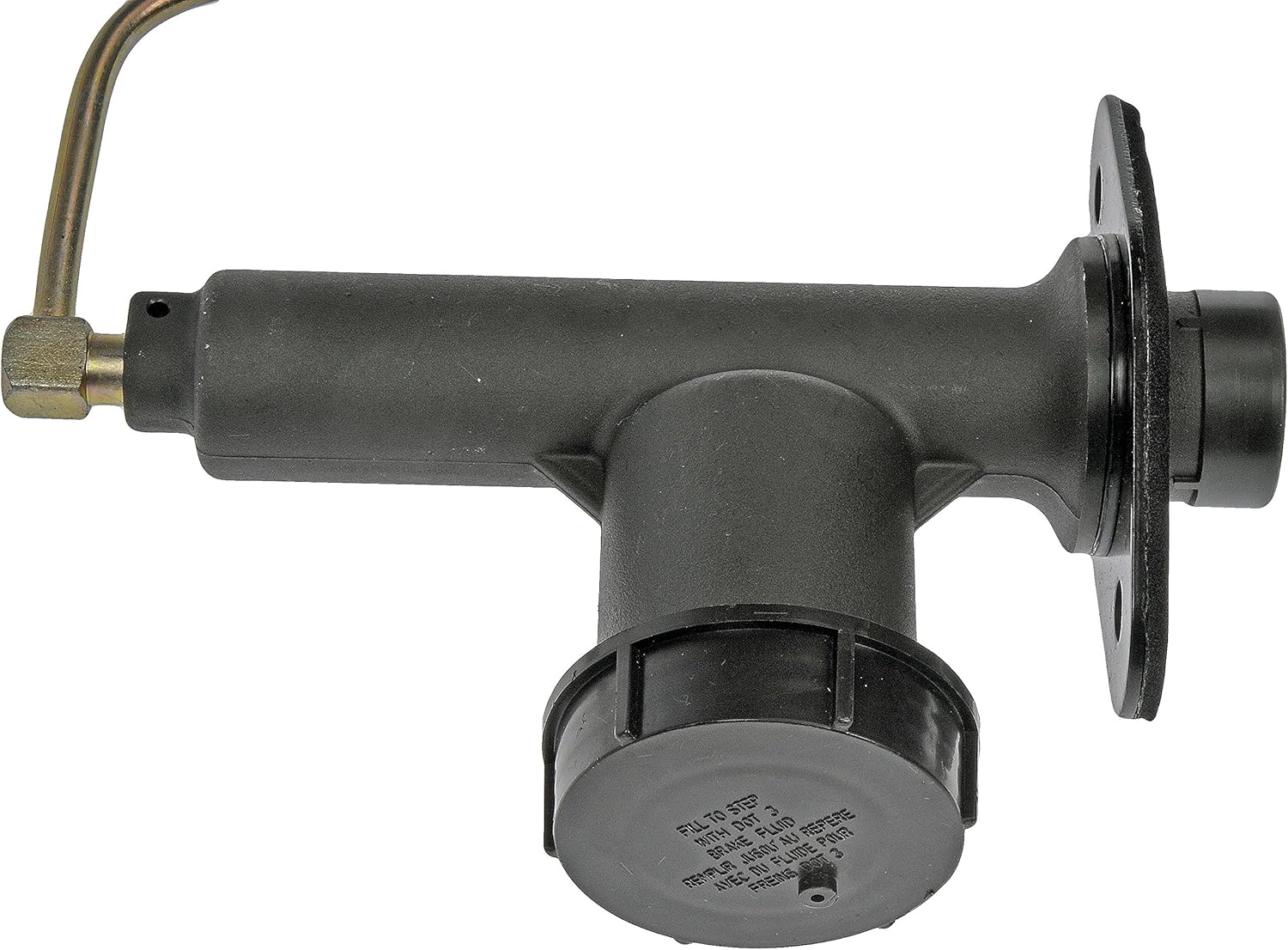

   Figure 2: Left: Close-up of the master cylinder. Right: Close-up of the slave cylinder, showing the pre-attached fluid line connection point.
5. Final Checks:
   • Verify all connections are tight and there are no leaks.
   • Since the unit is pre-bled, manual bleeding is typically not required. However, if clutch pedal feel is not firm, consult your vehicle's service manual for bleeding procedures.
   • Reconnect the battery.
6. Test Operation: Start the vehicle and test clutch engagement and disengagement in a safe environment.

For a comprehensive installation guide, please refer to the official Installation Manual (PDF) provided by Dorman.

5. Operation

Once correctly installed, the Dorman CC649005 Clutch Master and Slave Cylinder Assembly functions as a critical component of your vehicle's hydraulic clutch system. It translates the mechanical force from the clutch pedal into hydraulic pressure, which then actuates the clutch release mechanism.

• When the clutch pedal is depressed, the master cylinder generates hydraulic pressure.
• This pressure is transmitted through the fluid line to the slave cylinder.
• The slave cylinder then moves the clutch release fork, disengaging the clutch from the flywheel, allowing for gear changes.
• Releasing the clutch pedal reverses this process, engaging the clutch.

A properly functioning assembly will provide a smooth and consistent clutch pedal feel, enabling precise control over gear shifts.

6. Maintenance

The Dorman CC649005 Clutch Master and Slave Cylinder Assembly is designed for long-term reliability with minimal maintenance. However, regular checks of your vehicle's hydraulic clutch system are recommended as part of routine vehicle maintenance.

• Fluid Level Check: Periodically check the brake fluid level in the master cylinder reservoir (if accessible and separate from brake master cylinder). Ensure it is within the recommended range. Use only DOT 3 or DOT 4 brake fluid as specified by your vehicle manufacturer.
• Leak Inspection: Visually inspect the master cylinder, slave cylinder, and the fluid line for any signs of leaks. Address any leaks immediately to prevent system failure.
• Pedal Feel: Pay attention to the clutch pedal feel. Any sponginess, excessive stiffness, or changes in engagement point may indicate an issue with the hydraulic system.
• Fluid Replacement: Consult your vehicle's service manual for recommended brake fluid flush intervals. While this assembly is pre-filled, the overall system fluid should be maintained according to manufacturer specifications.

7. Troubleshooting Common Issues

If you experience issues with your clutch system after installing the Dorman CC649005 assembly, consider the following common problems and their potential solutions:

• Spongy or Soft Clutch Pedal:

  Possible Cause: Air in the hydraulic system. Although the unit is pre-bled, air can sometimes enter during installation or if the system was previously compromised.

  Solution: Bleed the clutch hydraulic system. Refer to your vehicle's service manual for the correct bleeding procedure. Ensure the master cylinder reservoir is kept full during bleeding.

• Clutch Not Disengaging (Difficulty Shifting Gears):

  Possible Cause: Insufficient hydraulic pressure, air in the system, or a mechanical issue with the clutch fork or pressure plate.

  Solution: Check fluid level. Bleed the system thoroughly. Inspect the clutch fork and pivot ball for wear or damage. If the issue persists, further diagnosis by a qualified mechanic may be required.

• Fluid Leaks:

  Possible Cause: Loose connections, damaged seals, or a faulty component.

  Solution: Inspect all connections for tightness. Check the master and slave cylinders for external damage or fluid seepage. Replace any leaking components or tighten connections as necessary.
• Stiff Clutch Pedal:

  Possible Cause: Obstruction in the fluid line, internal master or slave cylinder issue, or a problem with the clutch pressure plate.

  Solution: Check the fluid line for kinks or blockages. If the issue is with the new assembly, contact Dorman support. Otherwise, inspect the clutch pressure plate and release bearing.

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified automotive technician.

8. Warranty and Support

Dorman Products stands behind the quality and performance of its parts. For specific warranty information regarding the CC649005 Clutch Master and Slave Cylinder Assembly, please refer to the warranty documentation included with your purchase or visit the official Dorman website.

For technical support, installation assistance, or warranty claims, please contact Dorman customer service through their official channels. You can often find contact information on the product packaging or on the Dorman website.

Dorman is committed to providing solutions that give repair professionals and vehicle owners greater freedom to fix cars and trucks, backed by over 100 years of experience in the automotive aftermarket.
