BGS 6448 Deep E-Profile Socket, 12.5 mm (1/2"), E18 Instruction Manual

1. Introduction

Thank you for choosing the BGS 6448 Deep E-Profile Socket. This manual provides essential information for the safe and effective use, maintenance, and care of your new tool. Please read these instructions carefully before use and retain them for future reference.

2. Product Overview

The BGS 6448 is a high-quality deep E-profile socket designed for use with E-profile (external Torx) fasteners. It features a 12.5 mm (1/2") square drive, making it compatible with standard 1/2-inch drive ratchets, breaker bars, and extensions. The deep design allows access to recessed fasteners.

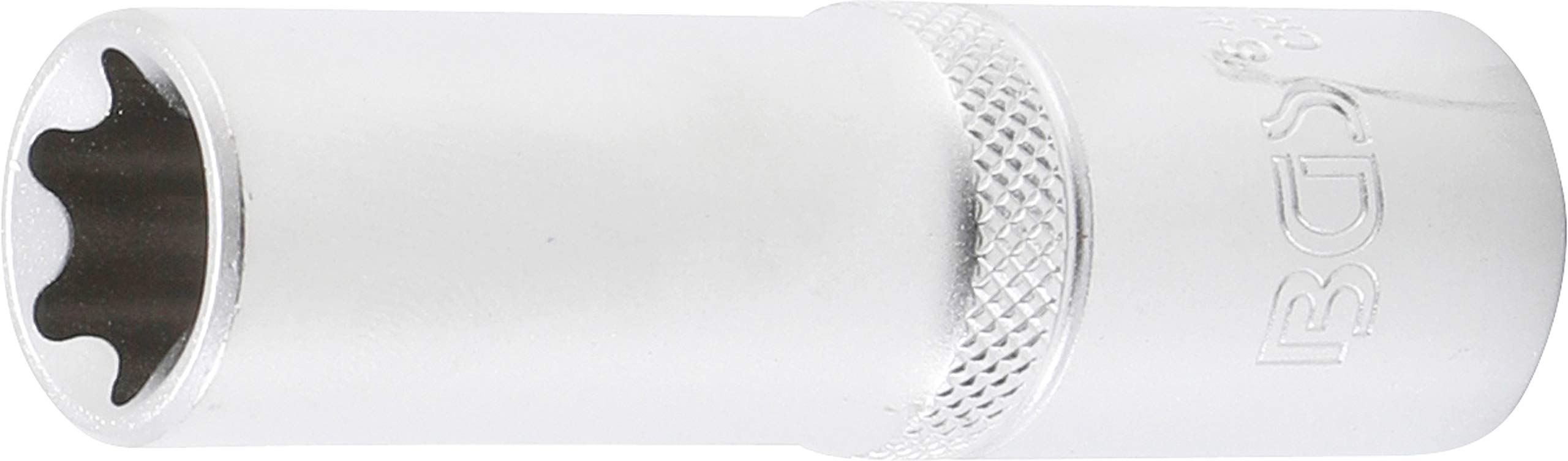

Image 1: BGS 6448 Deep E-Profile Socket, E18 size. This image displays the socket's deep design, E-profile opening, and the matte chrome-plated finish, highlighting its robust construction.

Key Features:

• Material: Made from durable chrome-vanadium steel (CVS) for strength and longevity.
• Profile: E-profile (External Torx) for specific fastener types.
• Size: E18.
• Drive Size: 12.5 mm (1/2") square drive.
• Finish: Chrome-plated, matte finish for corrosion resistance and improved grip.
• Knurling: Features knurling for enhanced grip during manual operation.

3. Safety Information

Always observe the following safety precautions when using hand tools:

• Wear appropriate personal protective equipment (PPE), such as safety glasses, to protect against flying debris.
• Ensure the socket is correctly seated on the fastener and the drive tool before applying force.
• Do not use damaged or worn sockets. Inspect the tool before each use.
• Do not use extensions or 'cheater bars' that exceed the intended leverage of the drive tool, as this can damage the socket or fastener.
• Keep hands and fingers clear of pinch points.
• Store tools in a clean, dry place, out of reach of children.

4. Setup

The BGS 6448 Deep E-Profile Socket is designed for straightforward attachment to compatible drive tools.

1. Select a 1/2-inch square drive ratchet, breaker bar, or extension that is appropriate for the task.
2. Align the square opening of the BGS 6448 socket with the square drive of your chosen tool.
3. Push the socket firmly onto the drive tool until it clicks into place or is securely seated. Ensure there is no wobble.
4. Verify that the E18 socket size matches the E-profile fastener you intend to work with.

5. Operating Instructions

Using the BGS 6448 Deep E-Profile Socket for fastening or loosening E-profile fasteners:

1. Preparation: Ensure the fastener and socket are clean and free of debris.
2. Engagement: Place the E18 socket squarely over the E-profile fastener head. Ensure the socket fully engages the fastener without any gaps or misalignment.
3. Application of Force: Apply steady, controlled force to the drive tool (ratchet, breaker bar). For loosening, turn counter-clockwise. For tightening, turn clockwise.
4. Avoid Stripping: Do not apply excessive force that could strip the fastener head or damage the socket. If the fastener is stuck, consider using penetrating oil or a different method.
5. Removal: Once the task is complete, carefully remove the socket from the fastener and then from the drive tool.

6. Maintenance

Proper maintenance will extend the life of your BGS 6448 socket:

• Cleaning: After each use, wipe the socket clean with a dry cloth to remove dirt, grease, or oil. For stubborn grime, use a mild degreaser and then dry thoroughly.
• Inspection: Regularly inspect the socket for signs of wear, cracks, or deformation. Discontinue use if any damage is observed.
• Storage: Store the socket in a tool tray, box, or on a socket rail in a dry environment to prevent rust and corrosion.

7. Troubleshooting

Most issues with a socket are related to incorrect usage or selection.

• Socket does not fit fastener: Ensure you are using the correct E18 size socket for an E-profile fastener. Do not force the socket onto an incorrect fastener type or size.
• Socket slips on fastener: This indicates either the socket is worn, the fastener head is stripped, or the socket is not fully engaged. Inspect both the socket and fastener. Replace worn tools or fasteners as necessary.
• Socket is stuck on drive tool: Apply a small amount of penetrating oil to the drive square and gently twist and pull to remove. Avoid excessive force.

8. Specifications

9. Warranty and Support

BGS Technic products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the official BGS Technic website or contact your authorized dealer. Keep your purchase receipt as proof of purchase.
