Purolator P1314 Transmission Filter User Manual

1. Product Overview

The Purolator P1314 Transmission Filter is designed to extend the lifespan of your vehicle's transmission fluid and the transmission itself. It achieves this by effectively capturing harmful particles and abrasive contaminants that can degrade fluid quality and cause wear on internal components. Regular replacement of this filter, along with the transmission fluid, is crucial for maintaining optimal transmission performance and longevity.

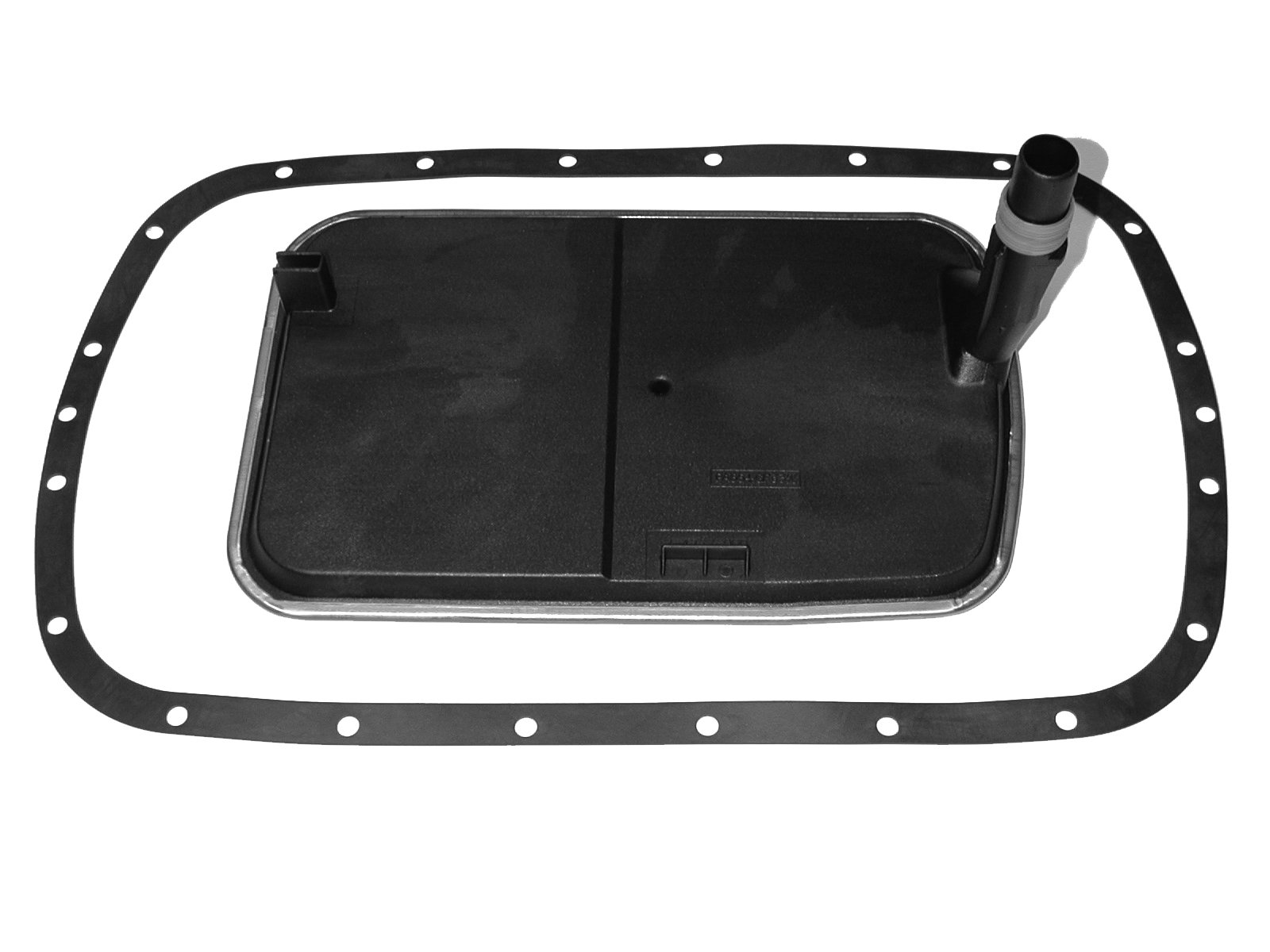

Image 1.1: The Purolator P1314 Transmission Filter, shown with its accompanying gasket. The filter unit is black and rectangular, featuring an integrated intake tube. The gasket is a black, elongated oval shape with multiple bolt holes, designed to seal the transmission pan.

2. Specifications

3. Setup and Installation

Installing a transmission filter requires mechanical knowledge and specific tools. It is highly recommended to consult your vehicle's official service manual for detailed, model-specific instructions and safety precautions before attempting installation. The following are general steps and considerations:

1. Safety First: Ensure the vehicle is on a level surface, the engine is off and cool, and the parking brake is engaged. Use jack stands to securely support the vehicle if lifting.
2. Locate Transmission Pan: Identify the transmission pan, typically located underneath the vehicle.
3. Drain Transmission Fluid: Place a drain pan underneath and carefully remove the drain plug (if present) or loosen the pan bolts to allow fluid to drain. Be prepared for fluid spillage.
4. Remove Transmission Pan: Once most fluid has drained, carefully remove all remaining bolts holding the transmission pan. Lower the pan slowly, as residual fluid may still be present.
5. Remove Old Filter: The old transmission filter will be visible inside the transmission. It is usually held in place by bolts or clips. Remove the old filter and discard it properly.
6. Clean Pan and Magnet: Thoroughly clean the inside of the transmission pan, removing any old gasket material and debris. Clean the pan magnet, which collects metallic particles.
7. Install New Filter: Install the new Purolator P1314 filter, ensuring it is securely seated and fastened according to your vehicle's specifications.
8. Install New Gasket and Pan: Place the new gasket (included with the filter) onto the clean transmission pan. Carefully reattach the pan to the transmission, tightening bolts evenly and to the manufacturer's specified torque.
9. Refill Transmission Fluid: Refer to your vehicle's manual for the correct type and amount of transmission fluid. Refill the transmission through the dipstick tube or fill port.
10. Check Fluid Level and Leaks: Start the engine, shift through gears, and recheck the fluid level according to your vehicle's manual (usually with the engine running and warm). Inspect for any leaks around the pan.

Disclaimer: If you are not confident in performing this procedure, it is advisable to seek assistance from a qualified automotive technician.

4. Operating and Maintenance

The Purolator P1314 Transmission Filter operates continuously to protect your transmission by filtering contaminants from the fluid. Its effectiveness relies on timely replacement.

Maintenance Schedule:

To ensure optimal performance and longevity of your transmission, it is very important to regularly change your transmission fluid and filter. Purolator recommends changing the filter every two years or 24,000 miles, or at intervals specifically recommended in your vehicle's owner's manual. Always prioritize the vehicle manufacturer's recommendations if they differ.

• Regular Checks: Periodically check your transmission fluid level and condition. Healthy transmission fluid should be reddish and clear, not dark or burnt-smelling.
• Fluid and Filter Replacement: Adhere strictly to the recommended service intervals for both fluid and filter replacement. This prevents excessive wear and potential transmission damage.

5. Troubleshooting

While the Purolator P1314 filter is designed for reliable performance, issues related to transmission fluid or filtration can manifest in various ways. This section provides general troubleshooting advice.

• Fluid Leaks After Installation:

  Possible Cause: Improperly seated gasket, loose transmission pan bolts, damaged pan, or incorrect torque on bolts.

  Solution: Recheck pan bolt torque, ensure the gasket is correctly positioned and not pinched, inspect the pan for deformities. If leaks persist, professional inspection is advised.

• Transmission Shifting Issues (e.g., hard shifts, delayed engagement):

  Possible Cause: Incorrect fluid level (too low or too high), incorrect fluid type, severely clogged filter (if not replaced on time), or internal transmission problem.

  Solution: Verify fluid level and type. If the filter is old, replace it. If issues persist after fluid and filter service, a diagnostic check by a professional is necessary.

• Unusual Noises from Transmission:

  Possible Cause: Low fluid level, contaminated fluid, or internal mechanical issue.

  Solution: Check fluid level and condition. If fluid is dark or smells burnt, a fluid and filter change is recommended. Persistent noises require professional diagnosis.
• Check Engine Light / Transmission Warning Light:

  Possible Cause: Various transmission-related issues, including sensor malfunctions, solenoid problems, or severe internal wear.

  Solution: Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs). Address the specific issue indicated by the codes. This often requires professional assistance.

Note: This troubleshooting guide is for general reference. Complex transmission issues should always be diagnosed and repaired by certified technicians.

6. Warranty and Support

For specific warranty information regarding your Purolator P1314 Transmission Filter, please refer to the official warranty documentation provided with your purchase or visit the official Purolator website. Warranty terms and conditions, including coverage duration and claim procedures, are subject to the manufacturer's policies.

Customer Support:

Should you require technical assistance, have questions about product compatibility, or need to inquire about warranty claims, please contact Purolator customer support through their official channels. This typically includes their official website, customer service phone numbers, or authorized distributors.

For general information about Purolator products, you may visit the Purolator Store on Amazon.
