1. Introduction
This manual provides essential information for the Gates FleetRunner 9510HD Heavy-Duty V-Belt. Gates FleetRunner Heavy-Duty V-belts are engineered for demanding heavy-duty applications, utilizing patented EPDM construction with a distinct green overcord. This design is specifically built for enhanced durability and extended service life in rigorous operational environments.
2. Product Features
- Patented Material: Provides peak performance even at extremely prolonged operating temperatures.
- Heavy-Duty Construction: Designed to resist cracking, wear, oil, and heat, ensuring longevity.
- Special Compound: Delivers unmatched stability, load-carrying capacity, and extended belt life.
- Unique Undercord Notch Pattern: Offers increased flexibility, making it suitable for smaller diameter pulleys.
- Problem Solver: An effective solution for troubled drives, minimizing downtime and maintenance costs.
3. Product Components
Figure 3.1: Gates 9510HD FleetRunner Heavy-Duty V-Belt, showcasing its green overcord and ribbed underside.

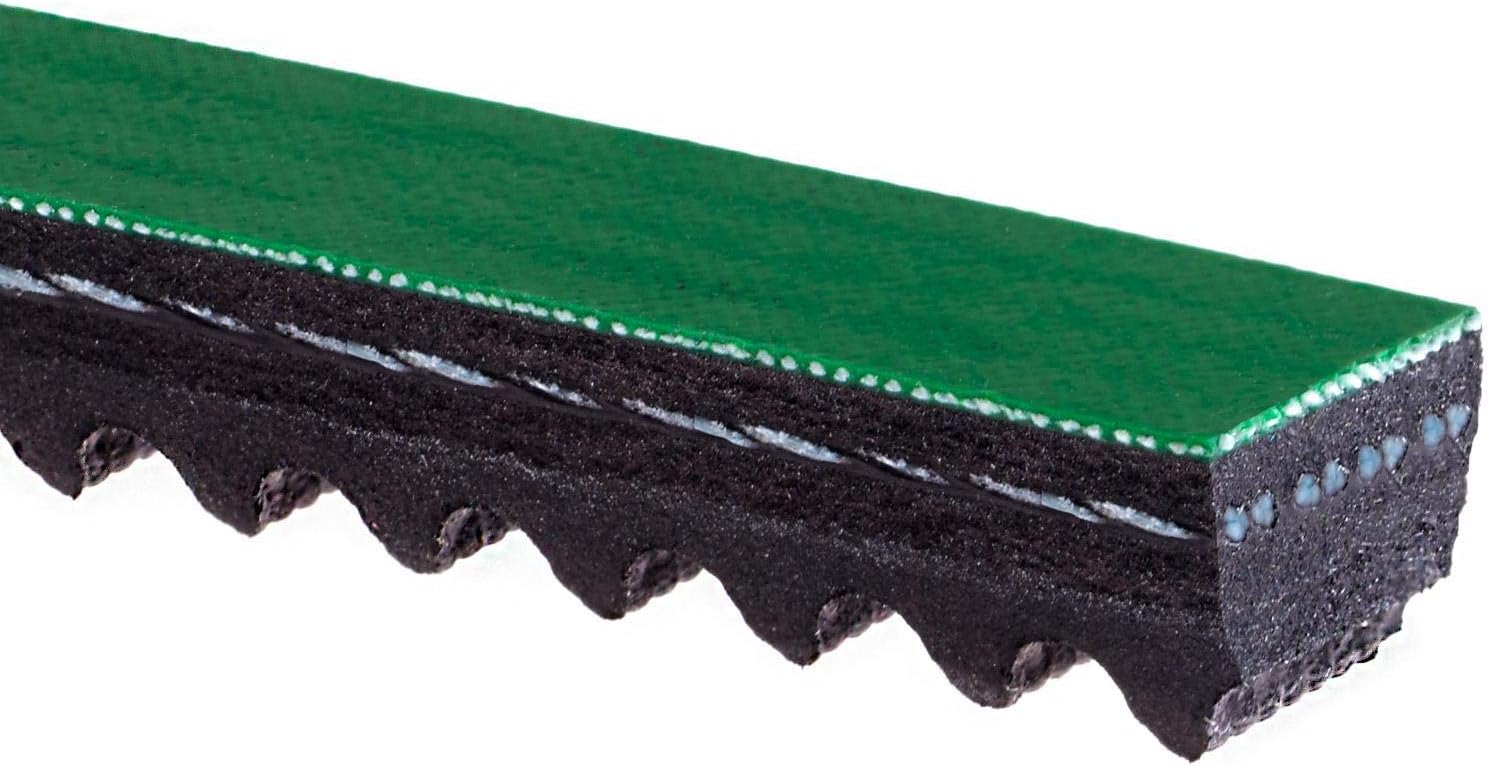

Figure 3.2: Detailed cross-section of the V-belt, highlighting the multi-layered EPDM construction and internal reinforcement for durability.
Figure 3.3: The Gates 9510HD V-Belt displayed in a typical looped configuration, illustrating its flexibility and form.
4. Installation Guidelines
Proper installation is crucial for the optimal performance and longevity of your Gates FleetRunner Heavy-Duty V-Belt. It is highly recommended that installation be performed by a qualified professional or a certified mechanic. Incorrect installation can lead to premature belt failure, damage to associated components, and potential safety hazards.
Key considerations for installation typically include:
- Ensuring the correct belt tension according to vehicle manufacturer specifications.
- Inspecting all pulleys and tensioners for wear or damage and replacing them as necessary.
- Cleaning all pulley grooves to remove debris or contaminants.
- Verifying proper alignment of all components in the drive system.
Refer to your vehicle's specific service manual for detailed, step-by-step installation instructions and torque specifications.
5. Maintenance and Care
Regular maintenance and proper care will maximize the service life of your Gates FleetRunner Heavy-Duty V-Belt and the entire drive system. The advanced materials and construction of this belt are designed for durability, but routine checks are still essential.
Follow these general maintenance guidelines:
- Routine Inspection: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or contamination (oil, grease, coolant). Replace the belt if any damage is observed.
- Tension Check: Verify that the belt maintains proper tension. Both under-tensioning and over-tensioning can lead to premature wear or component damage.
- System Check: Inspect all related components, including pulleys, tensioners, and idlers, for proper function, alignment, and wear. Replace any worn components to prevent damage to the new belt.
- Cleanliness: Keep the belt and surrounding engine area free from oil, grease, and other contaminants that can degrade belt material.
- Operating Conditions: While designed for extreme conditions, prolonged exposure to excessive heat or harsh chemicals can still impact belt life.
Adhering to these maintenance practices will help ensure reliable performance and reduce unexpected downtime.
6. Troubleshooting
If you experience issues with your V-belt drive system, consider the following common troubleshooting steps. For complex issues, consult a professional mechanic.
- Squealing Noise: Often indicates improper belt tension (too loose or too tight), worn pulleys, or contamination on the belt surface. Check tension, inspect pulleys, and clean the belt if necessary.
- Chirping Noise: May suggest misalignment of pulleys. Verify all pulleys are correctly aligned.
- Belt Slippage: Can be caused by low tension, worn belt ribs, or glazed surfaces. Adjust tension or replace the belt.
- Premature Wear/Cracking: Could be due to excessive heat, improper tension, or exposure to harmful fluids. Inspect the cooling system, check tension, and identify sources of contamination.
- Vibration: May indicate a damaged belt, worn tensioner, or misaligned components. Inspect all parts of the drive system.
7. Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Gates |
| Brand | Gates |
| Model | Auto V-Belt, Industry Number 9510HD |
| Item Weight | 4.8 ounces |
| Item Model Number | 9510HD |
| Manufacturer Part Number | 9510HD |
| OEM Part Numbers | 3780603M91, 3780604M91, 71148120, D73446, VA205892 |
| Material | Patented EPDM construction |
| Application | Heavy-Duty Drives |
8. Warranty and Support
The Gates FleetRunner 9510HD Heavy-Duty V-Belt is covered by a comprehensive warranty, reflecting Gates' commitment to quality and durability. For detailed warranty information, including terms, conditions, and claim procedures, please visit the official Gates website at gates.com.
For additional support, technical assistance, or inquiries regarding product application, please refer to the resources available on the Gates website or contact Gates customer service directly.
