Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Four Seasons 98374 New AC Compressor. Adhering to these instructions will ensure optimal performance and longevity of the product. This AC compressor is designed for automotive air conditioning systems, specifically the Nippondenso 10PA17C type.

2. Safety Information

Always prioritize safety when working with automotive components. Improper installation or handling can lead to injury or damage to the vehicle.

• Ensure the vehicle's battery is disconnected before beginning any installation work.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• AC systems contain pressurized refrigerant. Only qualified personnel should handle refrigerant and perform system evacuation/recharging.
• Refer to your vehicle's service manual for specific procedures and torque specifications.
• Keep children and pets away from the work area.

3. Product Overview

The Four Seasons 98374 New AC Compressor is a critical component of your vehicle's air conditioning system, responsible for compressing refrigerant. It comes with a clutch for engaging and disengaging the compressor.

Figure 3.1: Front view of the Four Seasons 98374 AC Compressor, showing the main body and the integrated clutch assembly.

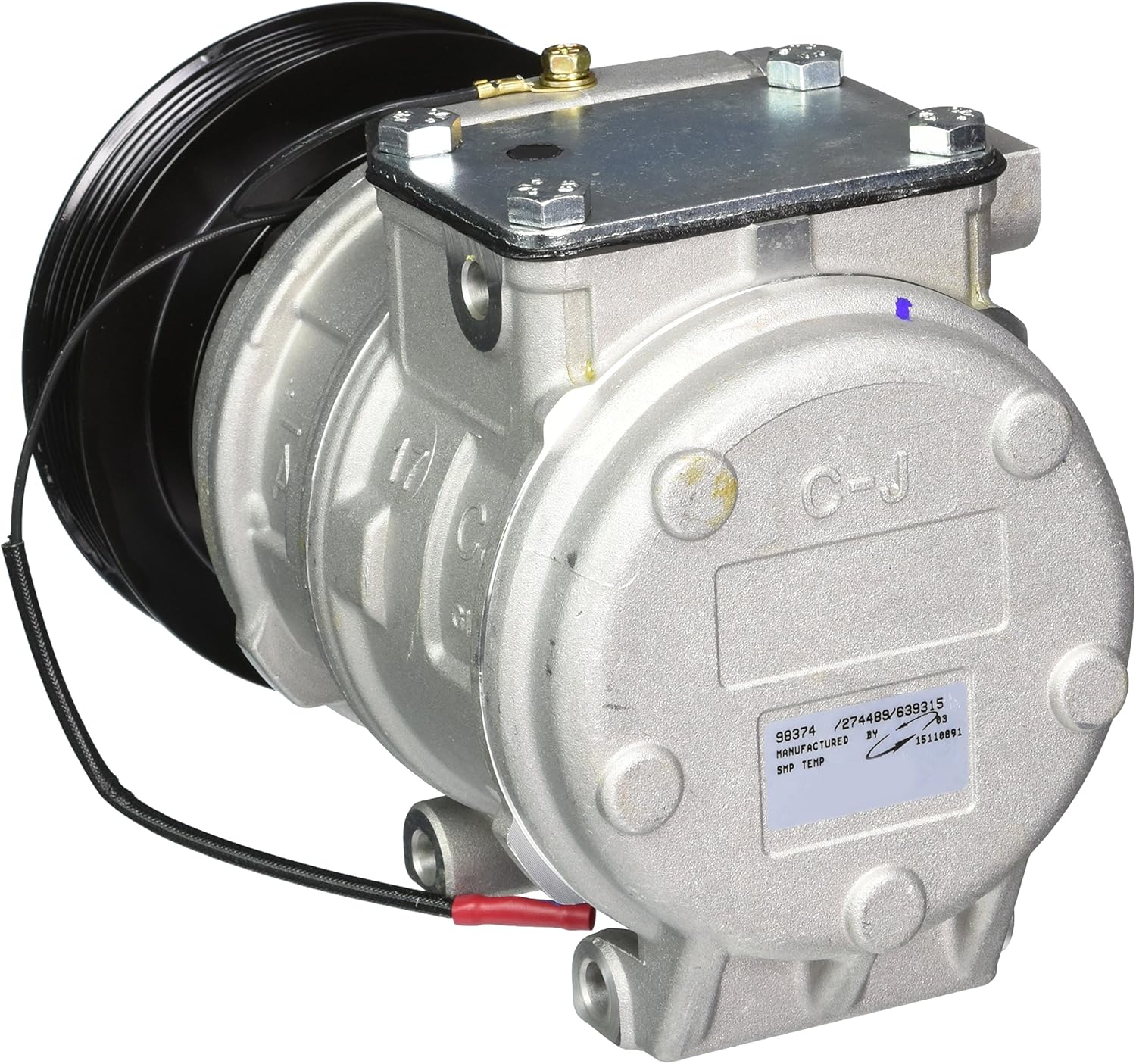

Figure 3.2: Side view of the Four Seasons 98374 AC Compressor, highlighting the product label with part number and manufacturing details.

Key Features:

• New Nippondenso 10PA17C Compressor with Clutch.
• Direct replacement for specified applications.
• Engineered for reliable performance.

4. Setup and Installation

Installation of an AC compressor requires specialized tools and knowledge. It is highly recommended that installation be performed by a certified automotive technician.

1. System Evacuation: Before removing the old compressor, the AC system must be completely evacuated of refrigerant using proper recovery equipment.
2. Old Compressor Removal: Disconnect electrical connections and refrigerant lines from the old compressor. Remove mounting bolts and carefully extract the old unit.
3. System Flushing: It is crucial to flush the entire AC system (condenser, evaporator, lines) to remove any contaminants, debris, or old oil. Failure to do so can lead to premature failure of the new compressor. Replace the accumulator/receiver drier and expansion valve/orifice tube as part of this process.
4. New Compressor Preparation: Add the correct type and amount of PAG oil (specified by your vehicle manufacturer or the compressor manufacturer) to the new compressor. Rotate the clutch by hand several times to distribute the oil.
5. New Compressor Installation: Install the new compressor, ensuring all mounting bolts are torqued to vehicle manufacturer specifications. Reconnect refrigerant lines with new O-rings and electrical connections.
6. Vacuum and Leak Test: Evacuate the system to a deep vacuum (at least 29.92 inHg or 759 mmHg) for a minimum of 30-45 minutes to remove air and moisture. Hold the vacuum for at least 15 minutes to check for leaks.
7. Refrigerant Charging: Charge the system with the correct type and amount of refrigerant (e.g., R-134a) as specified by your vehicle manufacturer. Do not overcharge or undercharge the system.
8. Performance Check: Start the vehicle and test the AC system for proper operation, checking vent temperatures and system pressures.

5. Operating Instructions

Once installed and the AC system is properly charged, the Four Seasons 98374 AC Compressor operates automatically as part of your vehicle's climate control system. When the air conditioning is turned on, the compressor clutch engages, allowing the compressor to circulate refrigerant and cool the cabin.

• Ensure your vehicle's engine is running when operating the AC system.
• If the AC system is not cooling effectively, or if unusual noises are heard, consult a qualified technician immediately.

6. Maintenance

Regular maintenance helps prolong the life of your AC compressor and the entire AC system.

• Regular System Checks: Have your AC system inspected annually by a qualified technician to check refrigerant levels, pressure, and overall performance.
• Belt Inspection: Periodically check the serpentine belt that drives the compressor for wear, cracks, or proper tension. Replace if necessary.
• Condenser Cleaning: Keep the condenser (located in front of the radiator) free of debris, leaves, and dirt to ensure proper heat dissipation.
• Cabin Air Filter: Replace your vehicle's cabin air filter regularly to maintain good airflow and prevent strain on the system.

7. Troubleshooting

This section outlines common issues you might encounter and potential solutions. For complex problems, professional diagnosis is recommended.

8. Specifications

Technical specifications for the Four Seasons 98374 New AC Compressor.

9. Warranty and Support

For information regarding warranty coverage, claims, or technical support for your Four Seasons 98374 New AC Compressor, please refer to the documentation provided with your purchase or contact Four Seasons customer service directly. Keep your proof of purchase for warranty purposes.

For additional assistance or professional service, consult a certified automotive technician or an authorized Four Seasons service center.
