Vaillant 295837 Sacrificial Anode: Installation and Maintenance Guide

1. Product Overview

The Vaillant 295837 sacrificial anode is a critical component designed to protect the inner lining of your Vaillant water heater tank from corrosion. Water heaters are susceptible to corrosion due to electrochemical reactions between the water and the metal tank. This anode, typically made of magnesium or aluminum, is more electrochemically active than the steel tank. It "sacrifices" itself by corroding instead of the tank, thereby extending the lifespan of the water heater.

• Part Number: 295837
• Length: 500 mm
• Compatibility: Designed for various Vaillant water heater models, including VEH 200/2 - 400/2, VIH 300/5 - 500/5, VIH H 150/2, VIH H 150/3 - 200/3, VIH H 150/3.1 - 200/3.1, VIH H 150/4, VIH H 200/4, and VIH RW 400 B.

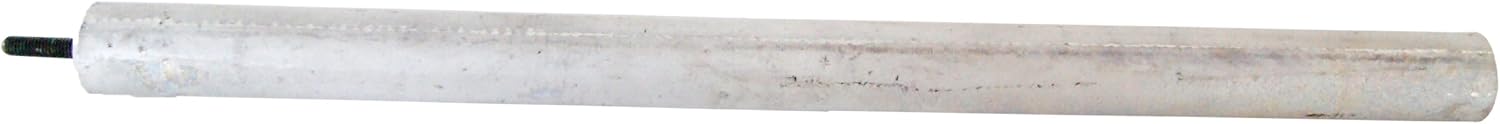

Image 1.1: The Vaillant 295837 sacrificial anode. This image displays a cylindrical metal rod, approximately 500mm in length, with a threaded end for installation into a water heater. Its purpose is to prevent corrosion of the water heater tank.

2. Safety Information

Before attempting any work on your water heater, it is crucial to observe the following safety precautions:

• Professional Installation Recommended: Installation and replacement of water heater components should ideally be performed by a qualified and certified technician.
• Power Disconnection: Always disconnect the electrical power supply to the water heater at the circuit breaker before beginning any work.
• Water Shut-off: Turn off the main water supply to the water heater and drain the tank partially or completely as required for the procedure.
• Hot Water Hazard: Water inside the tank can be extremely hot. Allow the water to cool or take appropriate precautions to avoid burns.
• Pressure Release: Relieve any pressure in the tank before opening any connections.
• Tools: Use appropriate tools for the job.
• Manufacturer Guidelines: Always refer to the specific installation and service manual for your particular Vaillant water heater model for detailed instructions and safety warnings.

3. Setup and Installation

Replacing a sacrificial anode requires specific tools and knowledge of plumbing and electrical systems. If you are not comfortable performing this task, contact a qualified technician.

General Installation Steps (Consult your water heater's specific manual):

1. Preparation:
   • Turn off the power supply to the water heater.
   • Shut off the cold water inlet valve to the water heater.
   • Open a hot water faucet in your home to relieve pressure and allow air into the system.
   • Connect a hose to the drain valve at the bottom of the water heater and drain several gallons of water from the tank to lower the water level below the anode rod opening.
2. Locate the Anode Rod: The anode rod is typically located on the top of the water heater, often under a plastic cap, or sometimes integrated with the hot water outlet.
3. Remove the Old Anode:
   • Use a socket wrench of the appropriate size (often 1 1/16 inch or 1 1/2 inch) to loosen and remove the old anode rod. It may require significant force.
   • Carefully pull the old anode rod out. It may be corroded and brittle.
4. Install the New Anode:
   • Wrap the threads of the new Vaillant 295837 anode rod with PTFE (Teflon) tape to ensure a watertight seal.
   • Carefully insert the new anode rod into the opening.
   • Tighten the anode rod securely with the socket wrench. Do not overtighten.
5. Restore Operation:
   • Close the drain valve and remove the hose.
   • Open the cold water inlet valve to the water heater.
   • Allow the tank to refill completely. Once water flows steadily from the open hot water faucet, close the faucet.
   • Check for any leaks around the new anode rod.
   • Turn the power supply back on to the water heater.

4. Operating Principle

The Vaillant 295837 sacrificial anode operates on the principle of galvanic corrosion. It is made from a metal (magnesium or aluminum) that is less noble than the steel of the water heater tank. When both metals are immersed in an electrolyte (water) and electrically connected, the less noble metal (the anode) will corrode preferentially, protecting the more noble metal (the tank). This process is continuous as long as the anode material is present. As the anode corrodes, it slowly depletes, requiring periodic inspection and replacement.

5. Maintenance

Regular inspection and replacement of the sacrificial anode are crucial for maintaining the longevity of your water heater. The lifespan of an anode can vary significantly depending on water quality (hardness, mineral content), water usage, and tank temperature.

Inspection and Replacement Frequency:

• It is generally recommended to inspect the anode rod every 3 to 5 years. In areas with very hard water or high mineral content, more frequent inspections (e.g., every 1-2 years) may be necessary.
• Replace the anode rod if it is corroded to less than half its original diameter or if more than 6 inches of the core wire is exposed.
• A heavily corroded anode indicates it has been effectively protecting your tank and needs replacement to continue its function.

Failure to replace a depleted anode rod will leave the water heater tank vulnerable to corrosion, potentially leading to leaks and premature failure of the unit.

6. Troubleshooting

While the anode itself is a passive component, issues related to its condition can manifest in your water heater's performance or water quality.

Common Indicators of Anode-Related Issues:

• Sulfur Odor (Rotten Egg Smell): This can occur if the anode rod (especially magnesium anodes) reacts with sulfates in the water, producing hydrogen sulfide gas. While not harmful, it indicates the anode is actively working and may suggest a need for inspection or a different type of anode (e.g., aluminum/zinc).
• Reduced Hot Water Lifespan: While not directly caused by the anode, a failing tank due to corrosion (from a depleted anode) can lead to inefficient heating and reduced hot water capacity.
• Water Heater Leaks: A leak from the tank itself is a strong indicator that the anode has failed to protect the tank, and the tank has corroded through. At this point, the water heater typically needs replacement.

If you experience any of these issues, it is advisable to have your water heater inspected by a qualified technician.

7. Specifications

8. Warranty and Support

Information regarding the specific warranty for the Vaillant 295837 sacrificial anode is not provided within this document. For warranty details, technical support, or to locate authorized service providers, please refer to the official Vaillant website or contact Vaillant customer service directly. Always provide your product model number (295837) and your water heater's model number when seeking support.

Vaillant Official Website: www.vaillant.com (Please check for your regional Vaillant website for specific contact information).
