1. Introduction
This manual provides essential information for the safe and effective operation, installation, and maintenance of your Superwinch LT2000 12V Utility Winch. Please read this manual thoroughly before using the winch to ensure proper function and to prevent injury or damage.
The Superwinch LT2000 is a compact and dependable utility winch designed for various applications, including vehicle utility needs, workshops, trailers, and household tasks. It features a 2,000 lb (907 kg) pull rating, a dynamic brake, and a high-efficiency low amp draw motor with circuit breaker protection.
Key features include:
- Powerful 1.0 hp (0.8kW) motor with 2,000 lb pull rating.
- 49 feet of 5/32-inch (3.9mm x 15m) wire rope with stainless thimble.
- Quiet, efficient differential planetary gear box.
- Pull and turn free-spooling clutch for fast wire payout.
- 8-foot handheld rubber remote switch for safe operation.
- Dynamic brake system.
- Circuit breaker protection.

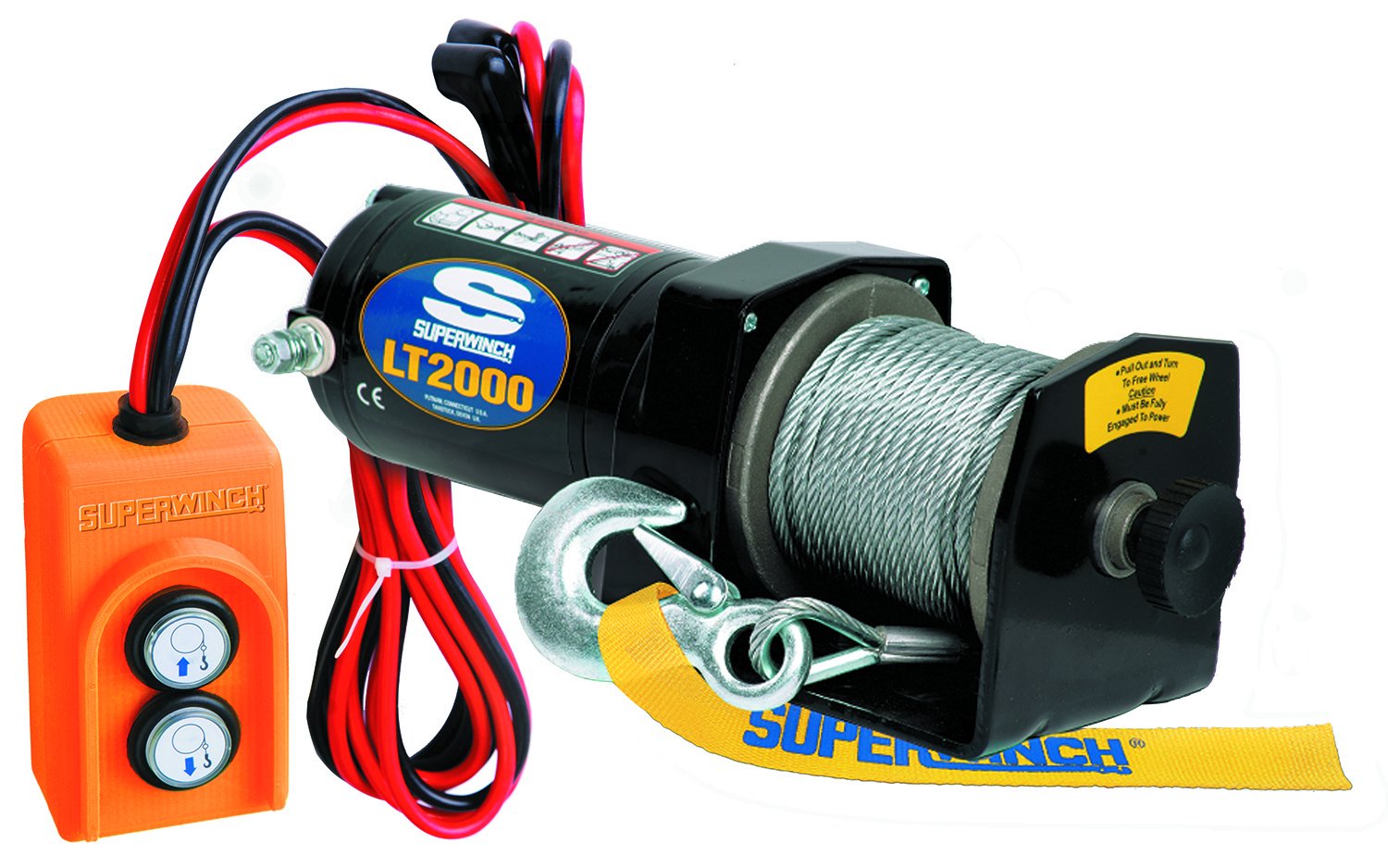

Image 1.1: Superwinch LT2000 12V Utility Winch. This image displays the compact design of the winch, including the wire rope and the handheld remote control.
2. Safety Information
Your safety and the safety of others are paramount. Always observe the following safety precautions when operating or maintaining the Superwinch LT2000. Failure to follow these instructions can result in serious injury or property damage.
- Read the Entire Manual: Understand all instructions and warnings before use.
- Wear Protective Gear: Always wear heavy-duty gloves and eye protection when handling wire rope or operating the winch.
- Inspect Before Use: Before each use, inspect the winch, wire rope, hook, and all mounting hardware for damage, wear, or corrosion. Do not use if any components are damaged.
- Maintain Safe Distance: Keep hands, hair, clothing, and jewelry clear of the wire rope, hook, and fairlead during operation. Maintain a safe distance from the winch and the load.
- Never Overload: Do not exceed the rated pull capacity of 2,000 lbs (907 kg). Overloading can cause winch failure and serious injury.
- Secure the Load: Ensure the load is properly secured and stable before beginning to winch.
- Use a Snatch Block: For loads exceeding the winch's capacity or for changing the direction of pull, use a snatch block to double the pulling power and reduce strain on the winch.
- Avoid Shock Loads: Do not use the winch for sudden jerking or shock loads. Apply power smoothly.
- Keep Clear of Wire Rope Under Tension: Never step over or stand near a wire rope under tension. If the rope breaks, it can recoil with extreme force.
- Disconnect Power: Always disconnect the winch from its power source when not in use or during maintenance.
- Proper Mounting: Ensure the winch is securely mounted to a structure capable of withstanding the maximum rated pull.
- Avoid Submersion: While the winch is designed for outdoor use, avoid submerging it in water unless specifically rated for such conditions.
3. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your Superwinch LT2000. If you are unsure about any step, consult a qualified professional.
3.1 Mounting the Winch
The winch must be mounted on a flat, rigid surface capable of supporting the full rated load. Use high-grade bolts and nuts to secure the winch. Ensure there is adequate clearance around the winch for operation and maintenance.
- Position the winch to allow for a straight line pull to the load whenever possible.
- Drill mounting holes as per the winch's base plate pattern.
- Secure the winch using appropriate hardware, ensuring all bolts are tightened to the manufacturer's specifications.
3.2 Electrical Connection
The Superwinch LT2000 operates on a 12V DC power supply. Ensure your power source can provide sufficient current for the winch's 1.0 hp motor.
- Connect the positive (+) cable from the winch to the positive terminal of your 12V battery.
- Connect the negative (-) cable from the winch to the negative terminal of your 12V battery or a suitable chassis ground.
- Ensure all electrical connections are clean, tight, and protected from corrosion.
- The winch includes circuit breaker protection. Do not bypass or modify this safety feature.
- Route all cables away from moving parts, sharp edges, and heat sources.
Note: For vehicle installations, it is recommended to connect the winch directly to the vehicle's battery with appropriate gauge wiring and fusing, or consult a professional auto electrician.
4. Operating Instructions
Familiarize yourself with the winch controls and functions before attempting to operate it under load.
4.1 Free-Spooling Clutch
The LT2000 features a pull and turn free-spooling clutch, allowing for rapid manual payout of the wire rope.
- To engage free-spool: Pull the clutch knob outwards and rotate it to the "Free Spool" position. You can now manually pull the wire rope out.
- To engage the winch: Rotate the clutch knob back to the "Engaged" position and push it inwards. Ensure the clutch is fully engaged before applying power.
4.2 Handheld Remote Control
The 8-foot handheld rubber remote switch provides safe operation from a distance.
- Connect the remote control cable to the winch's control box receptacle.
- Press the "IN" button to reel in the wire rope.
- Press the "OUT" button to pay out the wire rope (if the clutch is engaged).
- Always ensure the area is clear before operating the winch.
- Disconnect the remote when not in use to prevent accidental operation.
4.3 Basic Winching Procedure
- Assess the Situation: Determine the load weight, anchor point, and required pull direction.
- Prepare the Winch: Ensure the winch is securely mounted and electrically connected.
- Select Anchor Point: Choose a strong, stable anchor point (e.g., tree, another vehicle, ground anchor) capable of withstanding the pulling force. Use a tree saver strap or clevis shackle as appropriate.
- Deploy Wire Rope: Disengage the clutch (free-spool) and pull out enough wire rope to reach the anchor point.
- Attach Hook: Securely attach the hook to the anchor point. Ensure the safety latch is closed.
- Engage Clutch: Re-engage the clutch fully.
- Apply Tension: Use the remote control to slowly reel in the wire rope until tension is applied to the load.
- Begin Winching: Operate the winch in short bursts, allowing the motor to cool between pulls. Monitor the wire rope, anchor point, and load throughout the operation.
- Spooling: Ensure the wire rope spools evenly onto the drum. If it begins to pile up on one side, stop winching and redistribute the rope.
- Completion: Once the winching operation is complete, release tension, disconnect the hook, and carefully rewind the wire rope onto the drum.
Important: Always leave at least five wraps of wire rope on the drum to prevent the rope from detaching from the drum anchor.
5. Maintenance
Regular maintenance will extend the life and ensure the safe operation of your Superwinch LT2000.
- Wire Rope Inspection: Regularly inspect the entire length of the wire rope for kinks, frayed strands, broken wires, or corrosion. Replace damaged wire rope immediately.
- Electrical Connections: Check all electrical connections for tightness and corrosion. Clean terminals as needed.
- Mounting Hardware: Periodically check all mounting bolts and nuts to ensure they are secure.
- Cleanliness: Keep the winch clean and free of dirt, mud, and debris. Use a mild detergent and water, then dry thoroughly.
- Lubrication: The gearbox is factory-lubricated and generally does not require user maintenance. Refer to a qualified service center for internal lubrication if necessary.
- Storage: When not in use, store the winch in a dry, protected environment.
6. Troubleshooting
If your Superwinch LT2000 is not operating as expected, consult the following troubleshooting guide before seeking professional service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Winch does not operate (no power). |
|
|
| Winch operates slowly or with reduced power. |
|
|
| Wire rope does not spool evenly. |
|
|
If the problem persists after attempting these solutions, contact Superwinch customer support or a qualified service technician.
7. Specifications
The following specifications apply to the Superwinch LT2000 12V Utility Winch (Model 1220210):
- Part Number: 1220210
- Rated Line Pull: 2,000 lbs (907 kg)
- Motor: 1.0 hp (0.8 kW) 12V DC, permanent magnet
- Gear Ratio: Differential Planetary
- Gear Train: Efficient, low amp draw
- Braking: Dynamic
- Clutch: Pull and Turn Free-Spooling
- Wire Rope: 5/32 inch x 49 feet (3.9 mm x 15 m) with stainless thimble
- Remote Control: 8-foot (2.4 m) handheld rubber remote switch
- Fairlead: Hawse (implied by utility winch design, though not explicitly stated in bullets, common for this type)
- Dimensions (L x W x H): Approximately 11.22 x 4.13 x 4.13 inches (28.5 x 10.5 x 10.5 cm)
- Item Weight: Approximately 11.88 pounds (5.39 kg)
- Circuit Protection: Integrated circuit breaker
8. Warranty and Support
The Superwinch LT2000 12V Utility Winch comes with a one-year warranty covering defects in materials and workmanship, as well as electrical components.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Superwinch customer support. Keep your purchase receipt as proof of purchase for warranty validation.
Superwinch Customer Support:
- Refer to the official Superwinch website for the most current contact information.
- When contacting support, please have your model number (LT2000 / 1220210) and purchase date available.
