Hitachi 728892 SDS Plus 3-Cutter Drill Bit User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the Hitachi 728892 SDS Plus 3/8-Inch x 4-Inch x 6-Inch 3-Cutter Drill Bit. Please read this manual thoroughly before operation to ensure proper handling, optimal performance, and longevity of your drill bit.

The Hitachi 728892 SDS-Plus 3/8-inch by 4-inch by 6-inch 3-Cutter Drill Bit features an aggressive and durable carbide tip, chisel-shaped for rapid penetration, easy centering, and fast drilling. Its reinforced flute geometry reduces vibration and transfers more impact energy, while the multi-fluted spiral flute efficiently channels debris from the hole. This drill bit is specifically designed for drilling into concrete, masonry, and natural stone.

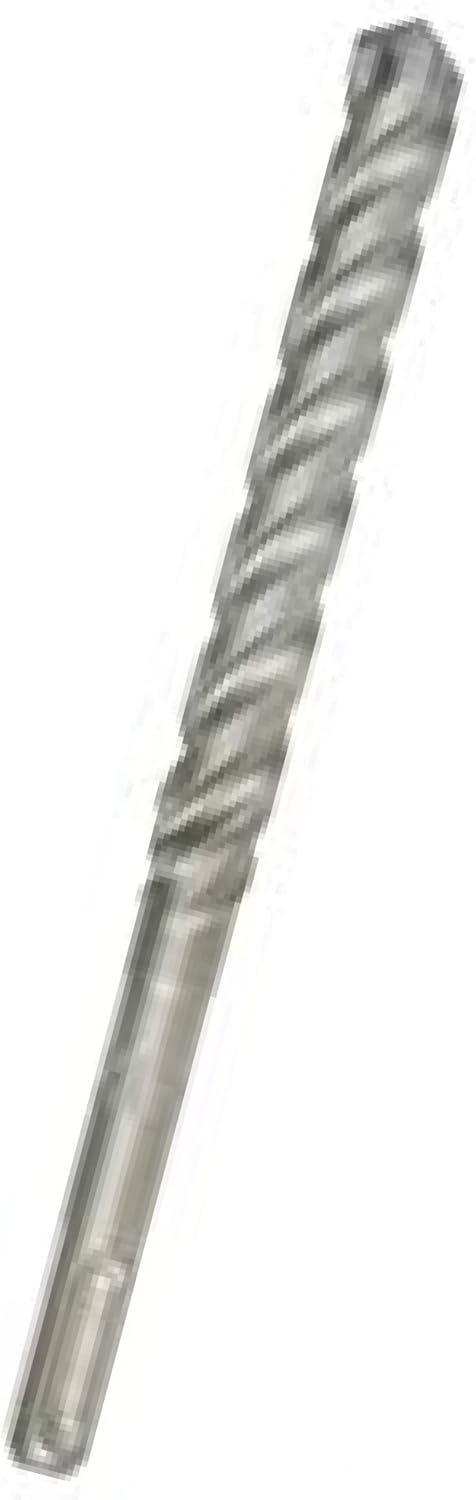

Figure 1: Hitachi 728892 SDS Plus 3-Cutter Drill Bit. This image shows the full length of the drill bit, highlighting its spiral flutes and the SDS Plus shank.

2. Key Features

• Size: 3/8-inch diameter, 4-inch drilling depth, 6-inch overall length.
• Tip Design: Aggressive and durable carbide tip, chisel-shaped for rapid penetration and easy centering.
• Flute Geometry: Reinforced flute design to reduce vibration and enhance impact energy transfer.
• Debris Removal: Multi-fluted spiral flute for quick and efficient debris channeling.
• Material Compatibility: Ideal for concrete, masonry, and natural stone drilling.
• Shank Type: SDS Plus shank for secure and efficient connection to compatible rotary hammer drills.
• Material: High Quality Carbon Hardened Steel.
• Precision: High Tolerance milled shank provides perfect fit.
• Quality Control: CNC Controlled manufacturing ensures 100% quality consistency.

3. Setup and Installation

Proper installation of the drill bit is crucial for safety and performance. This drill bit is designed for use with SDS Plus rotary hammer drills only.

1. Safety First: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves, before handling power tools or drill bits.
2. Inspect Drill Bit: Before each use, inspect the drill bit for any signs of damage, excessive wear, or cracks. Do not use a damaged drill bit.
3. Prepare Drill: Ensure your rotary hammer drill is unplugged or its battery is removed before attempting to install or remove any accessories.
4. Clean Shank: Wipe the SDS Plus shank of the drill bit clean to remove any dust or debris. A small amount of SDS grease can be applied to the shank for smoother insertion and to reduce wear, but avoid applying it to the cutting tip.
5. Insert Bit: Pull back the chuck collar on your SDS Plus rotary hammer drill. Insert the SDS Plus shank of the drill bit firmly into the chuck until it clicks into place.
6. Verify Seating: Release the chuck collar. Gently pull on the drill bit to ensure it is securely locked in the chuck. SDS Plus bits are designed to have a slight amount of play (movement in and out) when properly seated; this is normal and allows for the hammering action.

4. Operating Instructions

Follow these guidelines for effective and safe drilling with your Hitachi SDS Plus drill bit.

4.1 General Drilling Tips

• Material Suitability: This drill bit is optimized for concrete, masonry, and natural stone. Do not use it on metal, wood, or other materials for which it is not designed.
• Drill Mode: Ensure your rotary hammer drill is set to the "hammer drilling" mode for optimal performance in masonry applications.
• Starting the Hole: Begin drilling at a slow speed to create a pilot indentation, then increase speed and apply steady, firm pressure. Avoid excessive force, as the hammer action of the drill does most of the work.
• Maintain Straightness: Keep the drill bit perpendicular to the work surface to prevent binding and ensure a straight hole.
• Clear Debris: The multi-fluted spiral design helps clear debris, but occasionally withdrawing the bit slightly from the hole can further aid in chip removal and cooling.
• Overheating: If the drill bit becomes excessively hot, stop drilling and allow it to cool. Overheating can reduce the lifespan of the bit.
• Depth Control: Use the depth stop on your rotary hammer drill, if available, to achieve consistent drilling depths. This bit has a 4-inch drilling depth capacity.

4.2 Safety Precautions

• Always wear appropriate PPE.
• Secure your workpiece to prevent movement during drilling.
• Be aware of hidden electrical wires, plumbing, or rebar within the drilling area. Use a stud finder or metal detector if necessary.
• Do not force the drill bit. Let the tool and bit do the work.
• Keep hands and loose clothing away from rotating parts.
• Disconnect power before changing bits or performing maintenance.

5. Maintenance and Storage

Proper maintenance extends the life of your drill bit and ensures consistent performance.

• Cleaning: After each use, wipe the drill bit clean of dust and debris. A stiff brush can be used to remove stubborn residue from the flutes.
• Lubrication: Periodically apply a small amount of SDS grease to the shank of the drill bit to reduce friction and wear within the drill chuck.
• Inspection: Regularly inspect the carbide tip for chipping, excessive wear, or damage. A worn or damaged tip will significantly reduce drilling efficiency. Inspect the shank for any signs of bending or damage.
• Storage: Store the drill bit in a dry place to prevent rust. Keep it in its original packaging or a dedicated drill bit case to protect the carbide tip from accidental damage.
• Replacement: Replace the drill bit when the carbide tip shows significant wear, as continued use of a dull bit can strain your drill and produce poor results.

6. Troubleshooting

If you encounter issues while using your drill bit, consider the following common solutions:

7. Product Specifications

8. Warranty Information

The Hitachi 728892 SDS-Plus 3/8-inch by 4-inch by 6-inch 3-Cutter Drill Bit is warranted to the original purchaser to be free from defect in materials and workmanship for a period of 30-days from the original purchase date. This warranty applies to all Hitachi Accessories.

For warranty claims or further details, please refer to the official Hitachi (now Metabo HPT) warranty policy or contact customer support.

9. Customer Support

For additional assistance, technical support, or inquiries regarding your Hitachi (now Metabo HPT) product, please visit the official Metabo HPT website or contact their customer service department.

Note: Hitachi Power Tools has renamed to Metabo HPT. Same great tools, with only a new name.

You can find more information and contact details by visiting the official Hitachi/Metabo HPT Store on Amazon or their corporate website.
