1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Rampage Products 960134 60-inch LED Tailgate Light Bar. This universal fit light bar enhances vehicle visibility with its 5-function Superbrite LED system, including brake, left/right turn signals, flasher, and running lights. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Safety Information
Observe the following safety guidelines to prevent damage to the product or vehicle, and to ensure safe operation:
- Always read and follow all instructions in this manual carefully.
- Do not cut off the 4-pin plug for hardwiring the light bar. Doing so will short the product and void the warranty.
- Ensure the vehicle's trailer wiring plug is clean before connecting the light bar to prevent internal shorts.
- Verify all electrical connections are secure and properly insulated to avoid electrical hazards.
- Consult a qualified technician if you are unsure about any installation steps or electrical connections.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Rampage Products 60-inch LED Tailgate Light Bar (Model 960134)
- Integrated electrical connection wire with 4-pin molded plug
- Mounting system (pre-attached to light bar)
4. Setup & Installation
The Rampage 60-inch LED Tailgate Light Bar is designed for straightforward installation on most full-size pickup trucks.
4.1. Preparation
- Ensure the vehicle's ignition is off and the parking brake is engaged.
- Clean the area where the light bar will be mounted, typically under the tailgate, to ensure proper adhesion of the mounting system.
- Inspect the vehicle's 4-pin trailer wiring connection for any dirt or corrosion. Clean as necessary to ensure a reliable electrical connection.
4.2. Mounting the Light Bar
The light bar features a flat back mounting system designed to attach securely under the tailgate without interfering with tailgate or hatch operation. The unique material and manufacturing process ensures the enclosure is waterproof under normal conditions, preventing moisture collection.
- Position the light bar under the tailgate to determine the optimal mounting location.
- Remove the protective backing from the adhesive on the light bar's mounting system.
- Carefully press the light bar firmly into place, ensuring full contact with the mounting surface.
4.3. Electrical Connection
The light bar connects directly to your vehicle's electrical system via a 4-pin trailer wiring connection.
- Locate the factory 4-pin trailer wiring connection at the rear of your vehicle.
- Plug the light bar's molded 4-pin connector directly into the vehicle's matching receptacle.
- If your vehicle does not have a 4-pin trailer plug, one can be added easily to most vehicles, or the light bar can be wired directly into your vehicle's taillights by a professional.

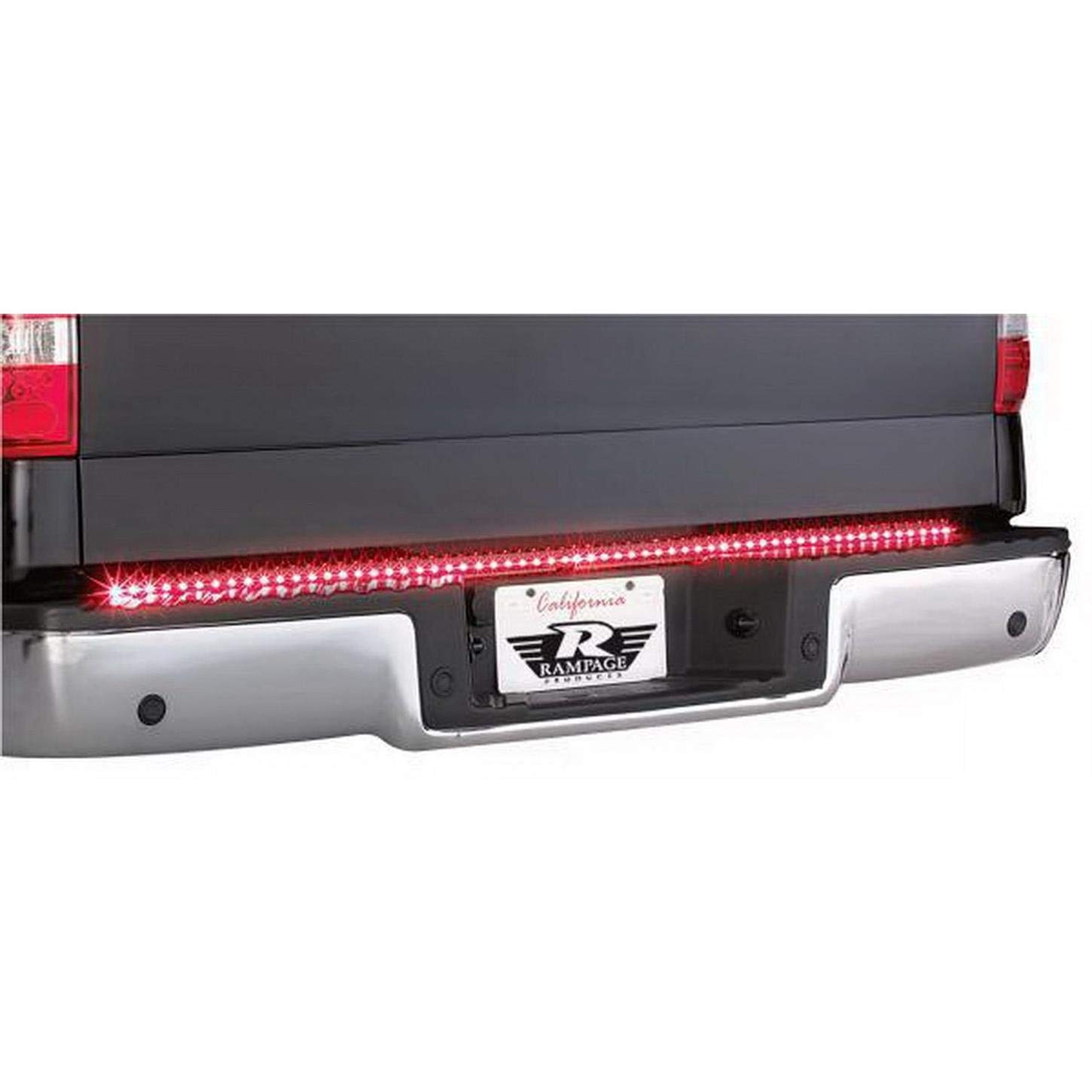

Image: Rampage Products 60-inch LED Tailgate Light Bar installed on a truck tailgate, showcasing its sleek, low-profile design when off.
5. Operating Instructions
The Rampage LED Tailgate Light Bar operates in conjunction with your vehicle's existing lighting system, providing enhanced visibility and safety.
- Running Lights: When your vehicle's parking or driving lights are activated, the entire length of the light bar illuminates with high-intensity LEDs.
- Brake Lights: Applying the vehicle's brakes will cause the intensity of the red LEDs across the entire bar to increase dramatically, signaling braking action.
- Turn Signals: Activating the left or right turn signal will cause the appropriate half of the light bar to flash, indicating your intended turn direction.
- Hazard Lights: When the vehicle's hazard lights are engaged, the entire light bar will flash in unison.
6. Maintenance
The Rampage LED Tailgate Light Bar is designed for durability and minimal maintenance. Its sealed, waterproof enclosure protects the circuit board mounted, ultra-high intensity LEDs from moisture.
- Regularly inspect the light bar and its wiring for any signs of damage or loose connections.
- Keep the light bar surface clean from dirt and debris using a soft cloth and mild automotive cleaner.
- Periodically check the vehicle's 4-pin trailer wiring plug for cleanliness and ensure it remains free of corrosion to maintain optimal electrical contact.
7. Troubleshooting
If you experience issues with your LED Tailgate Light Bar, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light bar not illuminating | Loose or corroded electrical connection; Blown fuse in vehicle's circuit. | Check the 4-pin plug connection and clean if necessary. Inspect vehicle's fuse box for a blown fuse related to trailer lights. |
| Incorrect light function (e.g., brake light acts as turn signal) | Incorrect wiring or faulty vehicle trailer wiring. | Ensure the 4-pin plug is fully seated. Consult a professional to check vehicle's trailer wiring for proper pin assignments. |
| Some LEDs not working | Internal component failure. | Contact Rampage Products customer support for assistance. Do not attempt to repair internal components. |
| Moisture inside the light bar | Damage to the sealed enclosure. | While designed to be waterproof, extreme conditions or physical damage can compromise the seal. Contact customer support if moisture is observed. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 960134 |
| Brand | RAMPAGE PRODUCTS |
| Dimensions (L x W x H) | 60.5 x 1.5 x 1.5 inches |
| Item Weight | 4 ounces |
| Color | Black |
| Light Source Type | LED |
| Functions | Brake, Left/Right Turn Signals, Flasher, Running Lights (5-function) |
| Fit Type | Universal Fit (most full-size pickup trucks) |
| Special Feature | Waterproof |
| Electrical Connection | 4-pin trailer wiring plug |
9. Warranty & Support
9.1. Warranty Information
The manufacturer warrants this product against defects in materials and workmanship under normal use. Please note that cutting off the 4-pin plug to hardwire the bar will short the product and void the warranty. EU spare part availability duration is 3 years.
For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Rampage Products directly.
9.2. Technical Support
Live technical assistance is available over the phone at no charge if you require further installation assistance or have questions regarding the product's operation. Please visit the official Rampage Products website for contact information.
