1. Introduction
The Mail Chime MAIL-1200 is a wireless mailbox notification system designed to alert you instantly when your mailbox door is opened. This system consists of a transmitter, installed inside your mailbox, and a receiver, placed inside your home. It provides both audible beeps and a visual LED indicator to ensure you never miss a mail delivery.

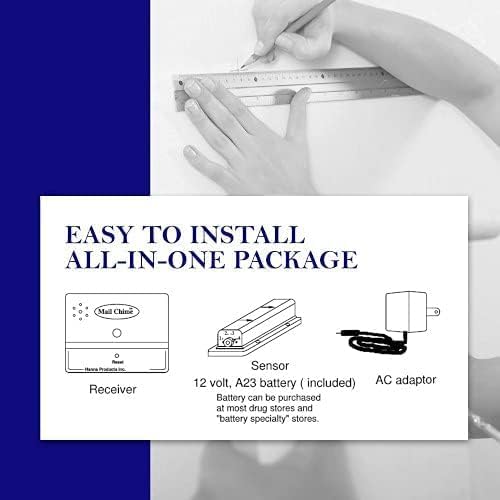

2. Product Components
The Mail Chime MAIL-1200 system includes the following components:
- Receiver Unit: The indoor unit that emits audible alerts and displays a visual LED indicator.
- Transmitter Unit: The outdoor unit installed in the mailbox that detects door movement.
- AC Adapter: For powering the receiver unit.
- A23 12-Volt Battery: For powering the transmitter unit (included).
- Mounting Tapes: For securing the transmitter inside the mailbox.
3. Setup and Installation
3.1 Transmitter Installation
- Insert Battery: Carefully open the transmitter unit to insert the included A23 12-volt battery. Ensure correct polarity. Securely close the unit.
- Prepare Surface: Clean the inside surface of your mailbox door where the transmitter will be mounted. Ensure it is dry and free of dust or debris.
- Attach Mounting Tapes: Apply the provided mounting tapes to the back of the transmitter unit.
- Mount Transmitter: Adhere the transmitter to the inside of your mailbox door. Position it so that when the door opens, the transmitter's internal mechanism is triggered. The arrows on the transmitter should point upwards.
3.2 Receiver Setup
- Power On: Plug the AC adapter into the receiver unit and then into a standard electrical outlet inside your home.
- Placement: Place the receiver unit in a central location within your home, ideally within 350 feet of your mailbox. Avoid placing it near large metal objects or thick walls that may obstruct the wireless signal.

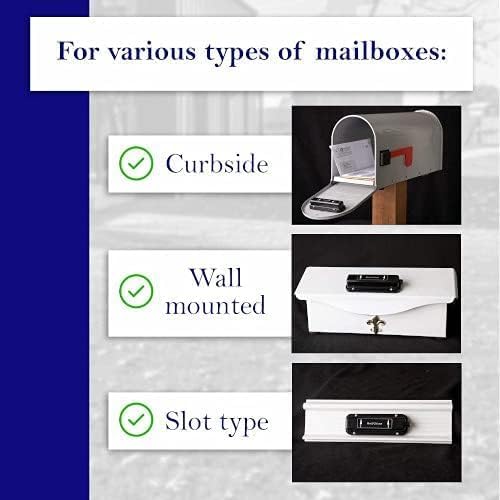

3.3 Mailbox Compatibility
The Mail Chime MAIL-1200 is compatible with various mailbox types, including:
- Curbside mailboxes
- Wall-mounted mailboxes
- Slot-type mailboxes
Important Note:
This system is NOT RECOMMENDED for use on extra large metal curbside, aluminum, or locking mailboxes. It is also not suitable for cluster-type mailboxes with vertical hinges, as these may interfere with the transmitter's operation or signal transmission.
4. Operating Instructions
Once installed, the Mail Chime MAIL-1200 operates automatically:
- Mail Delivery Alert: When your mailbox door is opened, the transmitter sends a signal to the receiver. The receiver will then beep approximately 4 times to alert you of mail arrival.
- Visual Indicator: A highly visible red LED light on the receiver will illuminate and remain lit after an alert, indicating that mail has been delivered.
- Resetting the Alert: To reset the LED indicator and prepare for the next alert, press the 'Reset' button located on the receiver unit.
- Volume Control: The receiver unit features a volume control to adjust the loudness of the audible alert to your preference.
5. Maintenance
- Battery Replacement: The A23 12-volt battery in the transmitter unit has an average life of 2 years. If the system stops alerting or alerts become intermittent, replace the transmitter battery. To replace, carefully open the transmitter casing, remove the old battery, insert a new A23 12-volt battery with correct polarity, and re-secure the casing.
- Cleaning: Periodically wipe down the receiver and transmitter units with a soft, dry cloth to remove dust and debris. Do not use liquid cleaners or immerse units in water.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No alert when mailbox opens | Transmitter battery is low or dead. | Replace the A23 12-volt battery in the transmitter. |
| Receiver is unplugged or not powered. | Ensure the receiver's AC adapter is securely plugged into an outlet. | |
| Transmitter not properly installed or triggered. | Verify the transmitter is securely mounted inside the mailbox door and its internal mechanism is activated when the door opens. Ensure arrows point upwards. | |
| Excessive distance or obstructions between transmitter and receiver. | Relocate the receiver closer to the mailbox or to a location with fewer obstructions. The maximum range is 350 feet. | |
| LED light remains on after mail delivery | Alert has not been manually reset. | Press the 'Reset' button on the receiver unit. |
| Intermittent alerts | Weak transmitter battery. | Replace the A23 12-volt battery in the transmitter. |
| Environmental factors (e.g., extreme temperature changes, heavy snow/ice). | Ensure the transmitter is protected from extreme weather conditions as much as possible. If issues persist, try resetting the receiver by unplugging and re-plugging it. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | MAIL-1200 |
| Brand | Mail Chime |
| Color | White |
| Material | Plastic |
| Product Dimensions (Receiver) | 4.25"L x 1.25"W x 1.25"H |
| Item Weight | 8 ounces |
| Manufacturer | Smarthome Technologies |
| Transmitter Battery Type | A23 12-volt battery (included) |
| Average Battery Life | 2 years |
| Wireless Range | Up to 350 feet |
| Country of Origin | Taiwan |
8. Warranty and Support
The Mail Chime MAIL-1200 Mailbox Notification System comes with a limited warranty against defects in materials and workmanship for a period of 1 year from the date of purchase. This product complies with all needed government regulations, particularly Part 15 of the Federal Code of Regulation (FCC) rules, which pertain to digital devices.
For technical support, warranty claims, or further assistance, please refer to the contact information provided with your product packaging or visit the official Mail Chime website.
