West Bend 55109 3-in-1 Coffee Center Instruction Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the lid is removed during the brewing cycle.
• This appliance is for household use only.

Product Overview

The West Bend 55109 3-in-1 Coffee Center is designed to provide versatile coffee preparation options, including drip coffee, espresso, and milk frothing. This unit features a compact design with separate brewing systems for convenience.

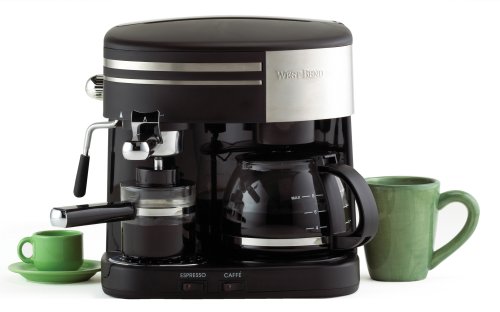

Image: The West Bend 55109 3-in-1 Coffee Center, showcasing its drip coffee side with a glass carafe and its espresso side with a portafilter and steam wand. Two green coffee cups are placed next to the machine.

Key Features:

• Simultaneous Functionality: Brew drip coffee and espresso concurrently.
• Steam Nozzle: Integrated steam wand for frothing milk for cappuccinos and lattes.
• Pause and Serve: Allows temporary removal of the drip coffee carafe during brewing without drips.
• Illuminated Power Switches: Clear indication of power status for each function.
• Removable Swing-Out Basket: For easy access when adding filter and coffee grounds.
• Dishwasher-Safe Parts: Basket, carafes, covers, and espresso maker attachments are dishwasher safe for easy cleaning.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials and inspect the appliance for any damage.
2. Initial Cleaning: Before first use, wash the drip coffee carafe, espresso carafe, filter basket, and espresso holder in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the unit with a damp cloth.
3. Positioning: Place the coffee center on a flat, stable, heat-resistant surface, away from the edge of the counter. Ensure adequate ventilation around the unit.
4. First Water Cycle (Drip Coffee):
   • Fill the drip coffee water reservoir with cold water to the 10-cup mark.
   • Place an empty filter in the swing-out basket.
   • Place the empty drip coffee carafe on the warming plate.
   • Plug the unit into a 120-volt AC outlet.
   • Press the "CAFFE" power switch. Allow the full cycle to complete. Discard the water.
5. First Water Cycle (Espresso):
   • Fill the espresso water reservoir with cold water to the 4-cup mark.
   • Attach the espresso holder without coffee grounds.
   • Place the empty espresso carafe under the espresso holder.
   • Press the "ESPRESSO" power switch. Allow the full cycle to complete. Discard the water.

Operating Instructions

Brewing Drip Coffee (10-Cup Capacity)

1. Ensure the unit is unplugged.
2. Fill the drip coffee water reservoir with cold, fresh water to the desired level (up to 10 cups). Do not overfill.
3. Swing out the filter basket. Insert a standard basket-style paper filter or the reusable filter (if included).
4. Add the desired amount of ground coffee into the filter. A general guideline is one tablespoon of coffee per cup, adjusted to personal preference.
5. Swing the filter basket back into place securely.
6. Place the empty drip coffee carafe on the warming plate.
7. Plug the unit into a 120-volt AC outlet.
8. Press the "CAFFE" power switch. The indicator light will illuminate, and brewing will begin.
9. The "Pause n' Serve" feature allows you to temporarily remove the carafe to pour a cup before the brewing cycle is complete. Replace the carafe within 20 seconds to prevent overflow.
10. Once brewing is complete, the warming plate will keep the coffee hot. The unit will automatically shut off after a period of time (refer to specific model details for exact duration).

Brewing Espresso (4-Cup Capacity)

1. Ensure the unit is unplugged.
2. Fill the espresso water reservoir with cold, fresh water to the desired level (up to 4 cups). Do not overfill.
3. Add finely ground espresso coffee to the espresso holder. Do not overfill or pack too tightly. For two cups, use the adapter.
4. Securely attach the espresso holder to the unit by twisting it into place.
5. Place the empty espresso carafe under the espresso holder.
6. Plug the unit into a 120-volt AC outlet.
7. Press the "ESPRESSO" power switch. The indicator light will illuminate.
8. Allow the unit to heat up and brew the espresso. The brewing process will stop automatically when the water reservoir is empty.
9. Carefully remove the espresso carafe. The espresso holder will be hot.

Frothing Milk

1. Ensure the espresso side of the machine is powered on and has reached brewing temperature (the "ESPRESSO" light should be on).
2. Fill a small pitcher with cold milk (dairy or non-dairy) to about one-third full.
3. Position the steam nozzle into the milk, just below the surface.
4. Turn the steam control knob to release steam. Move the pitcher up and down slowly to incorporate air and create foam.
5. Once the desired froth and temperature are achieved, turn off the steam control knob.
6. Immediately wipe the steam nozzle with a damp cloth to prevent milk residue from drying.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your West Bend 3-in-1 Coffee Center.

• Daily Cleaning:
  • Always unplug the appliance and allow it to cool completely before cleaning.
  • Wash the drip coffee carafe, espresso carafe, filter basket, and espresso holder in warm, soapy water. These parts are also dishwasher-safe (top rack recommended).
  • Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
  • Clean the steam nozzle immediately after each use by wiping with a damp cloth. If clogged, use a small pin to clear the opening.
• Descaling (Monthly or as needed):

  Mineral deposits from water can build up and affect performance. Descale both the drip coffee and espresso sides regularly.

  • Prepare a descaling solution using white vinegar and water (e.g., 1 part vinegar to 2 parts water) or a commercial descaling agent according to its instructions.
  • For the drip coffee side, fill the water reservoir with the descaling solution and run a full brew cycle without coffee.
  • For the espresso side, fill the water reservoir with the descaling solution and run a full brew cycle without coffee.
  • After descaling, run 2-3 cycles with fresh, clean water through both sides to rinse thoroughly.

Troubleshooting

Specifications

Warranty and Support

This West Bend 55109 3-in-1 Coffee Center comes with a 1 Year Warranty from the date of purchase, covering manufacturing defects under normal household use.

For warranty claims, technical assistance, or to order replacement parts, please contact West Bend customer support. Keep your proof of purchase for warranty validation.

Please refer to the official West Bend website or your purchase documentation for the most current contact information and detailed warranty terms.
