CPS Pro Set VP6S Premium Series 6 CFM Single-Stage Vacuum Pump: User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your CPS Pro Set VP6S Premium Series 6 CFM Single-Stage Vacuum Pump. Please read these instructions thoroughly before operation to ensure proper function and to prevent damage or injury.

The CPS VP6S is a 6 CFM single-stage vacuum pump designed for various applications requiring deep vacuum, such as HVAC/R system evacuation. It features a versatile dual voltage 1/2 HP motor and a gas ballast valve for efficient moisture removal.

Image 1.1: Front view of the CPS Pro Set VP6S Premium Series 6 CFM Single-Stage Vacuum Pump. This image displays the pump's main body, handle, oil sight glass, and input ports.

2. Safety Information

Always observe the following safety precautions to reduce the risk of electric shock, fire, and personal injury.

• Ensure the pump is connected to a properly grounded electrical outlet.
• Do not operate the pump in wet conditions or expose it to rain.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Avoid contact with hot surfaces during and after operation.
• Use only approved vacuum pump oil.
• Disconnect power before performing any maintenance or service.
• Keep children and unauthorized personnel away from the operating area.

3. Package Contents

Verify that all items are present upon unpacking:

• CPS Pro Set VP6S Vacuum Pump
• Vacuum Pump Oil (typically 2 bottles)
• Instruction Manual (this document)

Note: Specific contents may vary slightly.

4. Product Features

• 6 CFM Single-Stage Design: Provides efficient evacuation for various systems.
• Dual Voltage 1/2 HP Motor: Operates on both 115V and 230V power supplies, offering versatility.
• Gas Ballast Valve: Aids in removing moisture from the system, improving vacuum depth and speed.
• High Ultimate Vacuum Rating: Achieves vacuum levels as low as 50 microns.
• Advanced Air Cooled Motor: Designed for reliable operation in high ambient temperatures.
• Proprietary Oil and Mist-Free Exhaust Port Cap: Ensures a clean and safe working environment.
• Improved Internal Oiling System: Extends pump life and enhances vacuum performance.

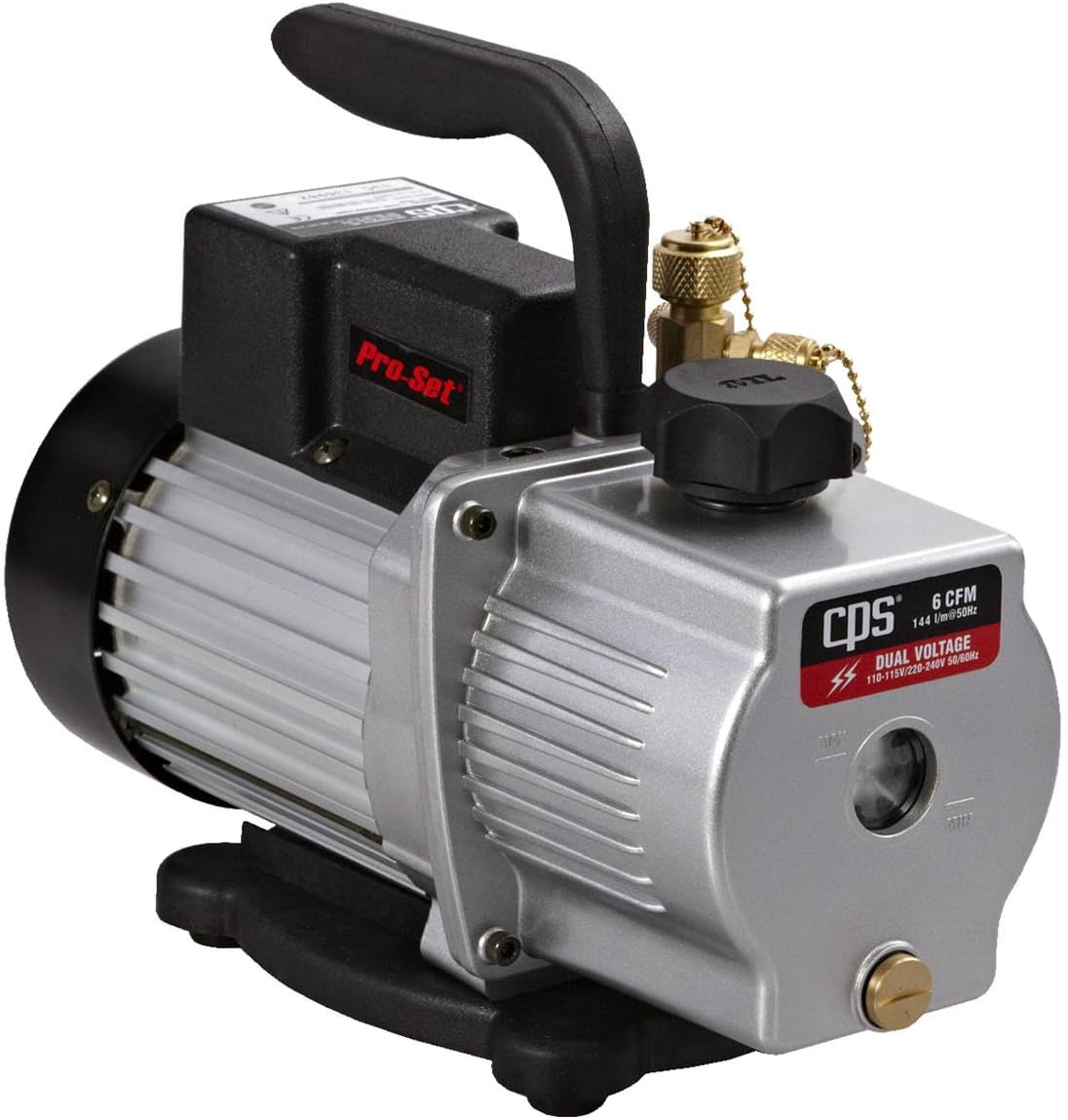

Image 4.1: Side view of the CPS VP6S vacuum pump, highlighting the oil sight glass and input ports. This view shows the robust construction and key operational indicators.

5. Setup

5.1 Initial Inspection

Before first use, inspect the pump for any visible damage that may have occurred during shipping. Ensure all caps and fittings are secure.

5.2 Adding Vacuum Pump Oil

1. Remove the oil fill cap.
2. Slowly pour the recommended vacuum pump oil into the oil reservoir until the oil level is between the "MIN" and "MAX" lines on the sight glass. Do not overfill.
3. Replace the oil fill cap securely.

Image 5.1: Close-up view of the CPS VP6S vacuum pump, illustrating the oil fill cap and the oil level sight glass. Proper oil level is crucial for pump performance.

5.3 Electrical Connection

The VP6S features a dual voltage motor (115V / 230V). Ensure the pump is connected to an appropriate power supply. The pump automatically senses the voltage. Use a grounded power cord suitable for the local electrical standards.

6. Operating Instructions

6.1 Connecting to a System

1. Ensure the system to be evacuated is depressurized and isolated.
2. Connect a vacuum-rated hose from the system to one of the pump's inlet ports. Ensure connections are tight to prevent leaks.
3. If using a manifold gauge set, connect it between the system and the pump.

6.2 Starting the Pump

1. Ensure the oil level is correct.
2. Close the gas ballast valve (if applicable) for initial pull-down.
3. Plug the pump into a suitable electrical outlet.
4. Turn the power switch to the "ON" position. The pump will begin to operate.

6.3 Monitoring Vacuum and Using Gas Ballast

Monitor the vacuum level using a micron gauge. If moisture is present in the system, the vacuum level may stall. To assist in moisture removal, slowly open the gas ballast valve. This introduces a small amount of atmospheric air into the pump, preventing condensation of water vapor within the pump oil. Close the gas ballast valve once the desired vacuum level is approached or when moisture is no longer an issue.

6.4 Shutting Down the Pump

1. Once evacuation is complete, close the valve on the system or manifold to isolate the vacuum pump.
2. Turn the pump power switch to the "OFF" position.
3. Disconnect the power cord.
4. Carefully disconnect the vacuum hose from the pump and system. Replace protective caps on pump ports.

7. Maintenance

7.1 Oil Change

Regular oil changes are critical for pump longevity and performance. Change the oil when it appears discolored, cloudy, or after every 10-20 hours of operation, or more frequently if evacuating systems with high moisture content.

1. Ensure the pump is off and unplugged.
2. Place a suitable container under the oil drain plug.
3. Remove the oil drain plug and the oil fill cap to allow the oil to drain completely.
4. Replace the oil drain plug.
5. Refill with new, clean vacuum pump oil as described in Section 5.2.
6. Dispose of used oil responsibly according to local regulations.

7.2 General Cleaning

Keep the exterior of the pump clean and free of debris. Periodically check the exhaust port cap for any blockages and clean as necessary.

8. Troubleshooting

For issues not listed or if solutions do not resolve the problem, contact CPS customer support.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official CPS website or contact their customer service department. Keep your purchase receipt as proof of purchase.

Note: Specific warranty terms and conditions may vary by region and purchase date.
