BOSCH T4B Portable Gravity-Rise Miter Saw Stand
Model: T4B | Brand: Bosch
Introduction
The Bosch T4B Portable Gravity-Rise Miter Saw Stand is engineered to provide a stable and portable workstation for your miter saw. Its innovative design allows for quick setup and breakdown, making it ideal for various job site conditions or workshop environments. This manual will guide you through the proper assembly, operation, and maintenance of your miter saw stand to ensure safe and efficient use.
Setup
Assembly
The Bosch T4B stand is designed for straightforward assembly. Follow the included instructions carefully. Most users report assembly taking approximately 45 minutes, even without prior experience.

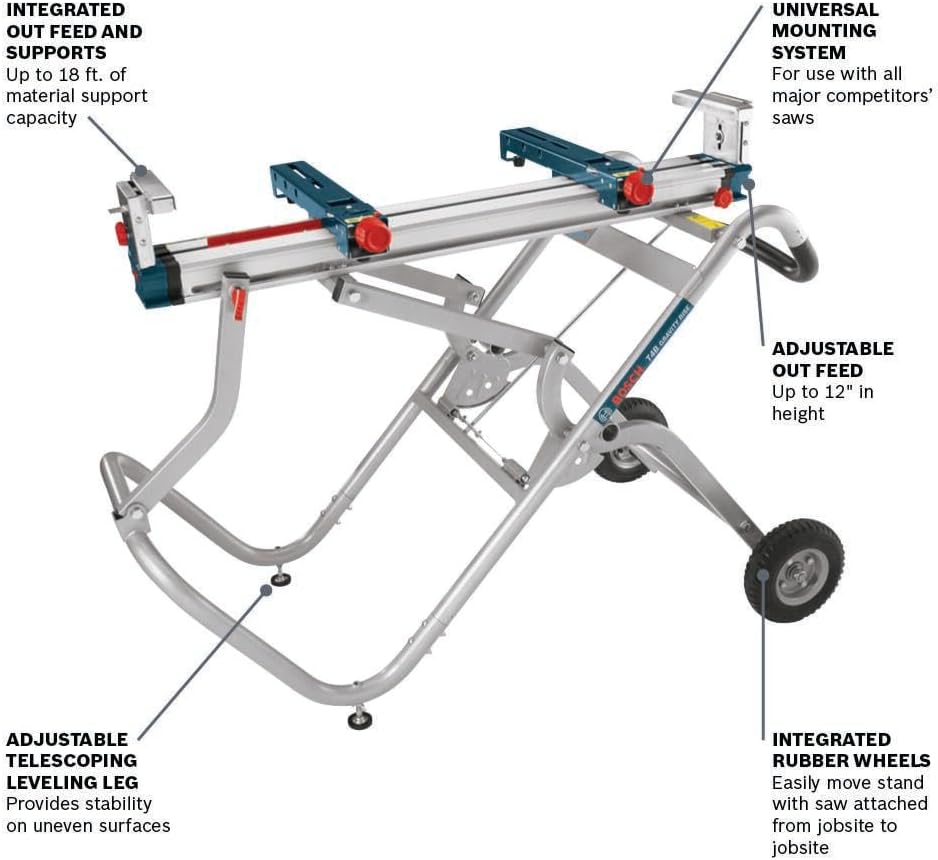

Figure 1: Front view of the T4B stand highlighting integrated outfeed and supports, universal mounting system, adjustable outfeed, adjustable telescoping leveling leg, and integrated rubber wheels.
Attaching Your Miter Saw
The stand features a universal mounting system compatible with most major miter saw brands. The rapid-release tool mounts allow for quick attachment and detachment of your saw. Ensure the saw is securely bolted to the mounting brackets before use.
Figure 2: Close-up of the adjustable material support, demonstrating how it extends to provide additional support for longer workpieces.
Adjustable Supports and Leveling
The stand includes extendable material supports that can handle up to 18 feet of material, providing ample support for long workpieces. Adjustable telescoping leveling legs ensure stability on uneven surfaces, crucial for precise cuts.
Video 1: Official Bosch video demonstrating the setup and features of the Portable Gravity-Rise Wheeled Miter Saw Stand. This video illustrates the ease of unfolding and preparing the stand for use.
Operating the Gravity-Rise System
The patented Gravity-Rise system allows for effortless setup and breakdown of the stand, even with the miter saw attached. This system significantly reduces physical strain and saves time.
Folding and Unfolding
To unfold the stand, simply release the red lever and guide the stand upwards. The weight and balance of the saw assist in the process. To fold, press the red lever and gently push the stand downwards until it locks into the transport position.
Figure 3: A user demonstrating the folding mechanism of the Gravity-Rise stand, showing how the miter saw remains attached during the process.
Figure 4: A user demonstrating the unfolding mechanism, highlighting the ease of transitioning from storage to operational mode.
Portability and Storage
Equipped with 8-inch pneumatic wheels, the stand can be easily transported across various job site terrains, even with heavy miter saws attached. The vertical storage capability saves significant space in your workshop or garage.
Figure 5: The T4B stand in its vertical storage configuration, illustrating its compact footprint when not in use.
Video 2: Merchant video showcasing the Bosch Portable Gravity-Rise Wheeled Miter Saw Stand T4B, including its folding, unfolding, and transport capabilities.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your miter saw stand.
- Cleaning: Keep the stand free from sawdust, debris, and moisture. Wipe down metal surfaces with a clean, dry cloth after each use.
- Fasteners: Periodically check all bolts, nuts, and screws to ensure they are tight. Tighten any loose fasteners to maintain stability.
- Wheels: Inspect the 8-inch pneumatic wheels for proper inflation and wear. Replace if necessary.
- Moving Parts: Apply a light lubricant to pivot points and sliding mechanisms as needed to ensure smooth operation of the Gravity-Rise system and extendable supports.
Troubleshooting
If you encounter issues with your miter saw stand, refer to the following common problems and solutions:
- Stand is unstable: Ensure all leveling feet are properly adjusted and making firm contact with the ground. Check that all frame connections are tight.
- Difficulty folding/unfolding: Check for any obstructions in the folding mechanism. Ensure the red release lever is fully engaged/disengaged. Lubricate pivot points if movement is stiff.
- Saw not secure on mounts: Verify that the miter saw is correctly seated in the universal tool mounts and that the red knobs and bolts are fully tightened.
For more detailed troubleshooting or complex issues, please refer to the official user manual or contact Bosch customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Number | T4B |
| Material | Alloy Steel |
| Item Weight | 88 Pounds |
| Load Capacity | 76.7 Pounds |
| Material Capacity | Up to 18 feet |
| Wheel Size | 8-inch pneumatic |
| Assembly Required | Yes |
| Country of Origin | China |
Warranty and Support
Warranty Information
The BOSCH T4B Portable Gravity-Rise Miter Saw Stand comes with a Limited 1 Year Warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, technical assistance, or warranty inquiries, please contact Bosch Customer Support. You can also find additional resources and a downloadable PDF version of the user manual on the official Bosch website or through the provided link: User Manual (PDF).
- Online Resources: Visit the Bosch Store on Amazon for product information and support.
- Returns: This product is eligible for 30-day easy returns.
