1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Siemens 5TE6800 SCHUKO socket. This product is designed for professional and domestic use, providing a reliable 16A, 230VAC power connection.
The Siemens 5TE6800 is a high-quality electrical component manufactured in Germany, ensuring adherence to stringent standards such as DIN VDE 0620-1.
Figure 1: Siemens 5TE6800 SCHUKO Socket. This image shows the front view of the white SCHUKO socket with its electrical terminals (L, N, Ground) clearly visible at the bottom, and the 16A 230V rating printed on the face.
2. Safety Information
WARNING: Risk of electric shock. Installation and maintenance should only be performed by qualified personnel in accordance with all local and national electrical codes and regulations.
- Always disconnect power at the main circuit breaker or fuse box before installing or servicing the device.
- Verify that the voltage and current ratings of the socket match your electrical system requirements (230VAC, 16A).
- Ensure proper grounding connections are made to prevent electric shock.
- Do not use the device if it appears damaged.
- Keep children away from electrical installations.
3. Package Contents
The package for the Siemens 5TE6800 SCHUKO socket typically includes:
- 1 x Siemens 5TE6800 SCHUKO Socket
No additional components or batteries are included or required for the operation of this device.
4. Setup and Installation
The Siemens 5TE6800 SCHUKO socket is designed for DIN rail mounting, commonly found in electrical distribution boards or consumer units.
- Preparation: Ensure the main power supply to the installation area is completely switched off and locked out. Use a voltage tester to confirm no live current.
- Mounting: Clip the SCHUKO socket onto a standard 35mm DIN rail. Ensure it is securely fastened and does not wobble.
- Wiring Connections:
- Connect the Live (Phase) wire to the terminal marked 'L'.
- Connect the Neutral wire to the terminal marked 'N'.
- Connect the Earth (Ground) wire to the terminal marked with the ground symbol (⊕).
Ensure all wire connections are tight and secure to prevent loose connections, which can cause overheating or arcing. Use appropriate wire gauges for 16A current.
- Verification: After wiring, double-check all connections. Ensure no bare wires are exposed.
- Power Restoration: Once installation is complete and verified, restore power to the circuit.

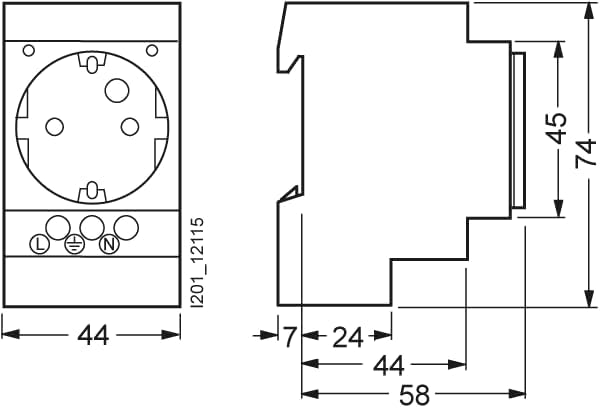

Figure 2: Technical Drawing with Dimensions. This diagram illustrates the precise measurements of the Siemens 5TE6800 SCHUKO socket, including its width (44mm), depth (58mm), and height (74mm), crucial for planning installation space.
5. Operating Instructions
Once properly installed and powered, the Siemens 5TE6800 SCHUKO socket functions as a standard electrical outlet. To use:
- Ensure the appliance or device you intend to plug in is compatible with 230VAC and does not exceed the 16A current rating of the socket.
- Insert the plug of your appliance firmly into the socket.
- To disconnect, pull the plug directly out of the socket. Do not pull by the cord.
Avoid overloading the socket by connecting multiple high-power devices via adapters, as this can lead to overheating and fire hazards.
6. Maintenance
The Siemens 5TE6800 SCHUKO socket requires minimal maintenance. However, periodic checks are recommended:
- Cleaning: Ensure power is off before cleaning. Wipe the exterior with a dry, soft cloth. Do not use abrasive cleaners or solvents.
- Inspection: Periodically inspect the socket for any signs of damage, discoloration, or loose connections. If any issues are observed, disconnect power and consult a qualified electrician.
- Environmental Conditions: Ensure the socket is not exposed to excessive moisture, dust, or extreme temperatures beyond its operating range. The temperature index is Deep-Freeze: >-15 C.
7. Troubleshooting
If the SCHUKO socket is not functioning as expected, consider the following troubleshooting steps:
- No Power:
- Check the circuit breaker or fuse for the circuit. Reset if tripped.
- Ensure the main power supply to the distribution board is on.
- Verify that the wiring connections to the socket are secure (only by qualified personnel with power off).
- Overheating:
- Disconnect any appliances.
- Ensure the connected appliance does not exceed the 16A rating.
- Check for loose wiring connections (only by qualified personnel with power off).
- If the problem persists after these steps, consult a qualified electrician. Do not attempt to repair the socket yourself.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | SIEMENS |
| Model Number | 5TE6800 |
| Rated Voltage | 230 V |
| Rated Current | 16 A |
| Dimensions (L x W x H) | 2 x 9 x 8 cm (Product); 97 x 82 x 51 mm (Package) |
| Weight | 81 g (Package); 70 g (Product) |
| Material | Siemens (as per specification, likely plastic/metal) |
| Type of Connector | Din |
| Country of Origin | Germany |
| Temperature Index | Deep-Freeze: >-15 C |
| Usage | Professional and domestic use |
| International Article Code | 04001869311982 |
9. Warranty and Support
This Siemens product comes with a worldwide guarantee from Siemens, ensuring quality and reliability.
For technical support, warranty claims, or further inquiries, please visit the official Siemens website or contact their customer service department. Keep your purchase receipt as proof of purchase.
Online Resources:
Figure 3: Siemens Logo. The official logo of Siemens, representing the brand's commitment to quality and innovation.
