Introduction
Thank you for choosing the Kalorik 5-Speed Stand Mixer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read all instructions carefully before first use and retain this manual for future reference.
This versatile stand mixer is designed to simplify your baking and cooking tasks, offering five speed settings and a turbo function for various mixing needs. It can also convert into a hand mixer for added flexibility.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions before operating the mixer.
- To protect against electrical hazards, do not immerse the mixer unit, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to prevent injury and/or damage to the mixer.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach beaters/dough hooks to the mixer before plugging the cord into the wall outlet. To disconnect, turn control to OFF, then remove plug from wall outlet.
- Do not use the appliance for other than intended use.
Product Components
Familiarize yourself with the parts of your Kalorik Stand Mixer:
- Mixer Unit (main body with motor and controls)
- 4-Quart Rotating Mixing Bowl
- Chrome-Plated Beaters (2)
- Dough Hooks (2)
- Tilt-Back Head Release Button
- Speed Control Knob
- Turbo Button
- Accessory Eject Button

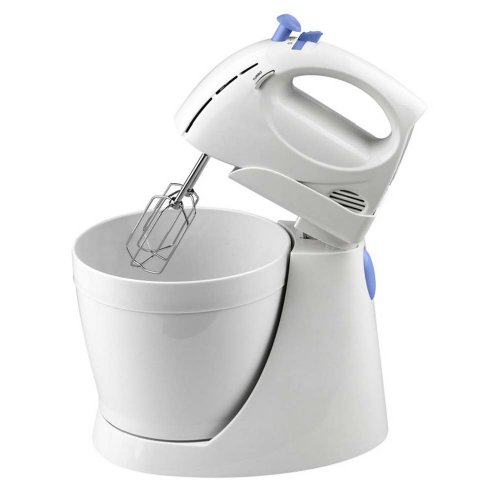

This image displays the Kalorik 5-Speed Stand Mixer in white, featuring the main unit, a 4-quart rotating bowl, chrome-plated beaters, and dough hooks.
Setup
Before first use, ensure all packaging materials are removed and clean the accessories as described in the 'Cleaning and Maintenance' section.
- Place the mixer unit on a stable, flat, and dry surface.
- Press the tilt-back head release button to lift the mixer head.
- Place the 4-quart rotating bowl onto the base, ensuring it is securely seated.
- Insert the desired attachments (beaters or dough hooks) into the openings on the underside of the mixer head. Push firmly until they click into place. Ensure both attachments are inserted correctly.
- Lower the mixer head until it locks into position.
- Plug the power cord into a standard electrical outlet. The mixer is now ready for use.
Operating Instructions
Using as a Stand Mixer
- Ensure the mixer is properly set up with the bowl and desired attachments.
- Add your ingredients to the mixing bowl.
- Turn the speed control knob to the desired speed setting (1-5). Start with a lower speed to prevent splashing, then gradually increase as needed.
- For an extra burst of power, press and hold the TURBO button while the mixer is operating. Release the button to return to the selected speed.
- When mixing is complete, turn the speed control knob to the '0' (OFF) position.
- Unplug the mixer from the outlet.
- Press the tilt-back head release button to lift the mixer head.
- Press the accessory eject button to release the beaters or dough hooks.
Using as a Hand Mixer
The mixer unit can be detached from the stand for use as a hand mixer:
- Ensure the mixer is unplugged and the speed control is set to '0'.
- Press the tilt-back head release button and lift the mixer head.
- Locate the release lever or button on the underside of the mixer head where it connects to the stand. Press or slide this mechanism to detach the mixer unit from the stand.
- You can now use the mixer unit as a portable hand mixer. Follow the same operating steps for speed control and turbo function.
- To reattach, align the mixer unit with the stand and push down firmly until it clicks securely into place.
Speed Control
- Speed 1-2: For slow stirring, combining dry ingredients, or folding.
- Speed 3: For mixing batters, gravies, and sauces.
- Speed 4-5: For beating eggs, whipping cream, or creaming butter and sugar.
- TURBO: Provides maximum power for tough mixing tasks. Only activate when the mixer is already running at a selected speed.
Cleaning and Maintenance
Proper cleaning and maintenance will ensure the longevity and optimal performance of your mixer.
Daily Cleaning
- Always unplug the mixer from the power outlet before cleaning.
- Remove the beaters or dough hooks by pressing the eject button.
- The mixer head and base can be wiped clean with a damp cloth. Do not immerse the mixer unit in water or any other liquid.
- The 4-quart rotating bowl, chrome-plated beaters, and dough hooks are dishwasher safe for easy cleaning. Alternatively, they can be washed by hand in warm, soapy water and rinsed thoroughly.
- Dry all parts completely before storing.
Storage
Store the mixer and its accessories in a clean, dry place when not in use. Ensure the power cord is neatly wrapped and not kinked.
Troubleshooting
If you encounter any issues with your mixer, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power outlet not working; speed control not set. | Ensure the power cord is securely plugged into a working outlet. Turn the speed control knob to a desired speed (1-5). |
| Attachments do not stay in place. | Attachments not fully inserted. | Push attachments firmly into the openings until they click into place. |
| Ineffective mixing. | Incorrect speed setting; wrong attachment for task; too much/too little ingredient. | Adjust speed. Ensure appropriate attachments are used (e.g., beaters for whipping, dough hooks for dough). Adjust ingredient quantities as per recipe. |
| Mixer head does not stay down. | Mixer head not locked into position. | Push the mixer head down firmly until it clicks and locks into place. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Kalorik |
| Model Number | M-14481 |
| Color | White |
| Rated Wattage | 300 watts |
| Speed Settings | 5 speeds + Turbo function |
| Bowl Capacity | 4 Quarts |
| Material | Plastic housing |
| Product Dimensions | 13.5 x 10 x 7.5 inches |
| Item Weight | 5.1 pounds |
| Dishwasher Safe Parts | Bowl, beaters, dough hooks |
| Special Feature | Adjustable Speed Control, Converts to Hand Mixer |
Warranty and Support
Warranty Information
This Kalorik Stand Mixer (Model M-14481) is covered by a one-year limited warranty from the date of purchase. This warranty covers defects in material and workmanship under normal household use. It does not cover damage resulting from misuse, accident, commercial use, or unauthorized modifications.
Customer Support
For warranty claims, technical assistance, or questions regarding your product, please contact Kalorik Customer Service. Please have your model number (M-14481) and proof of purchase available when contacting support.
You can typically find contact information on the manufacturer's official website or through the retailer where the product was purchased.
