1. Introduction
Thank you for choosing the REV SupraLine 6-Socket Power Strip. This high-quality power strip is designed for reliable power distribution in both home and office environments. It features a robust aluminum housing, integrated surge protection, and a mains suppression filter to protect your electronic devices and ensure clear audio and video signals. The illuminated bipolar switch allows for convenient energy saving by disconnecting all connected devices simultaneously.
Safety Information
- Read all instructions carefully before use.
- Do not exceed the maximum load capacity of 3500 W (16 A).
- Do not connect multiple power strips in series.
- Use only in dry, indoor environments.
- Keep out of reach of children.
- Do not open or modify the device. Refer servicing to qualified personnel.
2. Setup
2.1 Unpacking
Carefully remove the power strip from its packaging. Inspect the device for any signs of damage. If damage is present, do not use the power strip and contact your retailer.
2.2 Placement
Position the power strip on a stable, flat surface in your desired location, such as a desk or floor. Ensure adequate ventilation around the unit.
Image: The REV SupraLine power strip integrated into an office or living room environment, demonstrating its suitable placement.
2.3 Cable Management and Mounting
The power strip features integrated cable management options to keep your workspace tidy. You can store excess cable length neatly within the housing. It also includes suspension eyelets for screws or nails, allowing for convenient wall mounting.
Image: A detailed view of the power strip's rear, highlighting the cable management channel and eyelets for wall mounting.
2.4 Connecting to Power
Plug the power strip's main plug into a properly grounded wall outlet. Ensure the wall outlet meets the electrical requirements (230 V~, 50 Hz).
3. Operating Instructions
3.1 Powering On/Off
The power strip is equipped with an illuminated bipolar on/off switch. Press the switch to the 'I' position to turn on the power to all sockets. The switch will illuminate when active. Press it to the 'O' position to turn off the power, disconnecting all connected devices and saving energy.
Image: A close-up of the power strip's control panel, showing the illuminated on/off switch and the diagram for the mains filter.
3.2 Connecting Devices
Plug your electronic devices into the six horizontal sockets. Ensure that the total power consumption of all connected devices does not exceed 3500 W.
3.3 Surge Protection
The power strip includes integrated surge protection (Type 3, EN 61643-11) for all sockets, safeguarding your devices from voltage spikes. A dedicated indicator light (often labeled 'aktiv' or similar) will show if the surge protection is active. If this indicator light goes out, it means the surge protection has been activated by a power surge and the unit should be replaced to ensure continued protection.
Image: A visual representation of lightning, illustrating the power strip's function in protecting devices from voltage surges.
3.4 Mains Suppression Filter
An integrated mains suppression filter helps to reduce distracting frequencies in picture and sound, improving the quality of your audio and video signals. This filter is effective for frequencies ranging from 0.1 Hz up to 10 MHz.
Image: A side-by-side comparison showing how the mains suppression filter reduces visual noise and improves picture clarity on a screen.
4. Maintenance
4.1 Cleaning
To clean the power strip, first ensure it is disconnected from the main power supply. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners, solvents, or wet cloths, as these can damage the unit or pose an electrical hazard.
4.2 Storage
When not in use for extended periods, store the power strip in a cool, dry place, away from direct sunlight and moisture.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to connected devices. | Power strip switch is off. Power strip is not plugged into wall outlet. Wall outlet is not functioning. Overload. | Ensure the illuminated switch is in the 'I' (on) position. Check that the power strip is securely plugged into a live wall outlet. Test the wall outlet with another device. Disconnect some devices to reduce the load. |
| Surge protection indicator light is off. | The surge protection has been activated by a power surge. | The power strip has protected your devices but its surge protection capability is now exhausted. Replace the power strip to ensure continued protection. |
| Audio/video interference still present. | Interference source is not within the filter's effective range. Common mode interference. | While the mains filter reduces differential mode noise, some interference (common mode) may persist. Consider adding ferrites to power cables of affected equipment and signal cables (HDMI, USB, audio) to further reduce noise. |
6. Specifications

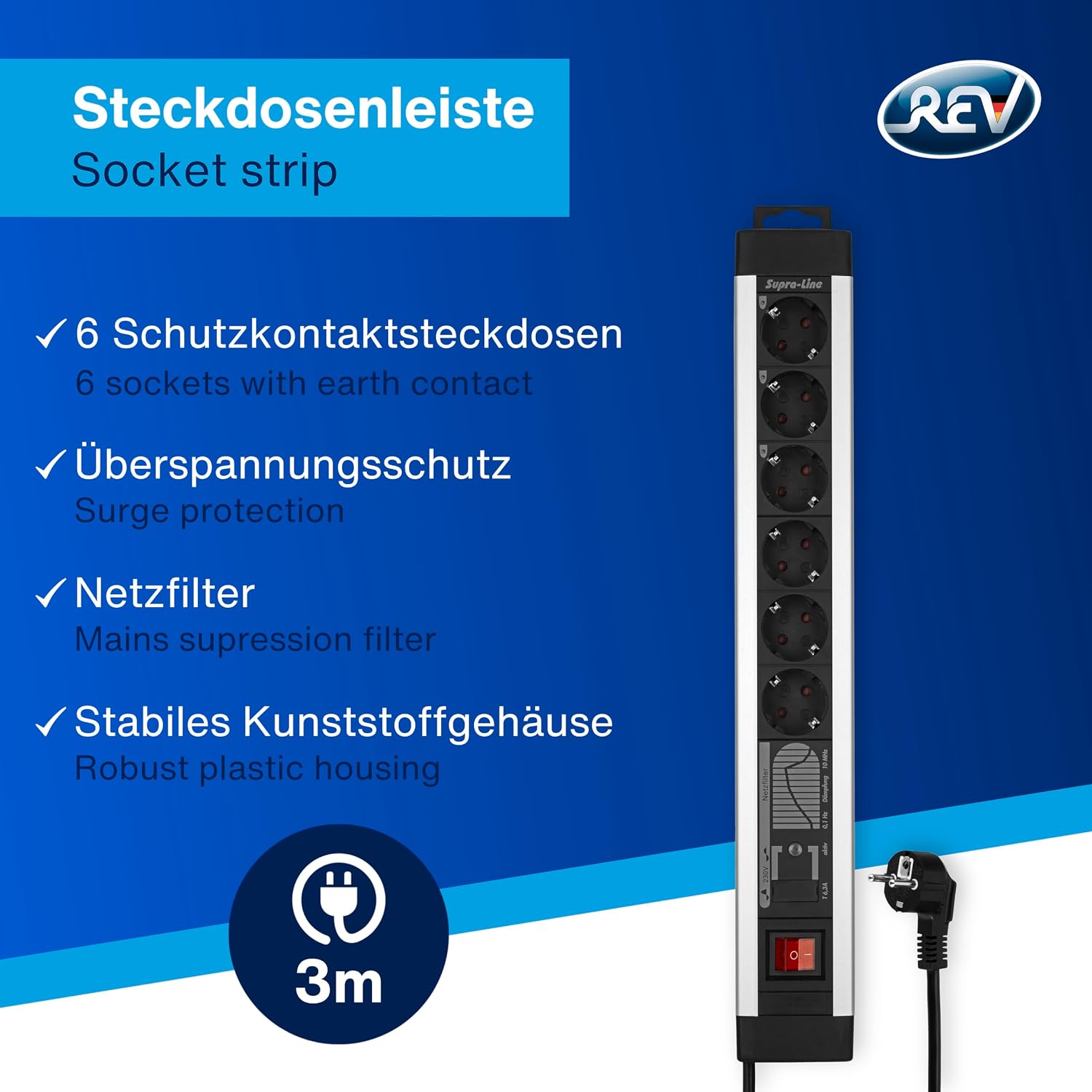

Image: A comprehensive view of the REV SupraLine 6-socket power strip, highlighting its key features and design.
| Feature | Detail |
|---|---|
| Model Number | 0014663913 |
| Number of Sockets | 6 (with earth contact) |
| Cable Type | H05VV-F 3G1.5 mm² |
| Cable Length | 3 meters |
| Voltage | 230 V~, 50 Hz |
| Max Current | 16 A |
| Max Power | 3500 W |
| Surge Protection | Type 3, EN 61643-11 Uc: 250 V~ Up: 1.5 kV Uoc: 5 kV Leakage Current: 22,500 A |
| Mains Filter Frequency Range | 0.1 Hz to 10 MHz |
| Insulation Resistance | 10 GOhm |
| Dimensions (L x W x H) | 486 x 70 x 42 mm |
| Weight | 1.1 kg (approx. 2.4 lbs) |
| Housing Material | Aluminum |
| Special Features | Illuminated bipolar on/off switch, cable management, wall mounting options |
Image: A visual representation of the power strip's electrical specifications, including voltage, current, and maximum wattage.
Image: A diagram illustrating the physical dimensions (length, width, height) of the REV SupraLine power strip.
7. Warranty & Support
7.1 Warranty Information
This REV SupraLine power strip comes with a 1-year warranty on parts, covering manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or exceeding the specified load limits.
7.2 Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact REV Ritter GmbH customer support. Contact details can typically be found on the manufacturer's official website or on the product packaging.
Manufacturer: REV Ritter GmbH
