Pride Go-Go Ultra X SC44X 4-Wheel Electric Travel Scooter User Manual

Introduction

This manual provides essential information for the safe and effective operation, maintenance, and care of your Pride Go-Go Ultra X SC44X 4-Wheel Electric Travel Scooter. Please read this manual thoroughly before operating your scooter. Understanding its features and functions will ensure a safe and enjoyable experience.

Safety Information

The Pride Go-Go Ultra X SC44X is classified as an FDA Class II Medical Device, designed to assist individuals with mobility impairments. Adhere to all safety guidelines to prevent injury or damage.

• Always operate the scooter at a safe speed, especially in crowded areas or on uneven terrain.
• Ensure the battery is fully charged before extended use.
• Do not exceed the maximum weight limit of 260 pounds.
• Avoid sudden stops or turns at high speeds.
• Be aware of your surroundings and potential obstacles.
• Always use caution when disassembling or assembling the scooter to avoid pinching or injury.

Setup

Unpacking and Initial Assembly

Your scooter arrives disassembled into five lightweight pieces for convenient transport. Carefully remove all components from the packaging.

1. Place the rear drive section on a flat, stable surface.
2. Attach the front frame section to the rear drive section. The auto-latching lockup mechanism will secure the connection with one hand.
3. Connect the auto-connecting front-to-rear cable.
4. Insert the seat post into the front frame-mounted receiver.
5. Attach the seat to the seat post. Ensure it clicks securely into place.
6. Mount the tiller assembly onto the front frame.
7. Install the battery pack into its designated compartment.

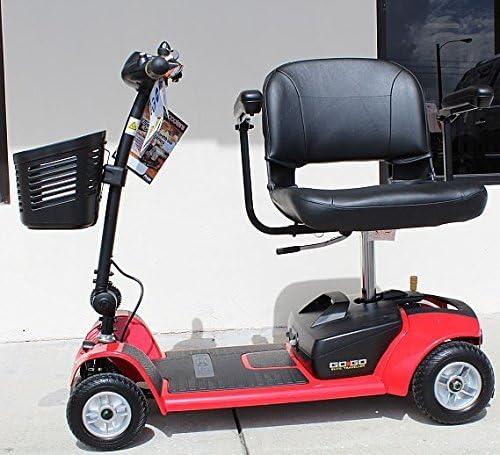

Image: The Pride Go-Go Ultra X SC44X 4-Wheel Electric Travel Scooter fully assembled, showcasing its compact design.

Adjustments

• Seat Height: Adjust the seat height for comfortable leg positioning.
• Tiller Angle: Adjust the tiller angle to a comfortable steering position.

Operating Instructions

Controls Overview

Image: A close-up view of the scooter's tiller, showing the key switch, speed adjustment dial, battery indicator, and horn button.

• Key Switch: Turns the scooter power on and off.
• Speed Adjustment Dial: Controls the maximum speed of the scooter (up to 4 mph).
• Battery Gauge: Displays the current battery charge level.
• Throttle Lever: Push forward for forward motion, pull back for reverse.
• Horn Button: Activates the horn for signaling.

Starting and Driving

1. Insert the key into the key switch and turn it to the 'ON' position.
2. Set the speed adjustment dial to a low setting for initial operation.
3. Gently press the throttle lever to begin moving. Release the lever to engage the automatic brake.
4. Steer the scooter using the tiller. The scooter has a turn radius of 44 inches.
5. Increase speed gradually using the speed adjustment dial as you become comfortable.

Battery Charging

The scooter is equipped with a 12ah removable battery pack and a convenient off-board dual voltage charger.

• The battery pack can be charged either on-board the scooter or off-board.
• To charge off-board, remove the battery pack from the scooter.
• Connect the charger to the battery pack and then plug the charger into a standard electrical outlet.
• Allow the battery to charge fully. The charger indicator light will change to indicate a full charge.
• Charging times may vary, but typically take 8-14 hours for a full charge from empty.

Disassembly and Transport

The scooter's frame design allows it to easily disassemble into 5 super lightweight pieces for convenient transport and storage.

1. Ensure the scooter is turned off and the key is removed.
2. Remove the battery pack.
3. Remove the seat by lifting it straight up from the seat post.
4. Fold down the tiller.
5. Utilize the auto-latching lockup mechanism to separate the front frame section from the rear drive section. This typically involves a lever or button release.
6. Disconnect the front-to-rear cable.
7. The scooter is now in five manageable pieces, ready for transport in a car trunk or for airline travel.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your scooter.

• Cleaning: Wipe down the scooter regularly with a damp cloth. Avoid using harsh chemicals or excessive water.
• Battery Care: Keep the battery charged. Store the scooter with a full charge if it will not be used for an extended period.
• Tires: The scooter uses solid wheels, which require minimal maintenance. Periodically check for debris or damage.
• Connections: Ensure all electrical connections and mechanical fasteners are secure.
• Professional Inspection: It is recommended to have your scooter inspected by an authorized service technician annually.

Troubleshooting

If you encounter issues with your scooter, refer to the following common troubleshooting steps:

• Scooter not turning on: Check if the key is fully inserted and turned to the 'ON' position. Ensure the battery pack is properly installed and charged.
• Scooter not moving: Verify the throttle lever is engaged. Check if the speed adjustment dial is set to a minimum speed. Ensure the battery has sufficient charge.
• Reduced range or power: This often indicates a low battery charge. Fully charge the battery. If the issue persists, the battery may need replacement.
• Unusual noises: Turn off the scooter immediately and inspect for any loose parts or obstructions. Contact support if the noise persists.

For issues not resolved by these steps, contact Pride Mobility customer support.

Specifications

Warranty

Your Pride Go-Go Ultra X SC44X scooter comes with a 1-Year In Home Pride Mobility Labor Extended Warranty. This warranty covers manufacturing defects and labor for repairs performed in your home by an authorized technician for one year from the date of purchase.

For specific terms, conditions, and to register your product, please refer to the warranty documentation included with your scooter or contact Pride Mobility directly.

Support

For technical assistance, parts, or service inquiries, please contact Pride Mobility customer support. Have your scooter's model number (SC44X) and serial number ready when contacting support.

You can find contact information for Pride Mobility on their official website or in the documentation provided with your scooter.
